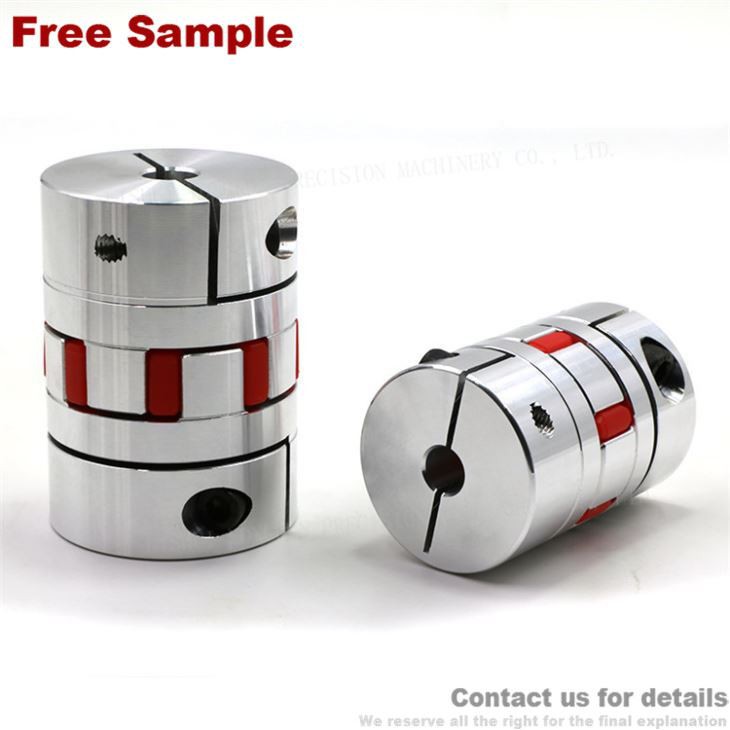

Curved Jaw Coupling‎

If you are willing to buy Plum-type Curved Jaw Coupling‎ from one of precision machinery manufacturers and suppliers in China, Youright Precision is always at your service. Welcome your enquiry to us and further business negotiations, let's creat a prosperous future together.

Enquiry OnlineSend an E-mailCustomer Satisfaction Show

  • Product Details

If you are willing to buy Plum-type Curved Jaw Coupling‎ from one of precision machinery manufacturers and suppliers in China, Youright Precision is always at your service. Welcome your enquiry to us and further business negotiations, let's creat a prosperous future together.



Company Advantage

OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.



Curved Jaw Coupling Model Available

Model No.

Aperture

D

L

d min

d max

JM-25C

4

12

25

34

JM-30C

6

16

30

35

JM-40C

10

24

40

66

JM-55C

12

28

55

78

JM-65C

14

38

65

90

JM-80C

24

45

80

114

JM-95C

30

55

95

126

JM-105C

35

60

105

140

Features

1.Coupling hubs made from high grade aluminum bar stock for precise fit, superior strength and bright finish;

2.Balanced hub design to support higher RPM with reduced vibration;

3.Polyurethane material of the spider dampens impulse loads while minimizing shock to the motor and other sensitive equipment;

4.Easy installation and maintenance, anti oil and corrosion resistant; customized size available upon request;

5.Considered fail safe because if the spider becomes compromised the jaws of the two hubs interlock for direct power transmission allowing the machine to be shut down safely.





Model No.

Aperture

D

 L

L1

L2

F

M

Tightening TorqueN.m)

d min

d max

JM-25C

4

12

25

34

11

12

5

M4

1.3

JM-30C

6

16

30

35

11

13

5

M4

1.7

JM-40C

10

24

40

66

25

16

10

M5

8

JM-55C

12

28

55

78

30

18

10.5

M6

8

JM-65C

14

38

65

90

35

20

11.5

M8

15

JM-80C

24

45

80

114

45

24

15.5

M8

15

JM-95C

30

55

95

126

50

26

18

M10

25

JM-105C

35

60

105

140

56

28

21

M12

35


Model No.

Rated torque(N.m)

Max torque

(N.m)

Max Rotational Frequency

 (rpm)

Moment of inertia

(kg.㎡)

Static Torsional Stiffness

(N.m/rad)

Errors of Eccentricity

(m.m)

Errors of Angularity

(*)

Errors of Shaft End-play

(mm)

Weight

 g

JM-25C

5

10

17000

6.7X10-4

55

0.02

1

+0.6, 0

37

JM-30C

7.4

14.8

12000

8.5X10-4

72

0.02

1

+0.6, 0

50

JM-40C

9.5

19

10000

1.1X10-3

550

0.02

1

+0.8, 0

156

JM-55C

34

68

8000

4.4X10-3

1500

0.02

1

+0.8,0

362

JM-65C

95

190

6000

9X10-3

2800

0.02

1

+0.8, 0

582

JM-80C

135

270

4600

1.8X10-2

3500

0.02

1

+1.0, 0

966

JM-95C

230

460

3800

2X10-2

4600

0.02

1

+1.0, 0

1820

JM-105C

3/80

760

3400

3.2X10-2

5800

0.02

1

+1.0, 0

2430



Warranty Statement

The general warranty period is 12 months since the customers receive the goods, if any additional demand, we could extended it to satisfy your special interests.

Exhibition and Customers

展会图 Exhibition And Customers 产品描述_副本.jpg



Application Industries

The Curved Jaw Coupling‎ is widely used in CNC machines, electrical motors, Precision Lathe, Automated machinery, Robot, General industrial machinery, Automated machinery, Electronic machinery, Transportation machinery, Food Machinery, Industrial gearboxes, Pumps, Agricultural machinery, etc.

FAQ

1. Monthly Capacity: 120,000-140,000 pcs;

2. Material: V.T.A or as per the customers’ suggestion;

3. Lead time: around 7-12 days, pls confirm before order;

4. Incoterm: FOB, C&F, CIF;

5. Delivery Cost: Pls advise the port of destination and we could assist to check it for you; 6. Payment Term: T/T; L/C; PayPal; Alibaba Trade Assurance.


To find a Curved Jaw Coupling manufacturer in China, we will be your best choice. Please feel free to email us.



Hot Tags: curved jaw coupling‎, China, manufacturer, price, custom, Hiwin, made in China
