Linear Shaft Rod

Linear Shaft Rod is case hardened to HRC58-62 and suitable for use with linear bearings and linear ball bearings. Linear Shaft Rod provides the most consistent surface hardness and depth of hardness across a range of sizes, offering increased performance. The consistent dimensional tolerances along the entire length of the steel shafting maximize consistent bearing operation.

Enquiry OnlineSend an E-mailCustomer Satisfaction Show

  • Product Details

Linear Shaft Rod is case hardened to HRC58-62 and suitable for use with linear bearings and linear ball bearings. Linear Shaft Rod provides the most consistent surface hardness and depth of hardness across a range of sizes, offering increased performance. The consistent dimensional tolerances along the entire length of the steel shafting maximize consistent bearing operation.



Company Advantage

OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.

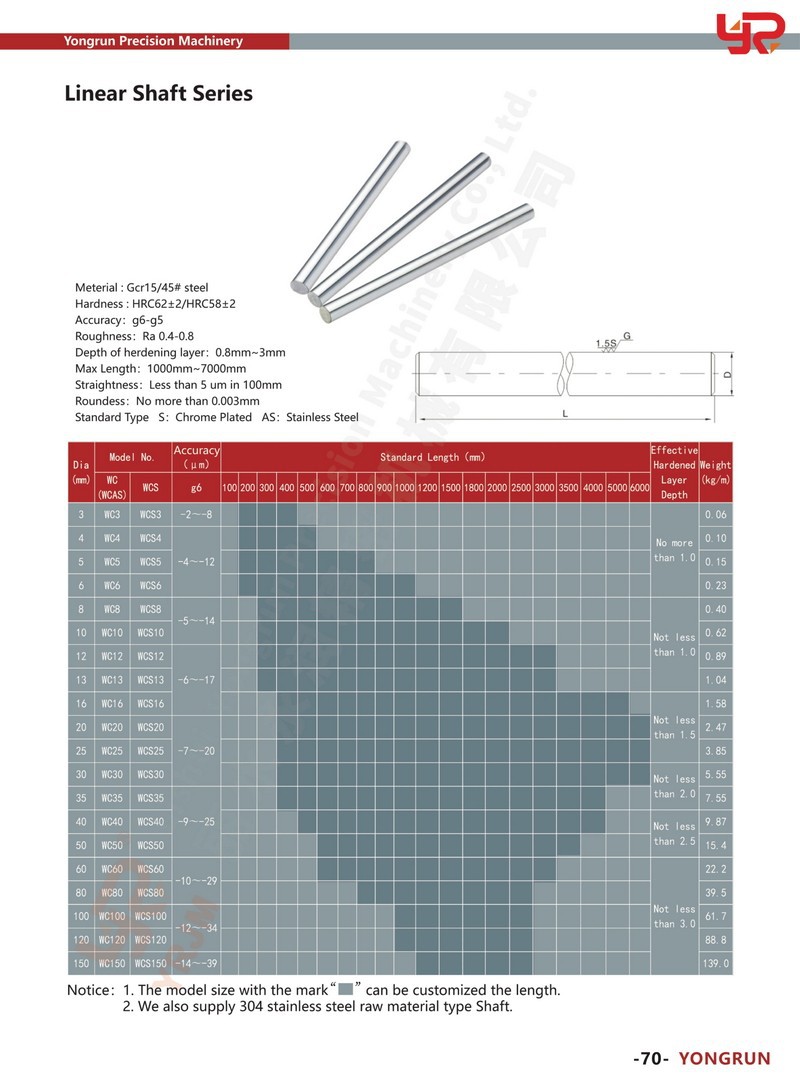

Details for Linear Shaft Rod

Product name

Linear Shaft Rod, Chrome Plated Linear Shaft, Linear Guide Rod

Diameter

3mm-150mm

Length

max length 6 meters, can be cut off according to customers' demands

Material

carbon steel, bearing steel Gcr15, stainless steel

Surface finish

harden chrome plated or none chrome

Plating thickness

10~20 μm in   radius

Hardness

HRC   58~62

Hardness depth

0.8~3mm

Roughness

less than 1.5 μm

Straightness

less than 5 μm in 100mm

Roughness

less than 3 μm

customized for

end stepped, end tapped, end thread, key grooved and so on

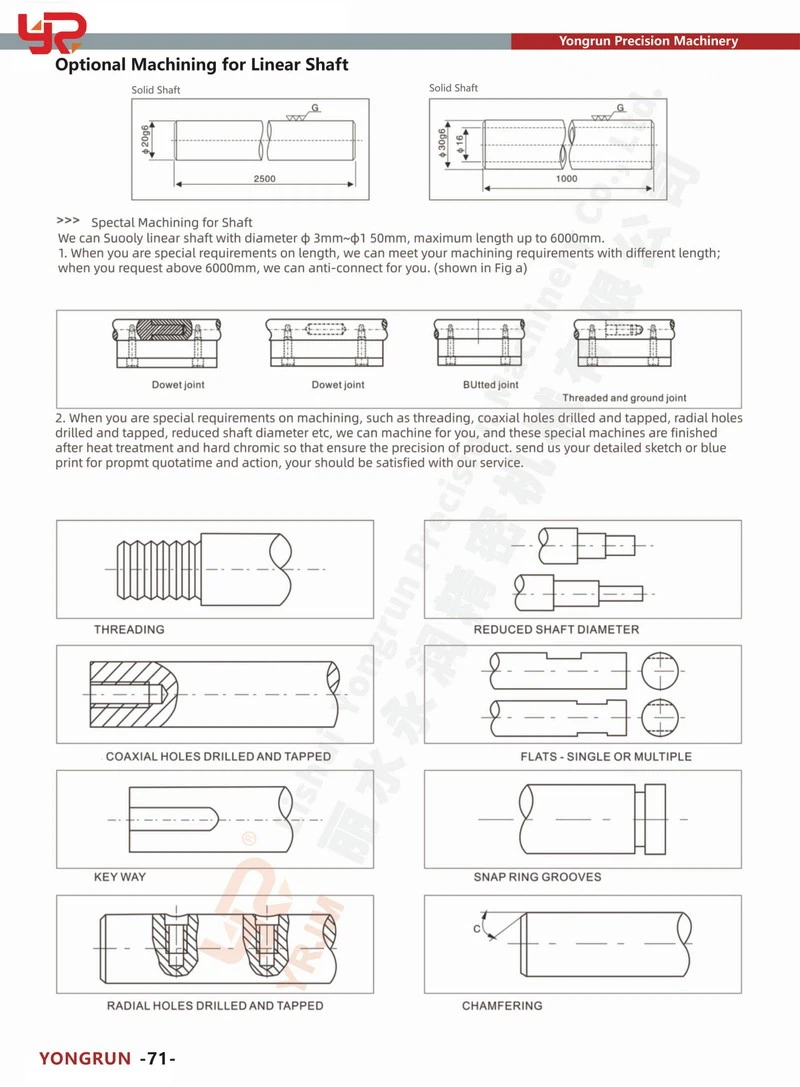

Special Machining for Linear Shaft

1.we can offer linear shaft with diameter5mm-150mm,maximum length up to 6000mm.

when you have special requirements on length, we can meet your machining requirement with different length,suach as when you request above 6000mm,we can anti-connect for you .


2.when you have special requirement on machining,such as threading,coaxial holes drilled and tapped,radial holes drilled and tapped, reduced linear shaft diameter etc,we can machine for you ,and these special machines finished after heat treatment and chromic which will ensure the precision of products.


Warranty Statement

The general warranty period is 12 months since the customers receive the goods, if any additional demand, we could extended it to satisfy your special interests.

Exhibition and Customers

展会图 Exhibition And Customers 产品描述_副本.jpg

Application Industries

The Linear Shaft Rod is widely used in automatic transmission, such as industrial robots, automatic observer,computer, precision printer, special cylinder rod,automatic plastic wood machine and other industrial automatic machine. Meanwhile according to its hardness, it will increase of the service life of common precision machine, etc.

FAQ

1. Production Capacity: 120,000-150,000m per month;

2. Material: Vendor to advise or your suggestion;

3. Delivery time: 8-12 days;

4. Incoterm: FOB, CFR, CIF;

5. Delivery Cost: Pls advise the destination port and we could assist to check it for you;

6. Payment Term: PayPal; T/T; L/C; Credit Card.



To find a Linear Shaft Rod manufacturer in China, we could be your best choice.
