Linear Slide Shaft

Welcome your interests to us for Linear Slide Shaft, Youright Precision is always at your service. Let's take a further business negotiations and creat a prosperous future together.

Enquiry OnlineChat NowSend an E-mailCustomer Satisfaction Show

  • Product Details

Quality is Our Culture.

Welcome your interests to us for Linear Slide Shaft, Youright Precision is always at your service. Let's take a further business negotiations and creat a prosperous future together.



Company Advantage

We are OEM & ODM manufacturer with Plentiful stocks, we always provide Competitive price, Excellent quality, Precision processing, Pipelining assembly, 100% QC process, Fast and Safe shipping for all our customers.

Details for Linear Slide Shaft

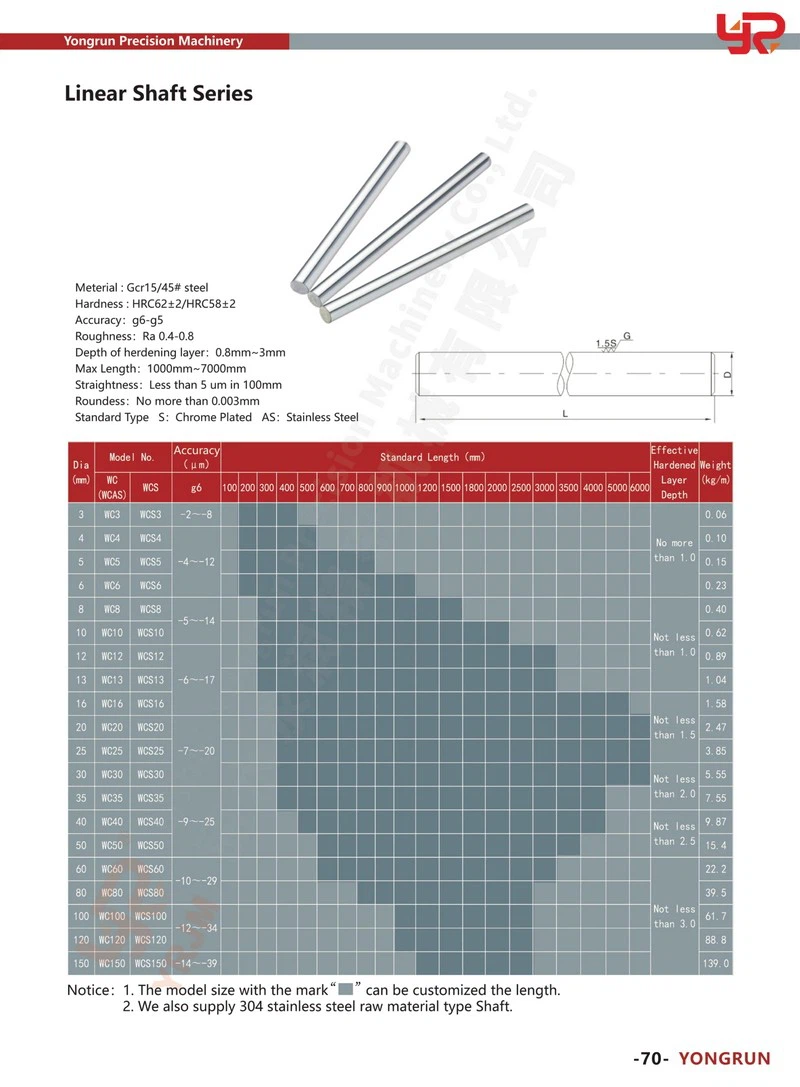

Stainless Steel Shaft S45C 3MM Steel Rod Price For Gear SF13

Material:45high quality carbon steel(S45C),hardness HRC58-60

GCr15 bearing steel(SUJ2),hardness above HRC60-62

9cr18 stainless steel (SUS440) ,hardness HRC55 above

The surface can be hard chrome plated

Features

1.Strict quality control system with perfect facilities;

2.Company production directly;
3.Rich stock and timely delivery;
4.High precision, duration, and reliability.



Special Machining for Linear Shaft

1.we can offer linear shaft with diameter5mm-150mm,maximum length up to 6000mm.

when you have special requirements on length, we can meet your machining requirement with different length,suach as when you request above 6000mm,we can anti-connect for you .


2.when you have special requirement on machining,such as threading,coaxial holes drilled and tapped,radial holes drilled and tapped, reduced linear shaft diameter etc,we can machine for you ,and these special machines finished after heat treatment and chromic which will ensure the precision of products.


Warranty Statement

It is 12 months after the customers receive the goods, if any special demand, Please advise us in time, we will serve with our best.

Exhibition and Customers

Application Industries

The Linear Slide Shaft is widely used in CNC machines, electrical motors, Precision Lathe, Automated machinery, Robot, General industrial machinery, Automated machinery, Electronic machinery, Transportation machinery, Food Machinery, industrial gearboxes, pumps, agricultural machinery, etc.
