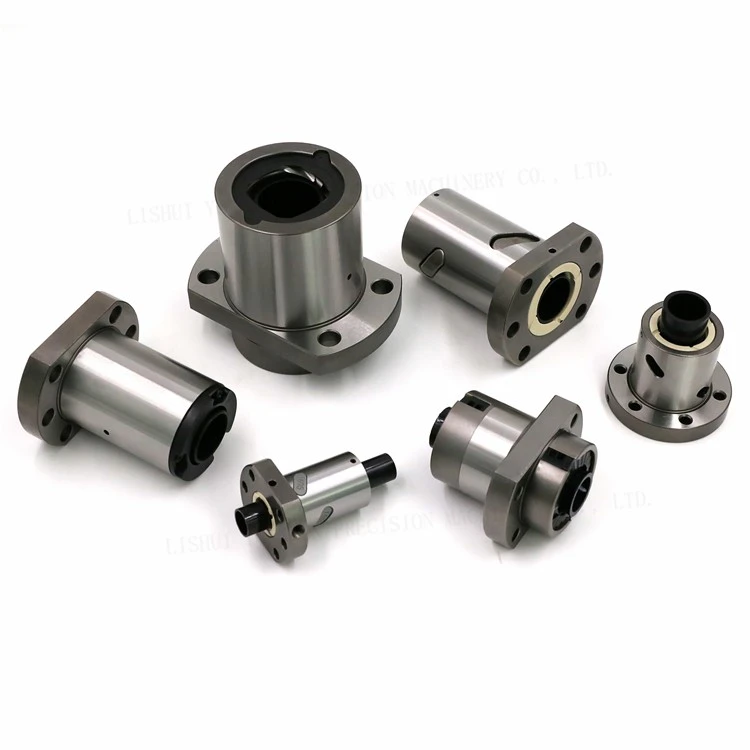

SFM Series Ball Screw

Internal-Circulation Ball Screw for Milling, Machine Tools and Precision Linear Motion

The SFM Series Ball Screw is designed for applications that require compact construction, smooth rotary-to-linear motion, controlled friction and reliable positioning performance. Its internal ball circulation system keeps the recirculation mechanism within the nut, helping reduce the overall installation envelope and making the ball screw suitable for space-constrained machine designs.

SFM ball screws are available in precision rolled and precision ground configurations. Depending on the required accuracy, travel, load, speed and mounting conditions, the screw assembly can be specified for CNC milling machines, machine-tool feed axes, automated equipment and other precision linear-motion systems.

Parameter	SFM Series
Primary Design	Internal Ball Circulation
Typical Positioning	Milling, Machine Tools, Industrial Automation
Manufacturing Process	Precision Rolled or Precision Ground
Accuracy	Available according to model and specification
Nominal Diameter	Configurable; current product range supports 8–100 mm
Shaft Length	Custom length; up to 4000 mm subject to design
Thread Direction	Right-hand or left-hand, according to specification
Nut Configuration	Select according to current SFM drawing
Preload / Clearance	Available according to application requirements
End Machining	Standard or customer drawing
OEM / ODM	Available

product-800-1104

product-750-658

SFM Series: Sourcing & Engineering FAQ
1.Why choose the SFM Series?
The SFU and SFM series both provide high efficiency, but the SFM Series utilizes an internal-circulation design tailored for compact machine tools, milling heads, and automated equipment where space is restricted and high rigidity is required.
2.Do you offer both rolled and ground versions?
Yes. We provide cost-effective precision-rolled screws for standard automation, as well as high-precision ground screws for applications requiring tighter positioning tolerances.
3.Can you machine the shaft ends to fit our machine?
Yes. Our in-house CNC machining facility can customize shaft lengths and process journals to fit standard support units (such as BK/BF or EK/EF) or machine them to your proprietary CAD prints.
4.What details should I send for a fast quote?
To get a prompt and accurate quote, simply share your screw diameter, lead, stroke length, accuracy requirements, and a drawing of your shaft ends along with your required quantity.
5.Can you reproduce an existing worn-out screw?
Yes. If you are retrofitting or replacing a part, send us your technical drawing or ship a physical sample to our engineering department for verification and duplicate manufacturing.
6.Can you supply the complete motion assembly?
Yes. We supply complete, matched linear motion packages including the ball screw, support units, nut brackets, flexible couplings, and linear guide rails.
