1
Material：This series of motor mounting brackets is crafted from high-quality aluminum alloy with a black anodized finish.
2
Process: Each bracket undergoes precision slotting and punching processes to ensure accurate mounting hole positions and interface dimensions, delivering robust rigidity and stability.
3
Compatible Motor: Compatible with NEMA 23 and NEMA 34 stepper motors, as well as 60/80 series servo motors. Multiple specifications and models are available to accommodate diverse motor installation requirements.
-
Motor Mount Bracket
Material:Aluminum alloy Structure:Single-side Bracket Standard or Nonstandard:Standard Add to Inquiry -
Aluminum Stepper Motor Mounts
Type:motor mount bracket, motor bracket Material:Aluminum alloy Motor mount bracket Add to Inquiry -
Step Servo Motor Bracket
The Step Servo Motor Bracket is an indispensable mechanical component engineered for secure, Add to Inquiry -

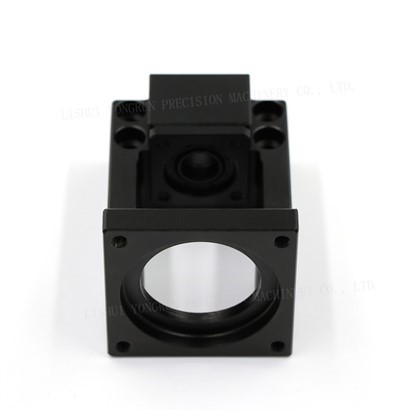

Ball Screw Motor Bracket
This specialized mount is far more than a simple bracket; it is a critical alignment feature Add to Inquiry -
Aluminum Alloy Motor Bracket
This component is crafted from aerospace-grade aluminum alloy, delivering a crucial combination of Add to Inquiry
FAQ
Q: What type of company is yours?
A: We are a manufacturer with our own factory.
Q: Where is your company located? Do you allow factory visits?
A: Our company is located in Lishui City, Zhejiang Province, China—a nationally renowned hub for linear motion products. We welcome you to visit and inspect our facilities.
Q: Do you provide samples?
A: We offer free samples for you to verify product quality.
Q: Do you offer customization for your products?
A: Yes, we provide OEM/ODM customization services.
Q: Can product packaging be customized?
A: Yes, we also offer product marking services.
Q: Do your products come with a warranty?
A: Yes, we provide a two-year extended warranty for our products.
Q: What certifications does your company hold?
A: We hold ISO9001 Quality Management System certification and CE certification.
Q: What is the minimum order quantity?
A: Minimum order quantity is one piece.
Q: What is the delivery lead time?
A: Small batch orders ship within 3–7 days. Large batch orders typically ship within 7–30 days.
Q: What payment methods do you accept?
A: We accept PayPal, wire transfers, letters of credit, and other methods.
Q: What shipping options are available?
A: We offer diverse shipping channels including ocean freight, air freight, courier services, and postal mail.
Q: How long does it typically take to receive a response?
A: For product and pricing inquiries, we guarantee a response within 24 hours (often much faster).
A Stepper Motor/Servo Motor Mount is a specialized mounting component designed to rigidly and precisely integrate motion control actuators—specifically stepping motors and servo motors—into a machine's structure or a driven mechanism. Key features include durability, ease of installation, and adjustable mounting points to accommodate a range of applications in robotics, automation, and CNC machines.
The core function of this bracket is to ensure perfect mechanical alignment between the motor shaft and the load-side shaft. This alignment is absolutely crucial because both stepper and servo systems rely entirely on rotational precision to accurately achieve the desired linear or angular position.
A motor mount is a critical component that operates on the principle of rigid, self-centering fixation to maintain the integrity of the rotational axis and ensure accurate power transmission.
- Concentric Alignment: The precision-machined pilot bore is designed to automatically center the motor shaft relative to the bracket's main mounting axis. This is crucial for ensuring that the motor's rotational output is perfectly aligned with the input of the driven system (ee.g., a ball screw). This prevents damaging radial stress on the motor and actuator bearings.
- Reactive Torque Absorption: The mount's robust material and secure bolting are engineered to absorb the full reactive torque (the force that attempts to spin the motor body) generated by the motor during acceleration and deceleration. This ensures that the rigid machine frame manages this force, protecting the delicate internal motor and actuator bearings.
- Rigidity and Stability: By providing a non-flexible connection, the motor mount ensures that the high positional accuracy commanded by the servo or stepper drive system is faithfully translated to the mechanical system without any error caused by bracket deflection.
As one of the most professional motor bracket manufacturers and suppliers in China, we're featured by quality products and competitive price. Please rest assured to buy customized motor bracket made in China here from our factory. Contact us for free sample.
