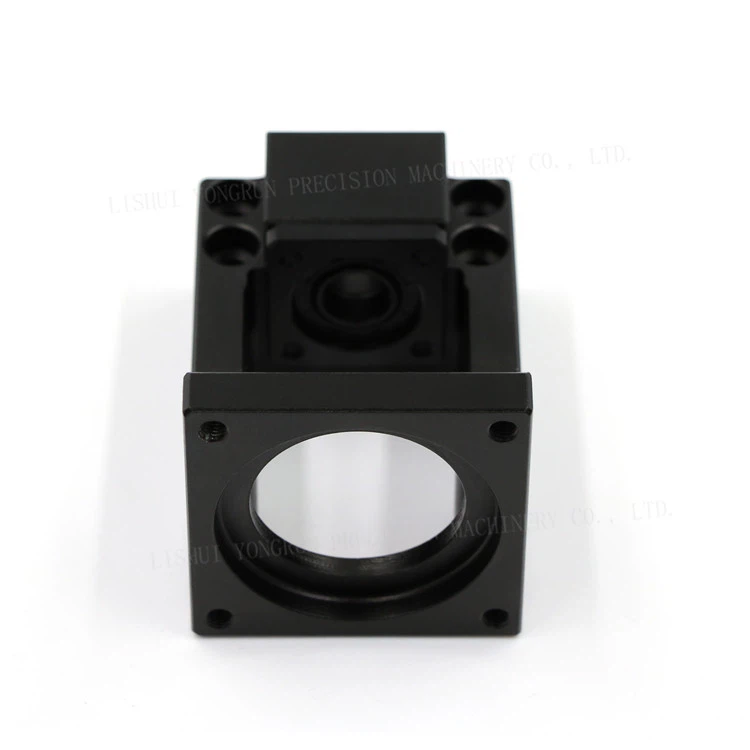

Aluminum Alloy Motor Bracket

BC15ZC Motor Bracket

Product descriptions

This component is crafted from aerospace-grade aluminum alloy, delivering a crucial combination of high rigidity and exceptionally low mass. This makes it the superior choice for dynamic applications where weight reduction is a necessity without compromising performance or stability.

The Engineered Balance:

The bracket serves as a fundamental mechanical component whose primary function is to anchor the motor while guaranteeing precise alignment with the driven part. By providing an unyielding foundation, the bracket ensures:

Maximized Efficiency: All motor power is translated directly and efficiently into motion.
Extended Service Life: Prevention of misalignment-induced wear on couplings, bearings, and seals.
Optimized Dynamics: The low-mass design minimizes system inertia, enhancing motor response and reducing energy consumption.

Choose this Precision Aluminum Alloy Bracket to build an unshakeable, lightweight foundation that elevates the overall performance and service life of your entire motion system.

Key Features and Advantages

1. Optimized Strength-to-Weight Ratio

Constructed from aerospace-grade aluminum alloy, the bracket provides the necessary structural rigidity to prevent motor shifting under dynamic loads while simultaneously minimizing overall system weight and inertia. This balance is crucial for improving motor response, acceleration rates, and overall energy efficiency.


2. Guaranteed Precision Alignment

The bracket features an accurately machined motor-facing plate and centering bore, ensuring the motor's output shaft is held in perfect, unyielding alignment with the connecting load. This fundamental precision drastically reduces destructive wear on couplings, seals, and connected bearings.


3. Enhanced Thermal Management

Aluminum's high thermal conductivity ensures excellent heat dissipation. The bracket efficiently draws heat away from the motor's mounting face, contributing to cooler, more stable operation and ultimately extending the motor's service life.


4. Superior Environmental Resilience

Leveraging the natural properties of aluminum, often enhanced by an anodized finish, the bracket provides excellent resistance to rust and corrosion. This ensures durable, reliable performance across diverse and challenging operating environments.


5. Universal, Standardized Compatibility

Our brackets are available in a wide range of standardized frame sizes (e.g., NEMA 17, 23, 34, and various servo motor equivalents). This dimensional consistency guarantees quick, easy, and universal integration into virtually any new or existing motion control system.


6. Passive Vibration Dampening

The robust material and construction actively help to absorb and dampen a significant portion of the motor's operational vibration before it can be transmitted to the sensitive machine structure, contributing to smoother operation and overall system stability.
