Linear Guide

Linear guide, also known as slide rail or linear slide, is primarily used to support and guide moving components in achieving high-precision reciprocating linear motion along a specific direction. The system consists of a fixed linear guide and a movable slider block, which contains rolling elements (such as balls or rollers) to ensure smooth and reliable motion accuracy even under heavy load conditions.

Linear bearings are indispensable components in mechanical transmission systems, crucial for achieving high-precision linear movement. They find extensive application across diverse fields such as automation equipment, precision instruments, and 3D printing, enabling smooth and accurate operation.

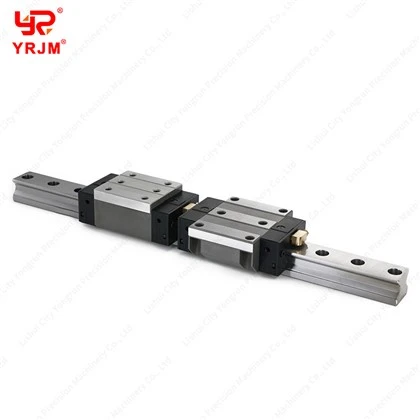

The linear rail, typically made of hardened steel, serves as a stationary mounting surface with a precision-ground running track. The carriage, which attaches directly to the load, travels along the rail and contains the rolling elements that recirculate to minimize friction. To optimize performance, the system is often preloaded, eliminating internal clearance and enhancing both rigidity and positioning accuracy.

Notable advantages of linear guideways include exceptional load-bearing capacity and stiffness, high accuracy and repeatability, and significantly reduced friction compared to sliding contact systems—resulting in lower energy consumption and less heat generation. Self-alignment features accommodate minor mounting misalignments, while integrated seals and wipers guard against contaminants. Certain designs are also adapted for harsh environments involving high temperatures or corrosion. Thanks to their preloaded recirculating design, these systems support unlimited stroke lengths, making them suitable for long-distance continuous operation.

As one of the most professional linear guide manufacturers and suppliers in China, we're featured by quality products and competitive price. Please rest assured to buy customized linear guide made in China here from our factory. Contact us for free sample.
