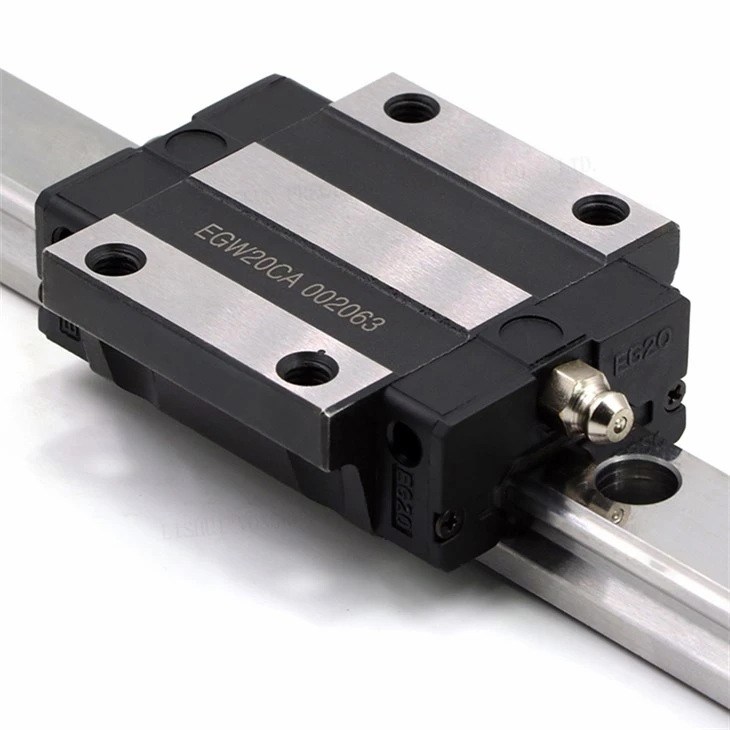

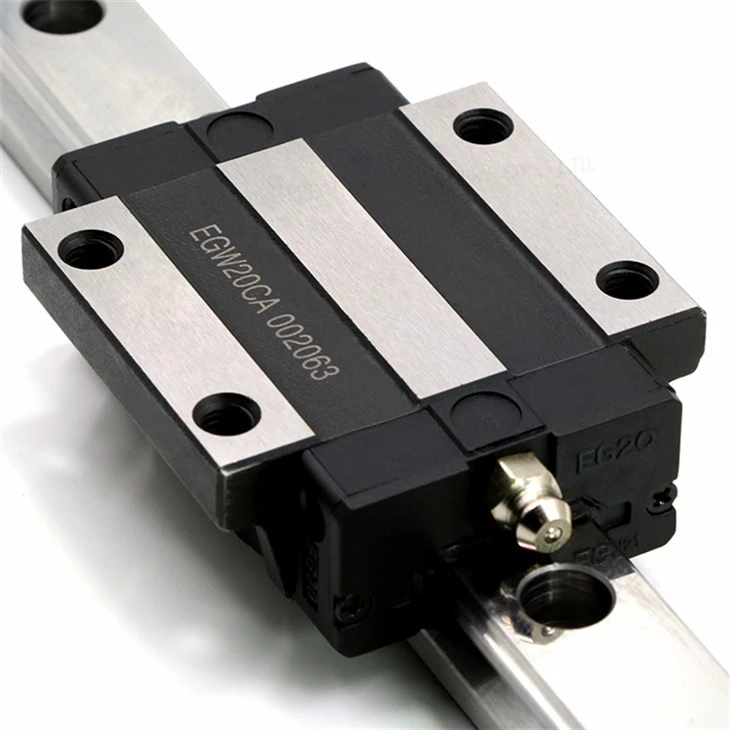

EGW Series Linear Guide

EGW Series Linear Guide

Product descriptions

The EGW Series is categorized as a Wide, Low-Profile Recirculating Ball Profiled Rail Guide. It is built upon the foundational technology of the standard EG Series, sharing the same 45-degree contact angle and low center of gravity.

Its primary functions include:

High Torsional and Moment Load Resistance: The increased width of the block significantly enhances the system's ability to resist torsional moment loads (forces attempting to twist the carriage around the axis of travel) and yaw moments.

Maintaining High Precision in Low-Height Applications: It provides highly accurate and repeatable linear movement for systems that must be compact (low height) but still handle wide, unbalanced loads or demanding dynamic forces.

Use in Single-Rail Systems: Due to its superior moment load capacity, the EGW series is often used in applications where space or alignment constraints permit only a single rail, relying on the block's width to provide stability.

The EGW Series is particularly well-suited for single-axis gantry systems, machines with wide-span carriages, and equipment in the semiconductor and flat-panel display industries.

Operating Principles

The EGW Series operates on the fundamental principle of high-rigidity rolling contact optimized for wide loads:

Moment Load Resistance: The wide base of the EGW block creates a significantly greater distance between the force application point and the guide rail. This wider base provides a much greater leverage arm to resist all moment loads, especially the twisting force (torque) around the axis of travel.

Rolling Recirculation: Like other profiled guides, the balls roll within the raceways. As they finish bearing the load, they are collected by the return path and guided back to the front of the circuit, providing continuous, smooth, and highly efficient linear travel.

Low Center of Gravity Stabilization: The low-profile design ensures that the load's center of gravity is closer to the machine bed, further enhancing the system's stability and rigidity, which is paramount when handling large, wide payloads.
