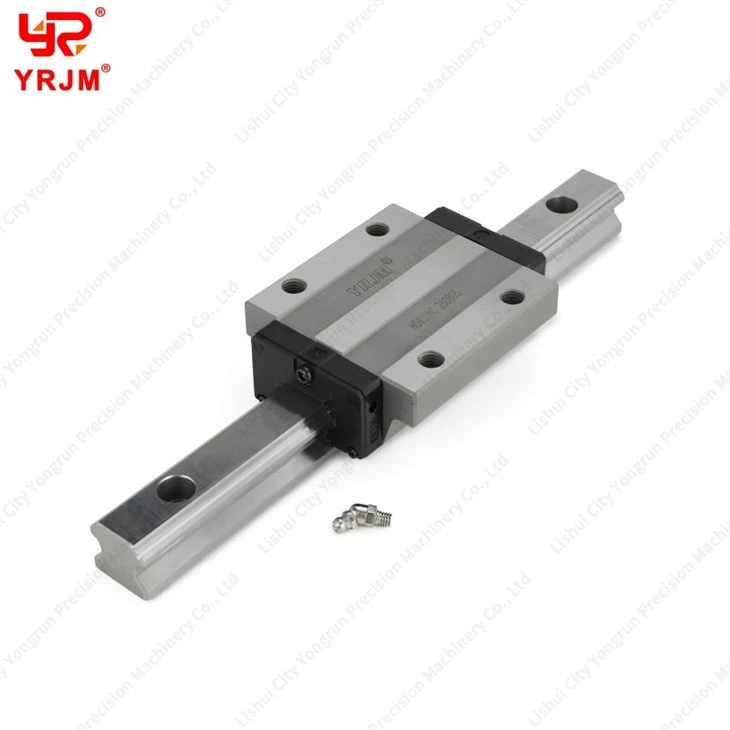

HGW15CC Linear Guide

HGW15CC Linear Guide

Product Description

The HGW15CC is a high-performance linear motion carriage from the renowned HG Series, engineered for applications requiring high precision and heavy load capacity. Featuring a flanged configuration, this block provides a wide mounting surface and exceptional structural stability, making it the ideal choice for heavy-duty worktables, gantry systems, and CNC machinery.

Product Features & Engineering Advantages
1.4-Way Equal Load Rating: Engineered with an optimized 45-degree contact angle, the HGW15CC handles equal load capacities in radial, reverse-radial, and lateral directions. This ensures consistent rigidity and stability regardless of whether the rail is mounted horizontally, vertically, or inverted.
2.Superior Self-Aligning Capability: Featuring a circular-arc groove design in a Face-to-Face (DF) configuration, the block can absorb minor installation errors or mounting surface irregularities. This elastic deformation ensures smooth, bind-free motion without sacrificing precision.
3.High-Stability Flange Design: The wide-profile flange provides an expanded mounting surface for more secure bolting to the carriage. This design maximizes structural integrity, making it the ideal choice for heavy-duty industrial worktables and gantry systems.
4.Precision Interchangeability: Due to strict dimensional control during manufacturing, all HGW15CC blocks are fully interchangeable with standard HGR15 rails. This allows for easy maintenance and component replacement while maintaining tight system tolerances.
5.High-Speed, Low-Friction Performance: An exceptionally low coefficient of friction enables rapid linear travel speeds. This efficiency minimizes heat generation and wear, extending the operational lifespan of both the block and the rail.
