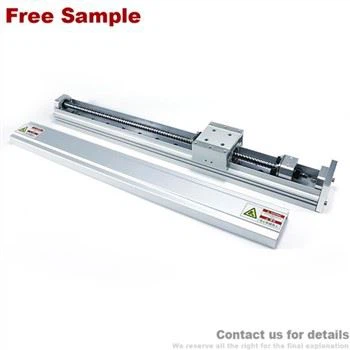

EGHS120F Linear Stage
Product Details
Single axis stage combines both ballscrew and guideway to achieve better performance on accuracy,stiffness, rapid installation, and space saving. The optimized U-rail no longer only guides the motion of the slider being pushed through the ballscrew, but also can be used as a structural component when assembled into a multi-axis motion system.
Single-axis robots, also called single-axis linear modules, electric sliding tables, etc., which is one kind of mechanical shape that can grant linear motion, and can whole more complex tasks through combination. The completion of the particular work also shows that the single-axis robot has developed very mature.
Features
The combination of a ball screw and linear guide makes possible simple installation, shorter alternative time, and longer provider life. The historically used linear platform gadget requires guides and choice of drive elements. It also needs repeated calibration and larger space.
Loads from all Directions
The contact face of ball and groove is designed to be 45° and can berth identical rated load of any type of installation, radially,reverse-radially or laterally.
High Rigidity
optimized U-Rail track design allows the tune to be lightweight and to display greater tension at cantilever load,in order to achieve a perfect balance between rigidity and volume.
High Accuracy, Saving Space
The variable loading helps achieve minimizing the frictional resistance damage. Therefore, pleasant a high accuracy demand. A combination of the nut with the slide makes house saving and an optimized allocation possible.
|

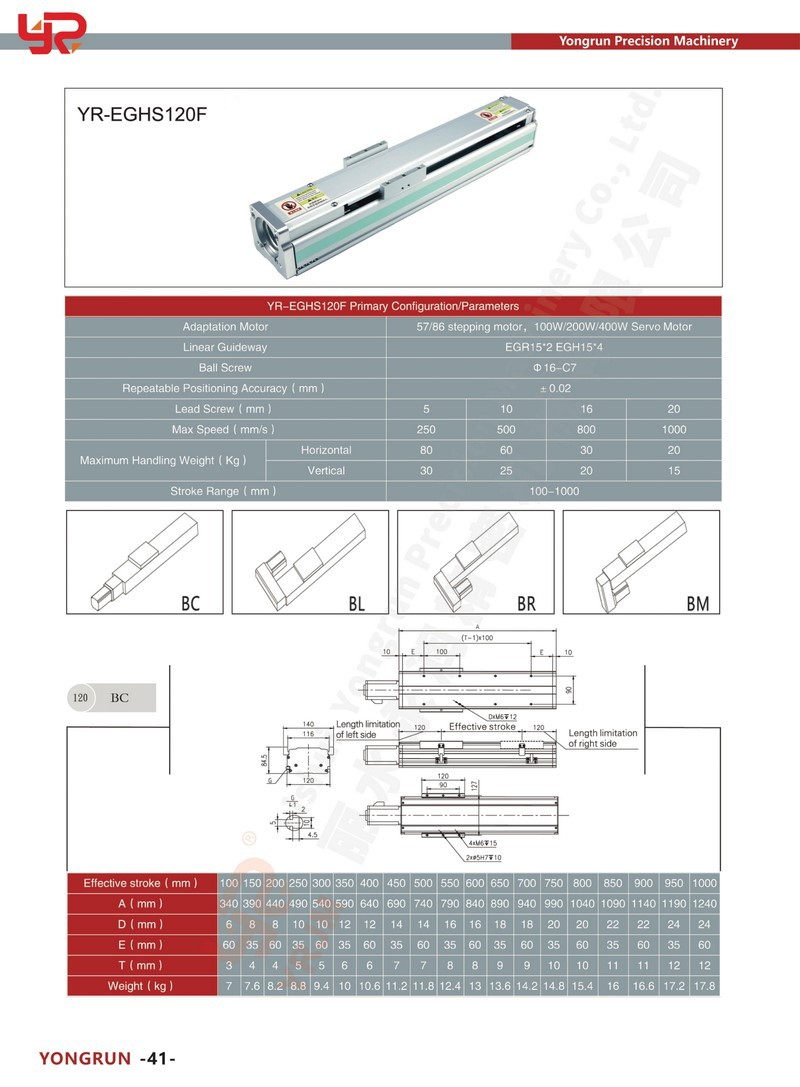

Product Information |
|
|
Product Name |
EGHS120F Linear Stage |
|
Material |
bearing steel guide, bearing steel aluminum base |
|
Stroke Range (mm) |
100-1000 |
|
Model No. |
YR-EGHS120F |
|
Maximum Payload |
Horizontal(kg): 80,60,30,20 Vertical(kg): 30,25,20,15 |
|
Positioning accuracy(mm) |
±0.02 |
|
Length |
Can be customized according to customers requirement |
|
Product Features |
Ease of maintenance, Low production cost, Long strokes, Multiple motor configurations, Quiet and smooth movement |
|
Our Services |
According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services. |
|
Product Package |
a. Plastic bag with box case or wooden case. We can provide shipping information to our customer at any time. |
|
Delivery Time |
3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation. |
