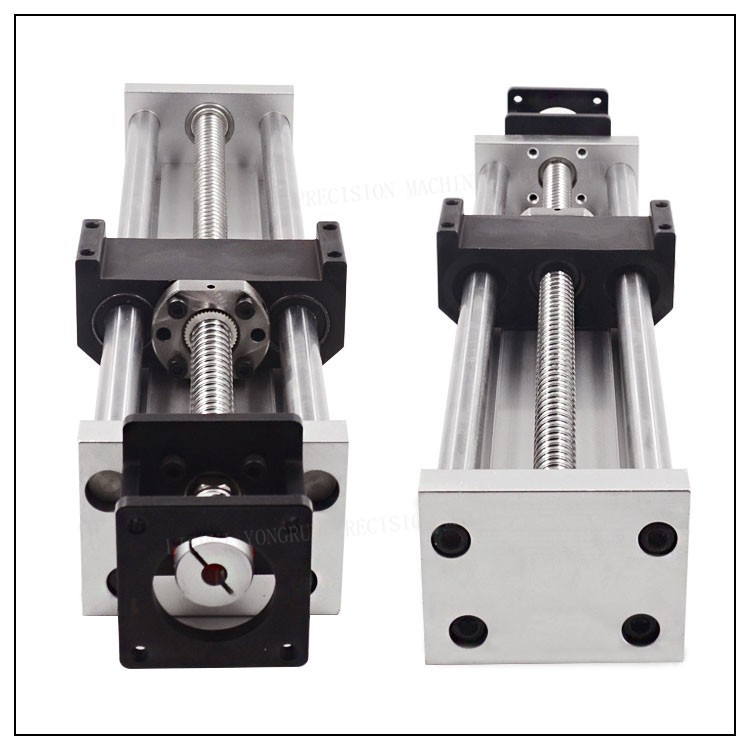

GZS90K Linear Stage
GZS90K Ball Screw Linear Stage
The GZS90K Linear Stage is a ball screw driven linear stage developed for industrial automation and linear positioning applications. It combines a ball screw transmission system with a linear guide structure to provide controlled and stable linear movement.
The standard GZS90K configuration features a 16-mm C7 ball screw with stroke lengths ranging from 100 to 800 mm. It supports a horizontal load of up to 30 kg and a side-mounted load of up to 30 kg, with four available screw lead options: 5 mm, 10 mm, 16 mm, and 20 mm.
The GZS90K is suitable for equipment manufacturers, automation integrators and industrial users who need a compact linear motion assembly that can be integrated into a larger machine or multi-axis motion system.
For applications requiring a customized mechanical configuration, Yongrun provides OEM and ODM support based on customer drawings, samples and equipment requirements.

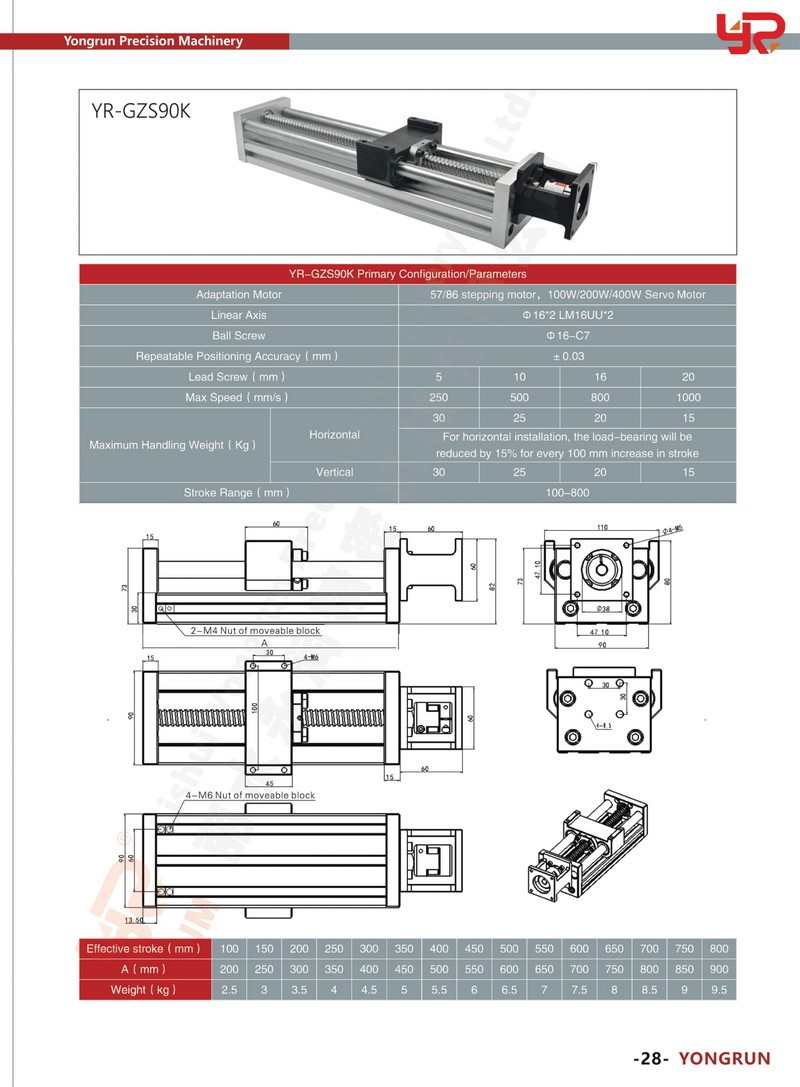

| Model | GZS90K |
| Product Type |
|
| Guide Rail Length | 100-800 mm |
| Ball Screw | Ø16 C7 |
| Horizontal Load | Up to 30 kg |
| Vertical Load | Up to 30 kg |
| Screw Pitch | 5 / 10 / 16 / 20 mm |
| Drive Type | Ball Screw |
| Customization | OEM / ODM Available |
| MOQ | 1 Piece |
Why Choose the GZS90K?
Ball Screw Driven Motion
The GZS90K uses a ball screw transmission system to convert rotary input into linear movement. This design is suitable for controlled motion and positioning applications where a ball screw based drive is preferred.
Multiple Screw Pitch Options
The GZS90K is available with 5 mm, 10 mm, 16 mm and 20 mm screw pitch options. Engineers can select the appropriate pitch according to the required motion characteristics and drive-system configuration.
Practical Load Capacity
The standard specification supports up to 30 kg horizontal load and 30 kg side-mounted load. Load direction and mounting arrangement should be evaluated when selecting the stage for a specific machine.
Compact Integration
The GZS90K is designed as an integrated linear motion assembly, helping equipment manufacturers incorporate linear movement into automation machinery without having to design every mechanical transmission component separately.
OEM and ODM Support
For non-standard applications, Yongrun can provide OEM and ODM customization according to customer requirements, technical drawings and samples.
