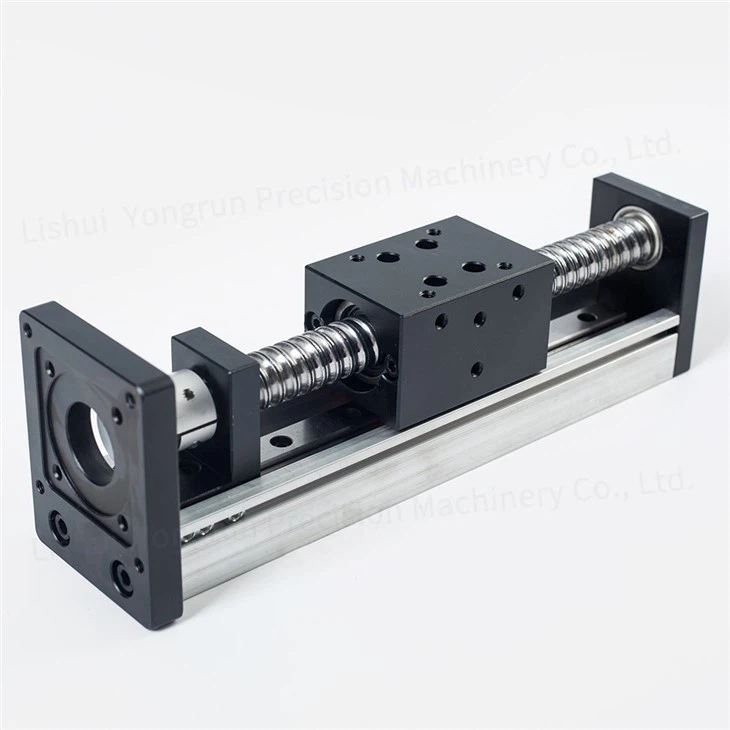

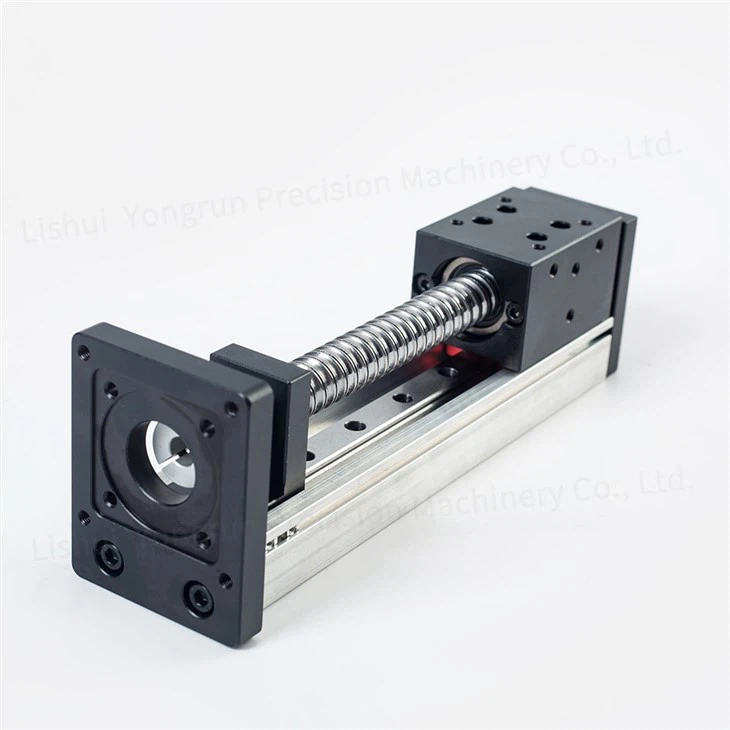

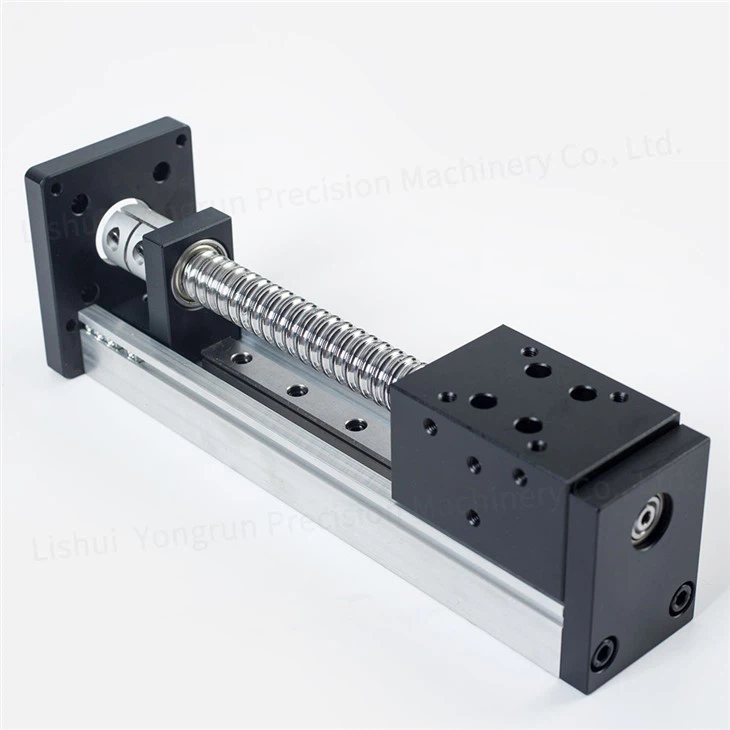

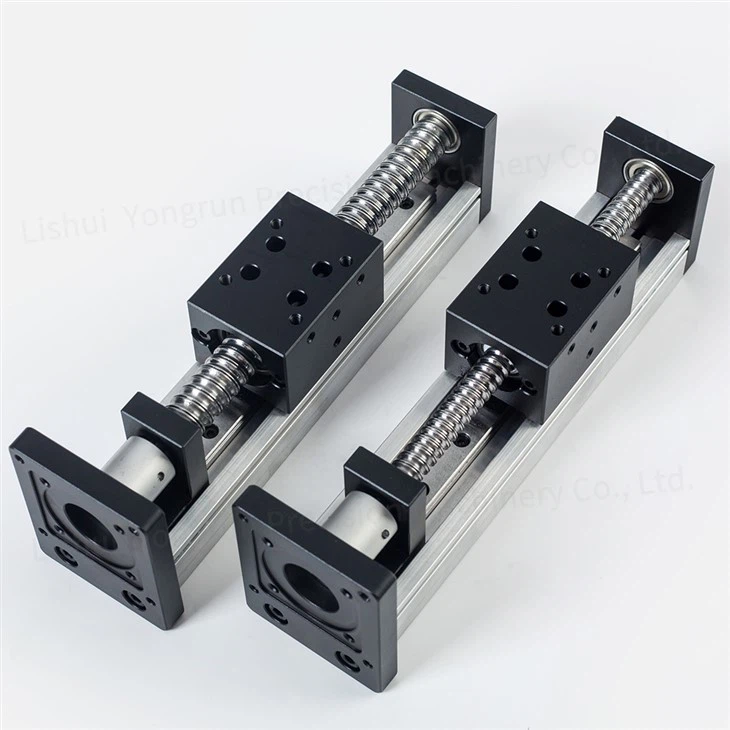

MGNS42K Linear Stage
Description
Linear stage is an important hardware equipment for industrial automation machinery, which can precisely manipulate the accuracy and pace of moving parts of mechanical equipment. The ball screw slide table is the most proper of all screw rods. Its standard overall performance is mainly primarily based on the operation and command of the laptop servo gadget used with it, so the operation is simple and effective, and it is no longer handy to make mistakes.
How a Ball Screw Actuator Works
The functionality of a ball screw actuator is based on a rolling-element conversion mechanism:
Screw and Nut: The actuator is composed of a threaded screw shaft and a nut that is machined with matching helical grooves.
Ball Bearings: The crucial element is the space between the screw and the nut, which is filled with ball bearings that roll freely within the helical grooves.
Motion Conversion: When the screw rotates, the ball bearings act as a rolling interface. They transfer the force to the nut, causing the nut (and any attached load) to be driven linearly along the screw shaft. This efficient rolling action is what minimizes friction and allows for precise movement.
|

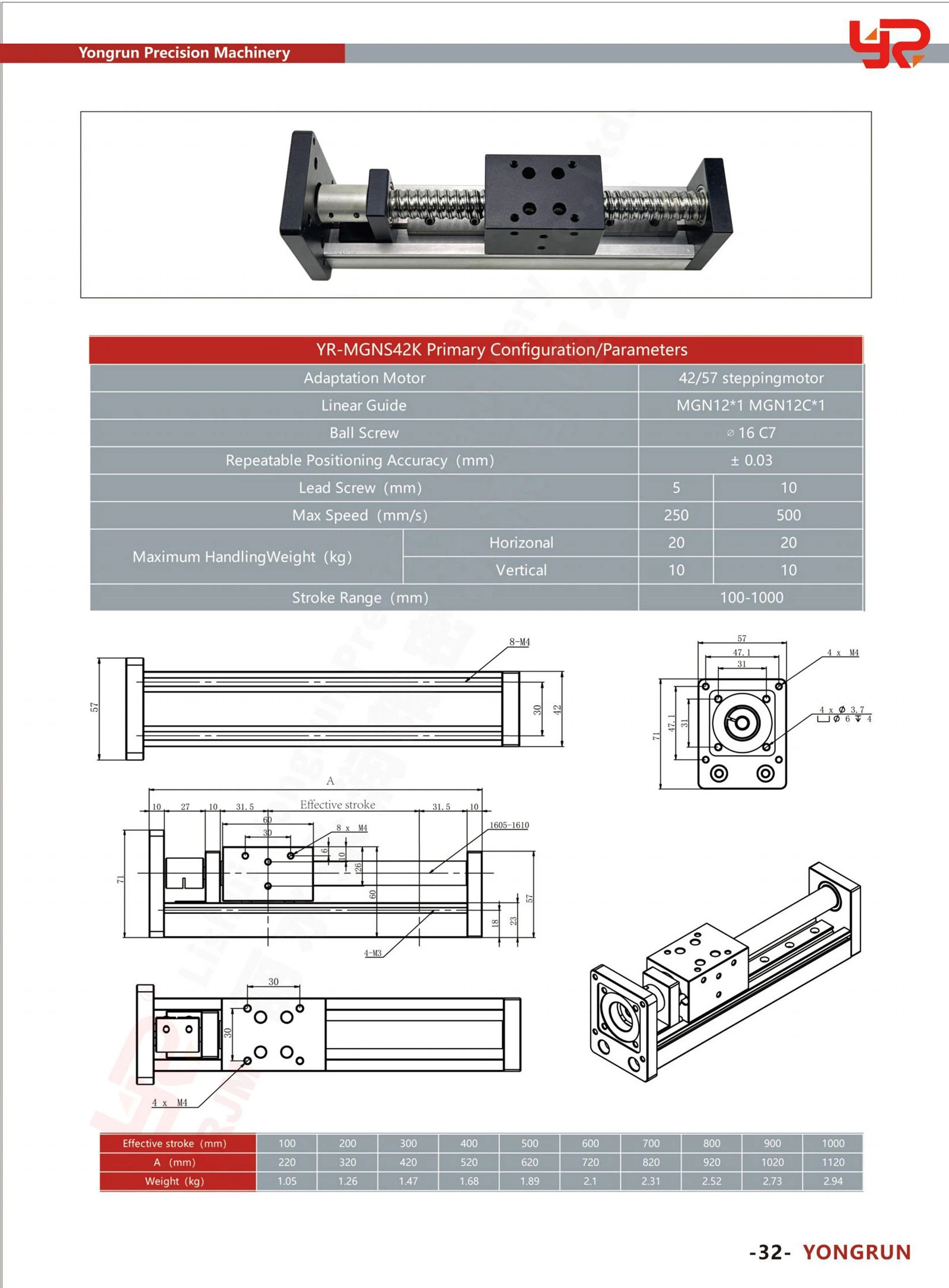

YR-linear stage Primary Configuration/Parameters |
|||||
|

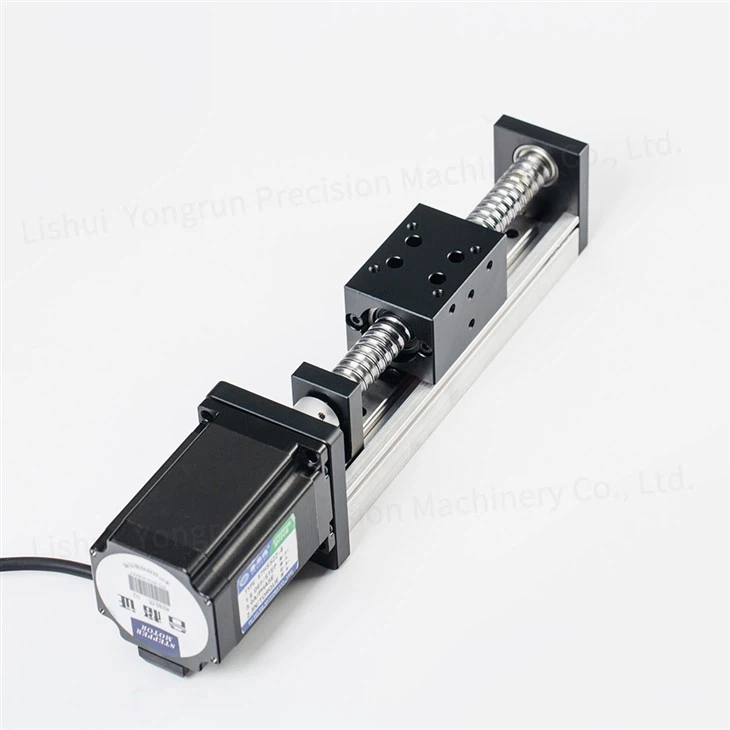

Adaptation Motor |
42/57 stepping motor |
||||
|
Linear Guideway |
MGN12*1 MGN12C*1 |
||||
|
Repeatable Positioning Accuracy( mm ) |
±0.03 |
||||
|
Lead Screw( mm) |
4
|
||||
|
Max Speed(mm/s) |
200
|
||||
|
Maximum Handling Weight( Kg) |
Horizontal |
20
|
|||
|
Vertical |
10
|
||||
|
Stroke Range( mm) |
100-1000 |
||||
Company Introduction
Lishui City Yongrun Precision Machinery Co., Ltd. is a professional manufacturer of linear motion systems and automation components, backed by many years of experience.
Our manufacturing facility is equipped with a modern production line and utilizes world-advanced drive structures to ensure the consistently high precision of all our products.
If you are looking to check the price of High Precision Linear Stage components in China, please feel free to contact us at any time.
Advantages
1) Over12 years professional experience
2) High quality assurance,CE,ISO,approved. European standard.
3) Competitive price, Trade Assuarance.
4) OEM Manufacturing, Sample orders welcome.
5) We will reply your inquiry in 24 hours. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way
