TBR20
Product Details

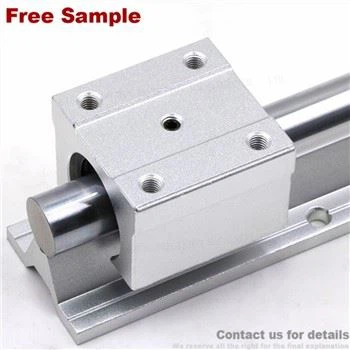

Linear round guide supported by a rail and a shaft, the surface of linear shaft used to be mainly grinded, hard-chromium plated and replicate polished. It has good wear resistance and corrosion resistance. It's broadly used in computerized transmission device, appropriate for all kinds of cylinder, piston rod, packaging, woodworking, textile, printing and dyeing machinery, die-casting machine, injection molding machine, and one of a kind equipment with guide rod, plunger.
Product Description
SBR/TBR linear slider guide rail collection guide rail is a variety of rolling guide rail. Rolling steel balls make limitless stroke reciprocating action between the slider and the guide rail. The load platform can effortlessly pass linearly with high precision alongside the track. Compared with the traditional machine device guide, the friction coefficient of the rolling guide can be reduced to 1/50 of the original. Because the beginning friction is greatly reduced, the prevalence of ineffective motion is relatively reduced, so high-precision feeding and positioning can be achieved. Therefore, it can cooperate with the ball screw and use the linear guide as the guide, which will greatly improve the accuracy and mechanical effectivity of the equipment.
| Model No. | Shaft Dia. | Dimensions(mm) | Weight (kg/m) |
||||||||
| E | h | B | H | T | F | C | S1 | S2 | |||
| TBR20 | Φ20 | 27.5 | 29.01 | 55 | 19.37 | 8 | 18.96 | 40 | Φ5.5 | 5.5X9.5X5.4 | 4.3 |
|
Product Information |
|
|
Product Name |
TBR20 |
|
Material |
Carbon steel or bearing steel |
|
Length |
Can be customized according to customers requirement |
|
Feature |
Smooth, Good Quality, Long Life, Resistance to Wear, Dependable Performance, High Precision |
|
Model No. |
TBR16, TBR20, TBR25, TBR30 |
|
Our Services |
According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services. |
|
Product Package |
a. Plastic bag with box case or wooden case. We can provide shipping information to our customer at any time. |
|
Delivery Time |
3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation. |
