BK20/BF20 Ball Screw Support

BK20/BF20 Ball Screw Support

Product descriptions

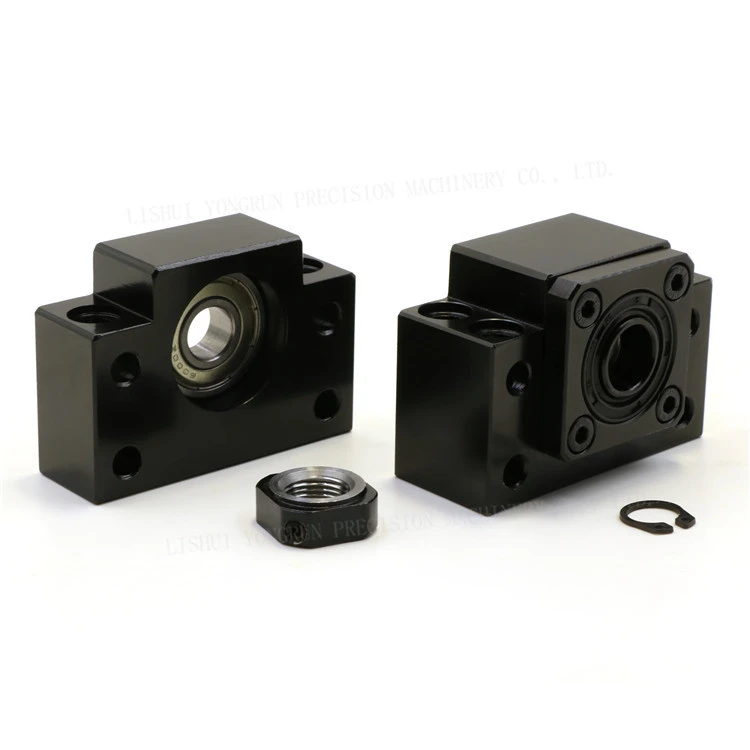

The BK20/BF20 support set provides the essential "Fixed-Floated" mounting architecture required for heavy-duty 25mm ball screw systems. Manufactured from precision-machined carbon steel and finished with a protective black oxide coating, these units are engineered to maintain structural integrity under extreme industrial loads.


• The Fixed End (BK20): Motor-Side Anchor

Positioned at the drive end of the axis, the BK20 serves as the primary structural anchor. It houses a matched pair of preloaded Angular Contact Bearings designed to withstand the intense bi-directional thrust loads generated by high-torque servo motors. Secured by a precision-ground M20 lock nut, this assembly eliminates axial play and "lost motion," ensuring instantaneous response during direction reversals.

• The Floating End (BF20): Thermal Expansion Support

Positioned at the distal end, the BF20 houses a high-quality radial bearing engineered for axial freedom. This "floating" design allows the 25mm shaft to expand and contract linearly as it generates frictional heat during high-speed operation. By accommodating this thermal growth, the BF20 prevents shaft buckling and bowing, preserving positional accuracy and significantly extending the service life of your linear rails.

Our Competitive Advantages
1.Direct Factory Manufacturing: As a direct manufacturer with our own production facilities, we provide highly competitive factory pricing and secure trade assurances for every order.
2.Uncompromising Quality Control: We implement a rigorous 100% pre-shipment inspection process to ensure that every component meets our strict standards for precision and reliability.
3.Comprehensive OEM/ODM Solutions: We fully support OEM and ODM customization, including custom marking and packaging.
4.Complimentary Sampling: We offer free samples to allow for quality verification prior to bulk purchasing (shipping costs are to be covered by the customer).
5.Rapid Fulfillment: We maintain an extensive inventory across our entire product range, ensuring immediate availability and fast turnaround times for your projects.
