Product descriptions

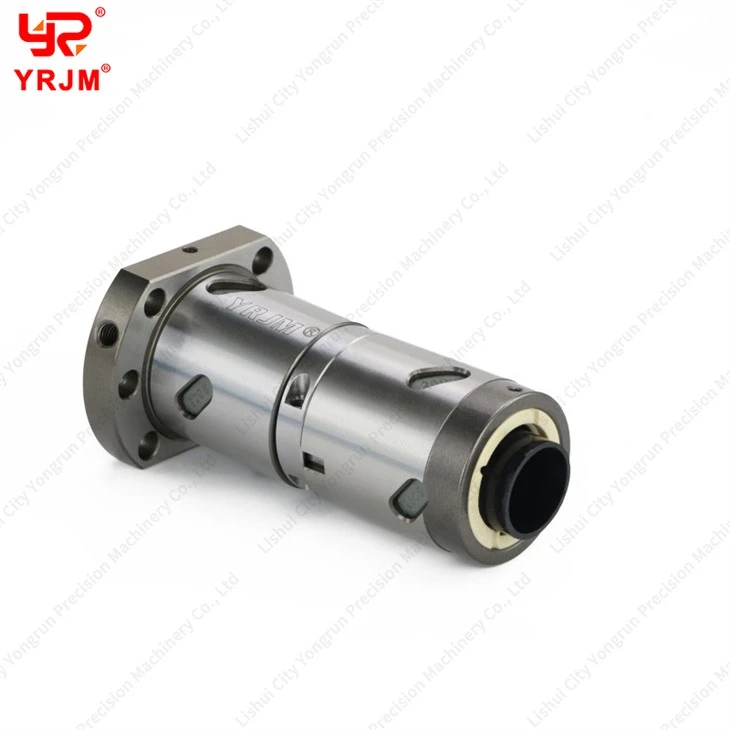

The DFU Series Linear Screw (often designated as DFU Ball Screw or DFU Double Nut) is one of the most common and widely recognized models in high-precision ball screw technology. It is a benchmark product focusing on maximum axial rigidity, zero backlash, and high load capacity.

This DFU Series is a heavy-duty, high-precision ball screw designed for demanding industrial applications like CNC machines and automation. It is defined by its double-nut design, which provides high rigidity, high load capacity, and exceptional accuracy while simultaneously minimizing backlash.

Key features include a compact structure often utilizing an internal circulation design, ensuring a long service life and high stability. It is available with options for various precision grades, such as C7, C5, and C3.

Key Features

Maximum Backlash Elimination: The use of two ball nuts on the same screw, which are precisely preloaded against each other, is the most common method to completely eliminate backlash (axial play) in the assembly.

High Axial Rigidity: The double-nut assembly significantly increases the contact points between the balls and the raceways, which boosts the axial stiffness (rigidity along the axis of travel). This is crucial for resisting external axial forces and maintaining accuracy under load.

High Load Capacity: The design effectively utilizes two sets of circulating balls, distributing the load across a greater number of rolling elements. This dramatically increases the overall dynamic and static load ratings.
