Product Description

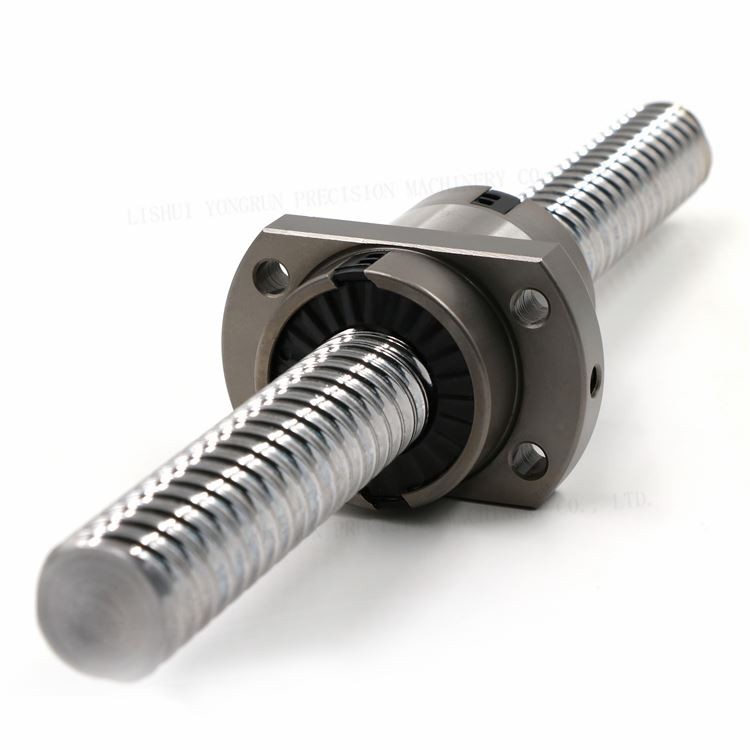

The SFY2020 Ball Screw is a high-performance linear drive component specifically engineered for industrial applications that demand ultra-high linear velocities alongside exceptional resistance to harsh environments.

Part of the "High-Lead" series, the SFY2020 features a "square" 1:1 configuration, pairing a rigid 20mm nominal diameter with a steep 20mm lead. This geometry allows the nut to travel a full 20mm per single 360-degree rotation of the screw. By achieving rapid traverse speeds at lower motor RPMs, the SFY2020 minimizes centrifugal forces, vibration, and heat generation.

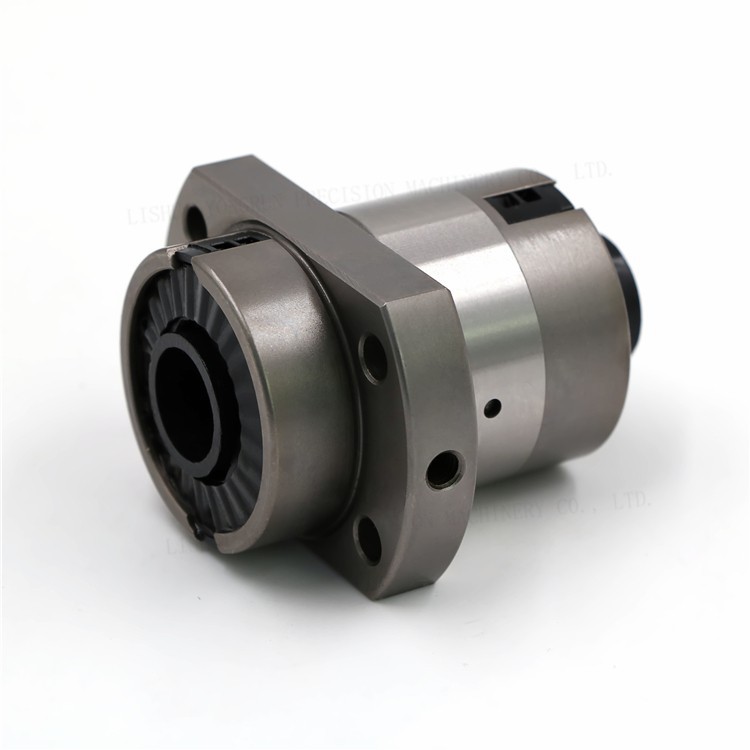

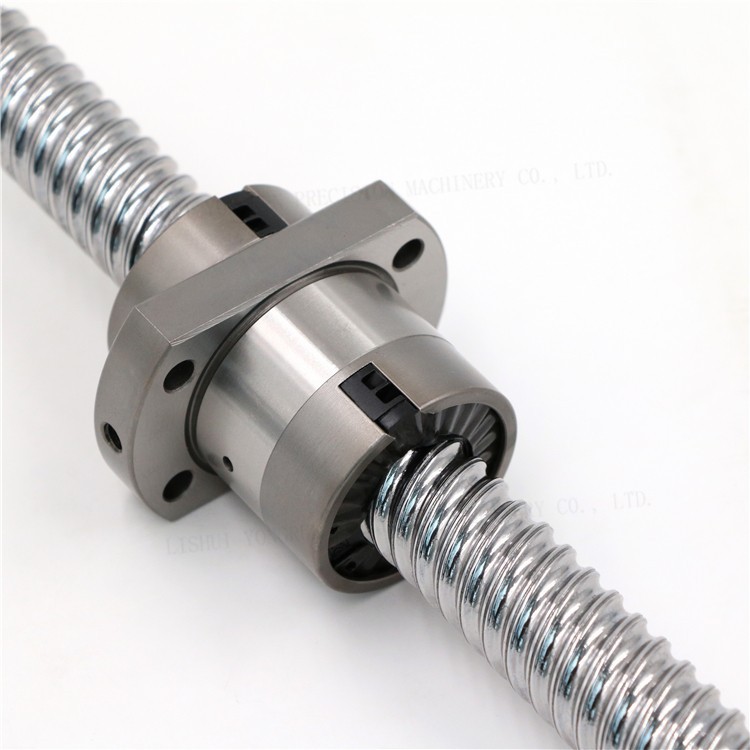

What truly sets the SFY2020 apart is its specialized "Y-Type" nut. Equipped with an internal end-cap circulation system for quiet operation, it features a reinforced wiping and sealing mechanism designed to conquer heavily contaminated settings. This robust protection blocks dust, grit, and debris, allowing your machine to operate at maximum speed without the risk of premature failure. It is the ultimate actuator for CNC routers, plasma tables, laser cutters, and high-throughput automation.

Mechanical Advantages of the SFY2020
The SFY2020 offers three distinct mechanical advantages over standard ball screws, making it uniquely suited for high-speed, demanding environments:
1.Extreme Velocity at Safe RPMs:
With a steep 20mm lead, a motor spinning at just 1500 RPM drives the carriage at 30 meters per minute. This 1:1 diameter-to-lead ratio allows the system to achieve belt-drive-like speeds while maintaining the rigidity and axial thrust of a steel screw. Crucially, it achieves these speeds while keeping the shaft well below its critical speed limits, preventing vibration and "whip."
2.The "Y-Type" Industrial Armor:
At speeds of 30m/min, standard plastic wipers can deform or "hydroplane" over fine dust, drawing it into the ball tracks. The SFY series features a stiffened, reinforced wiper mechanism designed to aggressively scrape the fast-spinning threads clean. This effectively excludes sawdust, laser soot, and metal grit from the ball circuits, drastically extending the L10 service life of the unit in harsh environments.
3.Silent End-Cap Circulation:
By routing the ball bearings tangentially through internal end-caps rather than external tubes, the SFY2020 operates with a smooth, low-decibel hum even at high velocities. This internal routing also minimizes the nut's external profile, allowing it to fit seamlessly into tight gantry housings and compact machine designs.
