SFY3232 Ball Screw

SFY3232 Ball Screw

Product descriptions

In heavy-duty industrial automation, driving a massive gantry across a long machine bed requires extreme linear speed to maximize factory throughput. However, operating at high velocities in environments filled with abrasive sawdust, plasma grit, or stone slurry will quickly destroy standard seals. The SFY3232 Ball Screw is the ultimate engineering solution to this harsh reality.

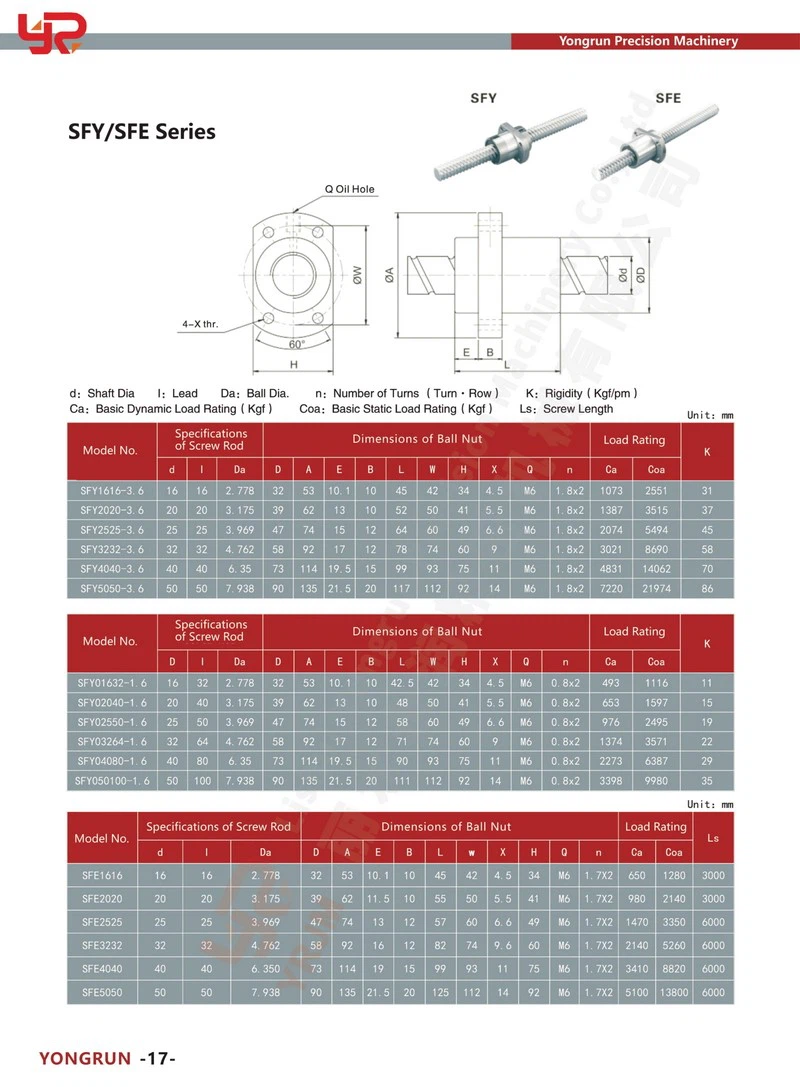

Part of the premium "High-Lead" series, the SFY3232 features a "square" configuration, pairing a rigid 32mm nominal diameter with an aggressive 32mm lead. This allows the nut to travel 32mm per revolution, achieving extreme travel speeds (>60m/min) at significantly lower motor RPMs. This mechanical advantage drastically reduces heat generation and centrifugal vibration ("shaft whip").

To survive in abrasive environments, the SFY3232 utilizes a specialized "Y-Type" nut equipped with a reinforced wiper system designed to aggressively block dust and slurry. Coupled with an internal end-cap circulation system for smooth, quiet operation, the SFY3232 is the definitive actuator for high-throughput automation, large CNC timber routers, stone cutters, and heavy plasma tables.

Product Components

1.Precision Screw Shaft: A robust 32mm diameter threaded rod. It is typically supplied with standard end-machining configured perfectly for BK25/BF25 bearing support units, ensuring hassle-free integration.

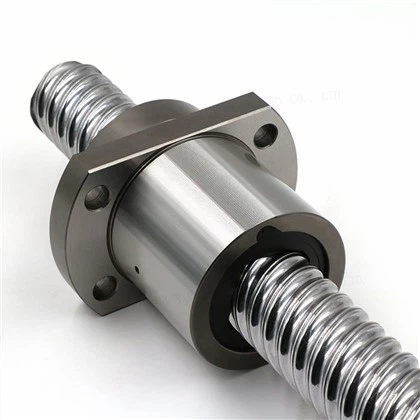

2.SFY Flanged Nut: The dynamic housing of the assembly, featuring a wide mounting flange with precision-tapped bolt holes to guarantee a rigid, secure attachment to the machine carriage.
3.Rolling Elements: Manufactured from high-grade chromium bearing steel, these precision balls provide exceptional load-carrying capacity and low-friction motion.
4.High-Speed Return System: Engineered with impact-resistant end caps specifically designed to withstand the intense centrifugal forces generated during ultra-fast ball recirculation.
5.Contaminant Wipers: Equipped with high-performance, dual-lip synthetic rubber seals at both ends of the nut. These aggressively block abrasive dust and slurry while effectively retaining internal lubrication.
