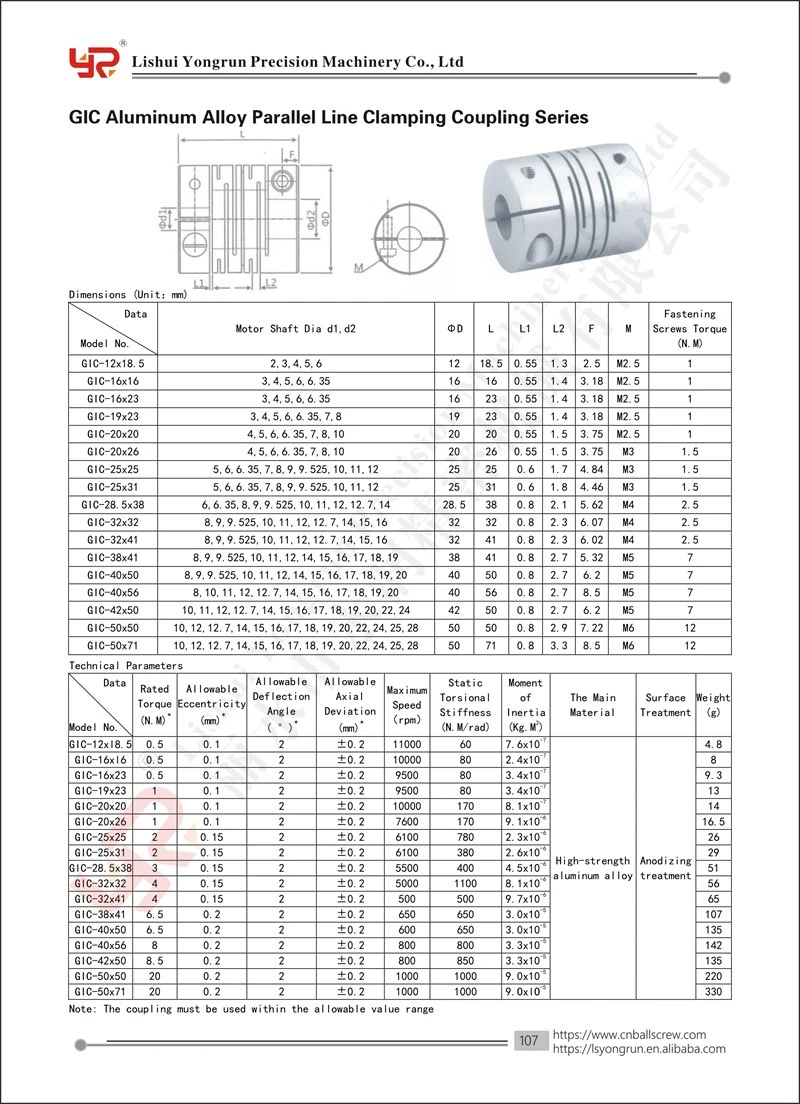

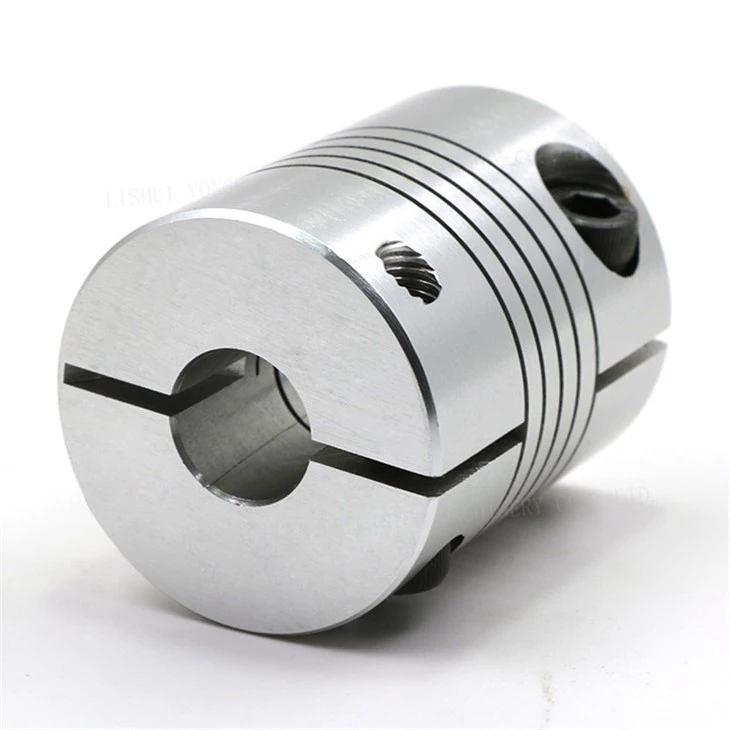

The GIC Parallel Line Clamping Coupling Series distinguishes itself as a highly specialized, single-piece component for precise, light-to-medium duty motion control. Unlike conventional two-piece assemblies, the GIC is machined entirely from a single block of high-strength aluminum alloy, guaranteeing inherent zero-backlash transmission.

Mechanical Innovation (Slit-Type Flexure):

The coupling's flexibility is achieved through advanced precision-machining. Multiple parallel slits are strategically cut along the body, forming highly flexible "beams" or leaf springs. This monolithic design allows the coupling to:

• Compensate for all three shaft misalignments (angular, parallel, and axial) without wear.
• Maintain high torsional stiffness for accurate synchronization.

Characterized by its integrated clamp hub, the GIC Series provides superior clamping force and positional integrity. It is the premier choice for connecting high-response stepper and servo motors to sensitive precision devices like encoders and light-load lead screws, where the integrity of a zero-backlash, single-piece link is paramount.

Operating Principles

The GIC Parallel Line Clamping Coupling operates on the principle of a flexural element integrated directly within a rigid structure. Its function is entirely mechanical, relying on the sophisticated geometry of its single-piece construction to achieve two conflicting goals: absolute torsional rigidity and flexible geometric compensation.

1. Torsional Rigidity and Torque Transmission
Since the coupling is machined from a single block of aluminum alloy, there are zero internal moving parts or mechanical interfaces-guaranteeing inherent zero backlash. When the motor shaft rotates, the material's shear strength ensures that the parallel "beams" transfer the torque instantly. The design is optimized for high torsional stiffness, meaning the coupling will not "wind up" under load, thus maintaining a perfect, synchronized relationship between the motor and the driven component.

2. Misalignment Compensation (The Flexural Element)
The parallel slits are the key to its flexibility. By creating thin "beams" or leaf springs between the slits, the coupling allows the two hub-ends to be displaced relative to each other.
Parallel & Angular Misalignment: The beams flex in a cantilever fashion, bending to absorb the offset.
Axial Misalignment: The beams expand or compress along the axis.
This controlled elastic deformation effectively absorbs the geometric error without inducing harmful side loads (reaction forces) on the connected motor and load bearings.

3. Clamping Integrity (Integrated Hub Mechanism)
The performance is anchored by the Integrated Clamp Hub. By tightening the single clamp screw, a powerful hoop stress is generated around the shaft. This creates a high-friction, uniform grip that eliminates any micro-movement or play between the coupling bore and the shaft. This secure, zero-backlash clamping method is critical for maintaining positional accuracy under dynamic operating conditions.
