Product descriptions

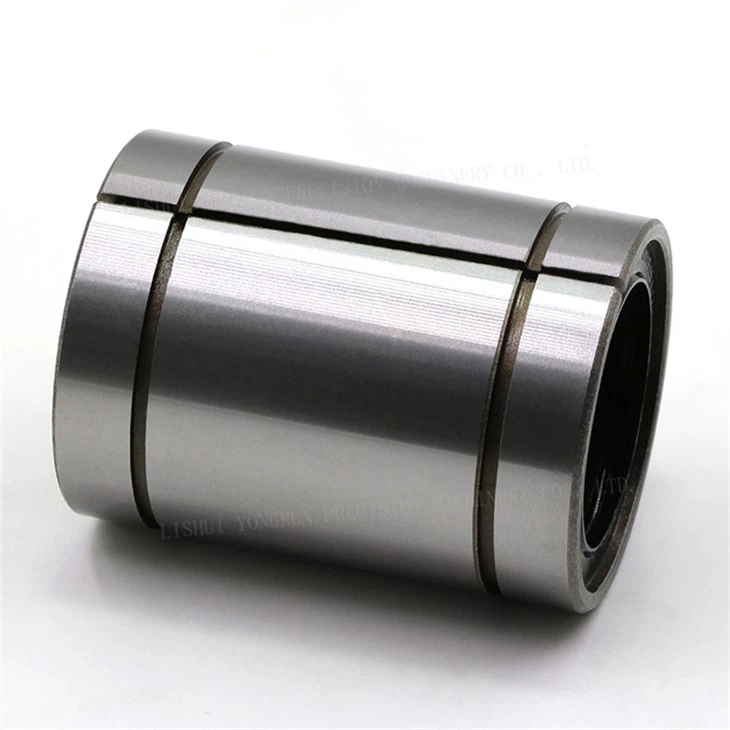

The LM-AJ-UU series is a specialized type of linear ball bearing designed to provide a high degree of precision and control in linear motion systems by allowing for adjustable clearance. While sharing the basic dimensions and components of the standard LM-UU series, its key distinguishing feature is a longitudinal slot along the outer cylinder.

This slot allows the bearing's diameter to be slightly compressed when mounted in an adjustable housing. This enables users to fine-tune the fit between the bearing and the linear shaft, a crucial capability for eliminating backlash (clearance) or applying a specific preload. By doing so, the system's rigidity, accuracy, and repeatability are significantly enhanced.

Featured Product: LM-AJ-UU Seriea Linear Bearing

1. Model: LM-AJ-UU
2. Type: Gap Adjustment Linear Bearing
3. Material: Bearing Steel
4. Shaft Diameter: 3-150mm
5. Application: Ideal as a replacement part for 3D printers and other machinery.
6. Delivery: Please allow 5-7 business days for delivery.
7. Packaging:
a. Plastic bag with box case or wooden case.
b. According to our customer's request.

We can provide shipping information to our customer at any time.

Key Features and Advantages:
Adjustable Clearance: The primary advantage is the ability to precisely control the gap between the bearing and the shaft. This is achieved by installing the slotted bearing into a housing that can be tightened, thereby compressing the bearing and reducing its internal diameter.
Elimination of Backlash: For applications requiring high precision, adjusting the bearing to a zero-clearance state eliminates any play or "lash," resulting in more accurate and repeatable positioning.
Increased Rigidity: Applying a preload (a slight negative clearance) increases the stiffness of the linear motion system, making it more resistant to deflection under load.
High-Precision Applications: This series is ideal for use in high-precision equipment where accuracy is paramount, such as CNC machinery, 3D printers, measuring instruments, and robotics.
Standardized Dimensions: Like the standard LM-UU series, the LM-AJ-UU series follows metric dimensions, making it interchangeable and easy to integrate into various systems.
