LMH-UU Series Linear Bearing

LMH-UU Series Linear Bearing

Product descriptions

The LMH-UU Series is a high-performance linear bearing featuring a distinctive oval (or "diamond") flange for robust and space-efficient mounting. Manufactured to standard Asian metric dimensions, this series is designed for applications where a secure, non-rotating mount is required, particularly in compact areas. The two-hole flange is ideal for installations with limited surface space, offering a lower profile than square-flanged types.

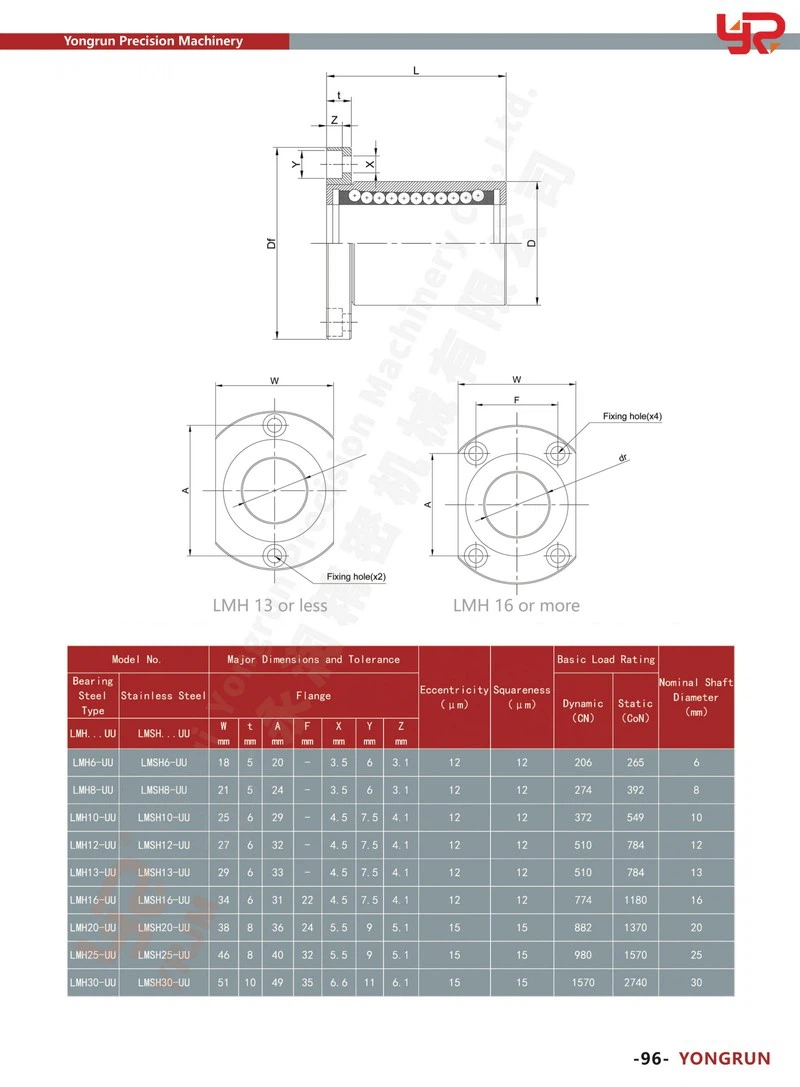

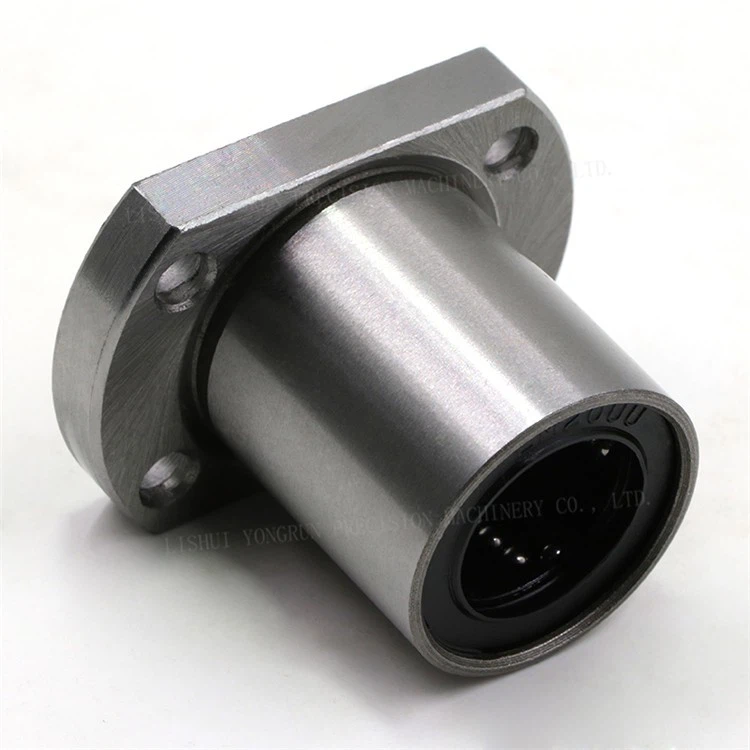

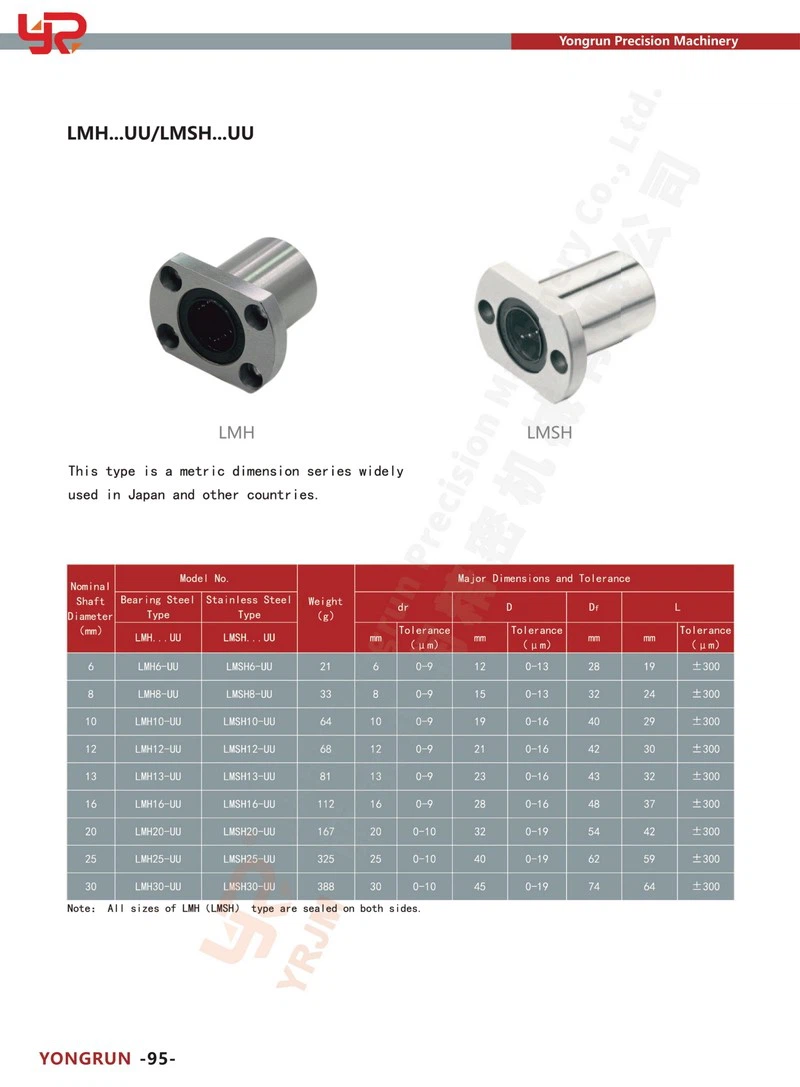

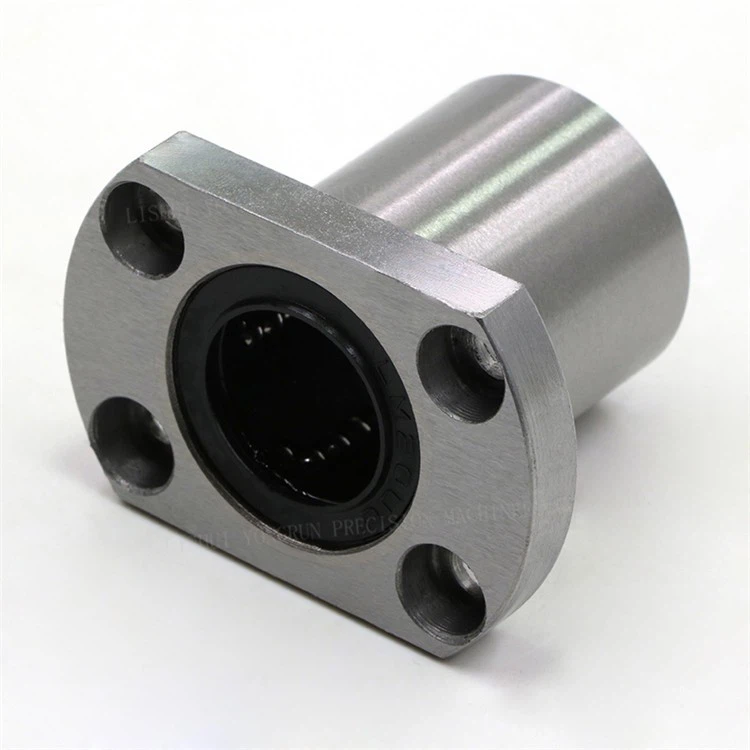

The defining characteristic of the LMH-UU series is its oval-shaped flange, which is an integral part of the bearing's outer cylinder. This design allows for direct and secure mounting to a machine plate or housing using bolts, simplifying installation and ensuring precise alignment. Equipped with dual seals for enhanced durability, the LMH-UU series provides a reliable and precise solution for achieving smooth, low-friction linear motion in a variety of automation, robotics, and CNC applications.

Design Principles

The oval flange is a critical design element engineered for specific mounting and system integration advantages.

Integrated Flange for Stability: The flange is integrated directly into the outer cylinder, creating a single, rigid component. This provides a secure and stable platform for mounting the bearing directly to a machine frame or housing, which prevents unwanted rotation and ensures steady performance under load.

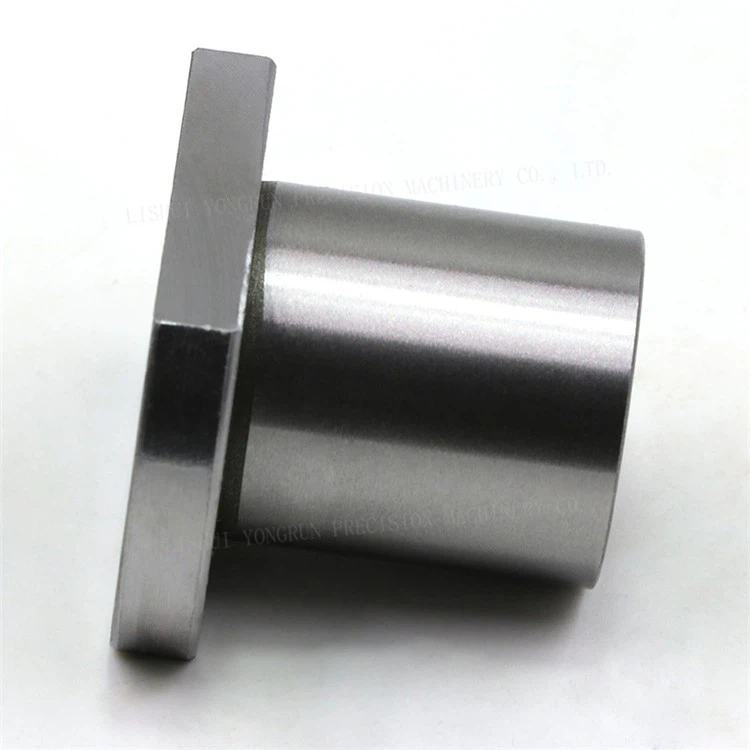

Compact, Space-Saving Profile: The oval flange, often with two sides cut flat, results in a lower core height and a smaller footprint compared to a square flange (LMK type). This makes the LMH-UU series an ideal choice for applications with tight vertical or horizontal space constraints.

Optimized Load Distribution: The internal rows of ball bearings are strategically aligned in relation to the flange. A load applied perpendicular to one of the flattened sides of the flange is supported directly by two rows of balls, optimizing load distribution and maximizing the bearing's capacity.
