Linear Guide Blackening Surface Treatment

EGW30CA Linear Guide

Product Description

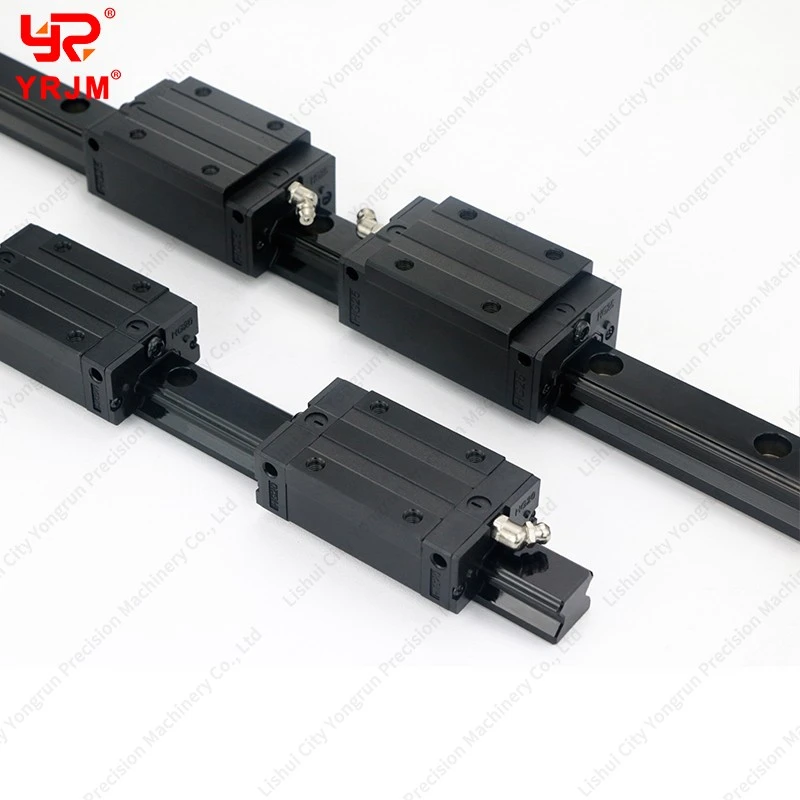

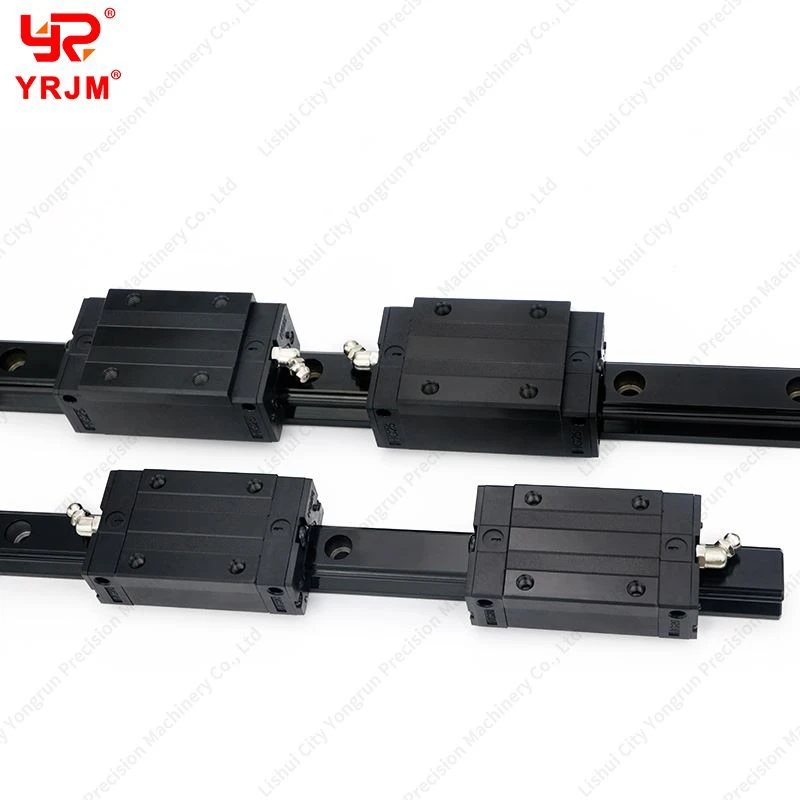

This precision profiled linear guideway system is treated with a specialized black anti-corrosion surface conversion layer, providing excellent corrosion protection and low-glare light absorption without affecting standard raceway tolerances or pre-set preload classes.

Unlike thick coatings or conventional platings that can chip under stress, this micro-thin chemical conversion layer bonds directly with the steel surface, resisting flaking and peeling under continuous rolling-element contact. Available across HG (Heavy Load), EG (Low Profile), and MG (Miniature) product lines, this treatment is well-suited for machine vision inspection cells, laser processing systems, optical translation stages, and high-humidity automated environments.

Core Engineering Advantages: Blackened Linear Guide Systems

A. Flake-Resistant Corrosion Protection
Unlike conventional paints or electroplated finishes that can crack, chip, or peel under cyclic rolling contact fatigue:

• The Conversion Layer: Chemical blackening forms an integrated black-oxide conversion layer directly on the steel surface, ensuring no flakes or plating particulates detach into the recirculating ball circuits.
• Lubricant Retention: The micro-porous structure of the blackened surface enhances oil retention, providing dependable corrosion resistance against atmospheric humidity and handling moisture over extended operational periods.

B. Optical Anti-Glare for Machine Vision Systems
Modern automated manufacturing increasingly relies on machine vision cameras, optical profilometers, and laser triangulation sensors.

• The Optical Challenge: Standard ground steel rails produce specular reflections under direct lighting or laser beams, which can cause sensor glare and false inspection readings.
• The Blackened Solution: Blackened linear rails feature a matte, non-reflective finish that diffuses light, substantially reducing optical glare. This makes blackened guideways well-suited for Automated Optical Inspection (AOI), semiconductor packaging, and laser metrology systems.

C. Uniform Industrial Aesthetics

• Clean Visual Integration: Blackened rails and carriages deliver a consistent, dark industrial finish that complements black-anodized aluminum framing, granite machine bases, and enclosed automated cells, helping maintain a clean visual appearance over prolonged usage.
