Product Description

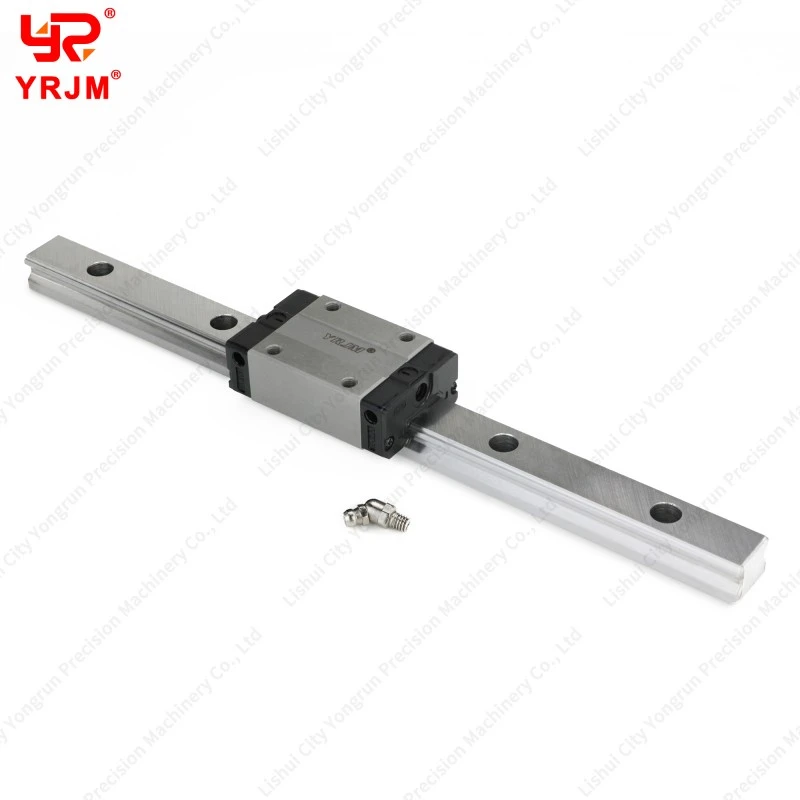

The EGH30CA is a precision-engineered, low-profile linear motion carriage from the EG Series, designed for industrial automation where vertical clearance is limited but structural stiffness remains essential. Engineered to operate on standard 30 mm EGR30 rails, this square-type block delivers a compact 40 mm assembly height and a 60 mm width.

• Robust Load Handling: Featuring a standard heavy-load body length of 98.1 mm, the carriage is rated for a basic dynamic load capacity (Cdyn) of 23.70 kN and a basic static load capacity (C0) of 47.46 kN.
• Torsional Stability: Symmetrical four-row recirculating ball tracks provide balanced 4-way load capacity, offering static moment ratings of 680 Nm in Roll (MR) and 550 Nm in Pitch/Yaw (MP/MZ) to resist tilting forces under offset payloads.
• Installation & Configuration: The four-bolt top-down mounting pattern (40 mm × 40 mm, M8 × 12 mm threads) enables rigid attachment to machine carriages. The block is customizable in Normal (C), High (H), and Precision (P) accuracy grades, with factory-set Z0 (Light) or ZA (Medium) preloads to suit specific positioning requirements.

Why Choose the EGH30CA?
1.Compact Footprint, Heavy-Duty Capacity: Engineered with a low-profile assembly height, this guide fits easily into compact equipment enclosures while supporting a substantial 23.70 kN dynamic load.
2.Stable Four-Bolt Mount: The 98.1 mm body provides a solid foundation with four M8 threaded holes (40 mm × 40 mm pattern), reducing vibration during rapid direction changes.
3.Equal Capacity in Any Orientation: Symmetrical 45-degree ball contact delivers consistent load support whether mounted flat, on a wall, or upside down.
4.Forgiving Installation: Our self-aligning circular-arc technology absorbs minor surface variations on non-ground frames, keeping motion smooth without binding.

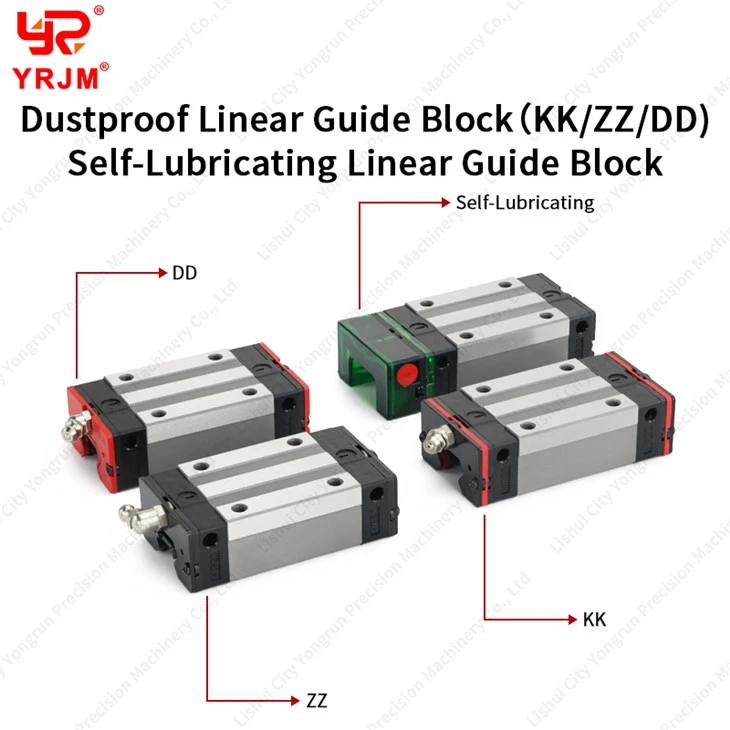

5.Built-in Protection: Standard double-lip end seals and bottom seals lock out dust and debris while retaining grease for extended service intervals.
