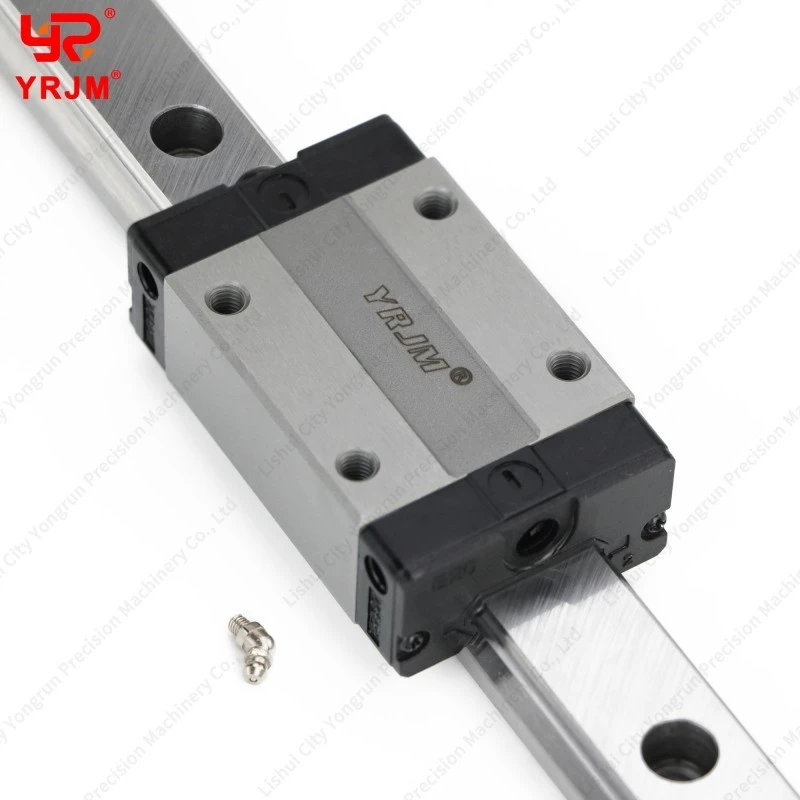

EGH35SA Linear Guide

EGH35SA Linear Guide

Product Description

Design & Fitment: Low-profile square block (SA Type, Short Length / Medium Load) designed for EGR35 rails.
Dimensions: Height (H): 48 mm | Width (W): 70 mm | Overall Length (L): 75.0 mm (L1​: 45.0 mm).
Mounting Interface: Two-bolt top-down mounting pattern spaced transversely at 50 mm with M8 × 12 mm threads.
Load Capacities:

• Basic Dynamic Load (Cdyn): 22.66 kN
• Basic Static Load (C0): 37.38 kN

Static Moment Ratings: Roll (MR): 560 Nm | Pitch/Yaw (MP/MZ): 310 Nm.
Grades & Preload: Available in Normal (C), High (H), and Precision (P) accuracy classes, with Z0 (Light) or ZA (Medium) preload settings.
Block Mass: 0.66 kg.

Component Anatomy & Materials
Square Carriage Body: Low-profile, high-strength steel block (Mass: ~0.66 kg) engineered with a precision-machined top mounting face.
Recirculating Steel Balls: Precision-hardened chromium steel rolling elements optimized for wear resistance and smooth travel.
Deflector End Caps: High-impact synthetic resin components designed with internal return paths for low-noise ball redirection.
Ball Retainers: Integrated metal wire guides that ensure rolling elements remain captive during installation and maintenance.
Tri-Shield Sealing Kit: Comprehensive integrated sealing system (end seals, bottom seals, and side seals) designed to exclude particulate debris and retain internal lubricants.
Lubrication Nipple: Standard M6 × 0.75P threaded grease fitting for direct and convenient grease or oil replenishment.
