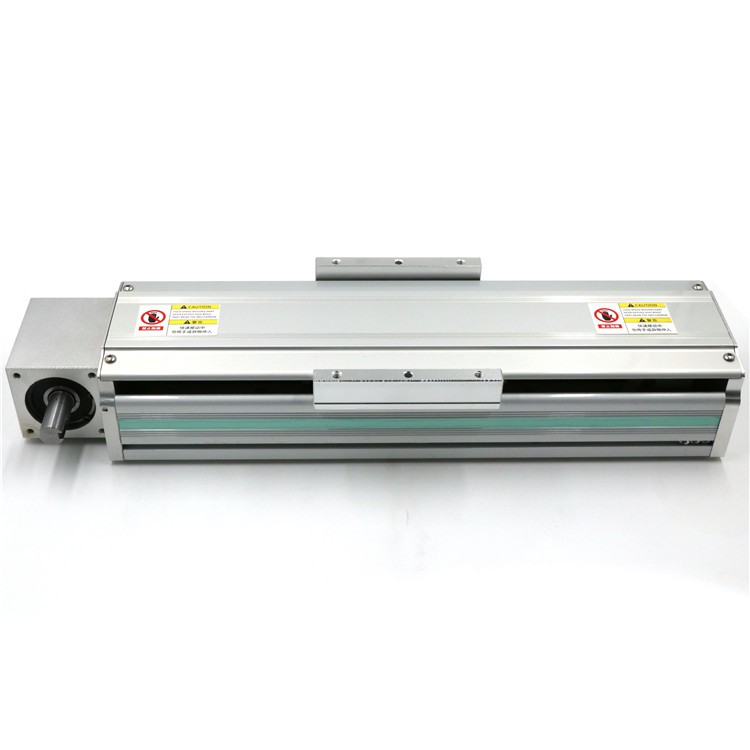

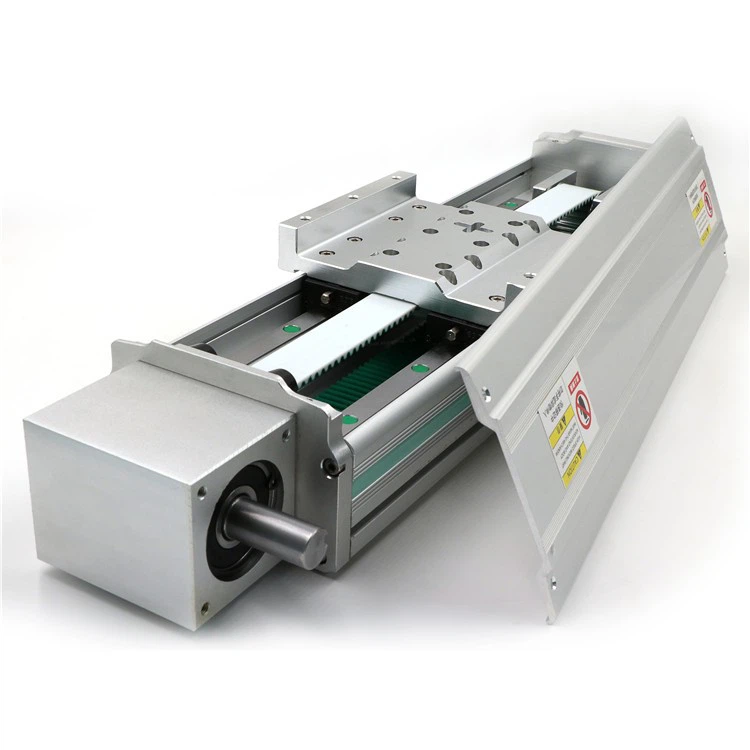

EGHP120F Linear Stage
EGHP120F Linear Stage
A Belt Driven Linear Motion System, often referred to as a Belt Actuator or Belt-Drive Linear Stage, is a mechanical actuator designed to provide fast, long-stroke linear motion. It is classified under Linear Actuation Systems and is characterized by its use of a timing belt and pulley system to translate rotational power into linear movement. This design is highly favored in applications where high speed, long travel, and lower cost are more critical than extreme positional accuracy.

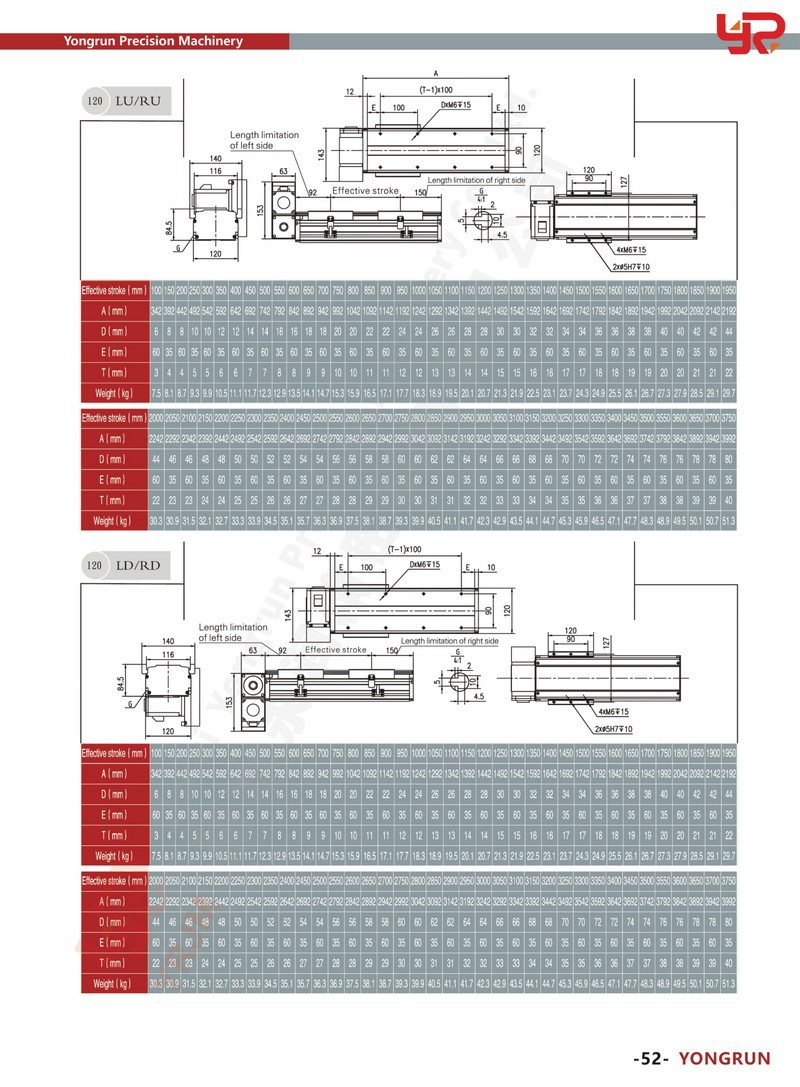

product descriptions

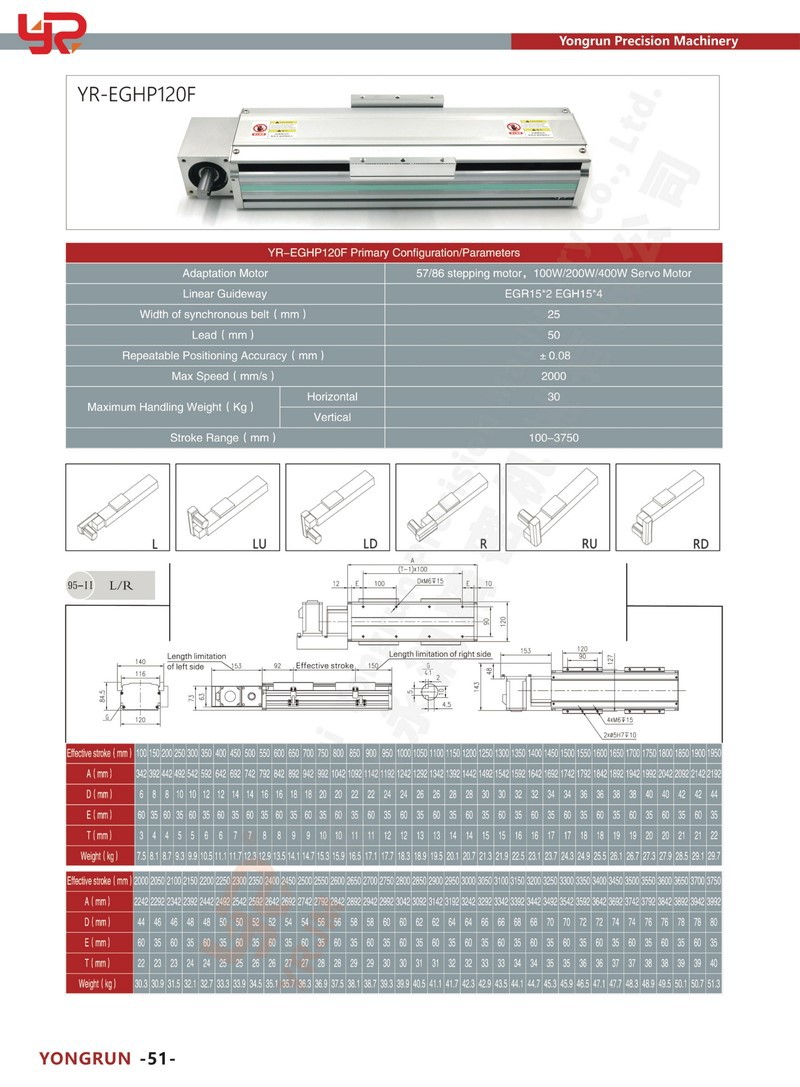

| Product name | linear guide rail systems linear rail for xyz linear stage |
| Material | Bearing steel guide, bearing steel aluminum base |
| Adaptation Motor | 57/86 stepping motor, 100W/200W/400W Servo Motor |
| Linear Guideway | EGR15"2 EGH15*4 |
| Width of synchronous belt ( mm ) | 25 |
| Lead ( mm ) | 50 |
| Repeatable Positioning Accuracy ( mm ) | ±0.08 |
| Max Speed ( mm's ) | 2000 |
| Maximum Handling Weight ( Kg ) |
Horizontal: 30 Vertical: |
| Stroke Range ( mm ) | 100-3750 |
Product Classification and Functions
Belt driven systems are categorized as Linear Actuators with Flexible Transmission. They are often available as fully integrated stages (similar to ball screw stages) or as modular components.
Their primary functions include:
High-Speed Linear Travel: They are capable of achieving much higher travel speeds (up to 10 m/s) compared to ball screw systems due to the belt's lighter mass and the simpler pulley mechanics.
Long-Stroke Capability: The travel length is primarily limited only by the belt length, making them ideal for very long axes (up to 10 meters or more).
Low-Force, High-Throughput Applications: They are best suited for rapidly moving light to moderate loads in applications that prioritize speed and cycle time.
Common applications include automated material handling, packaging machinery, pick-and-place robots, dispensing systems, and large-scale gantry systems.
