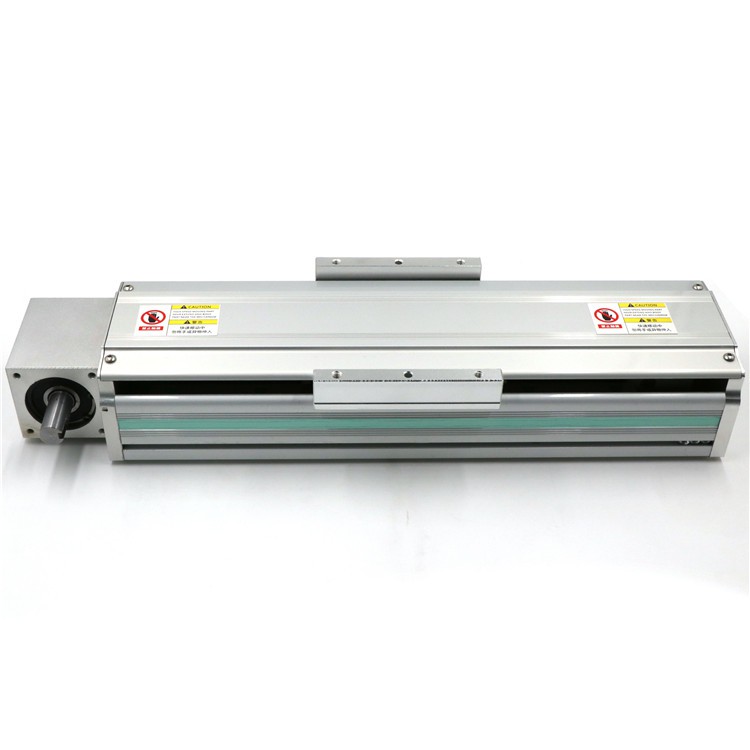

HGHP140F Linear Module
HGHP140F Belt Driven Linear Module
High-Speed Long-Stroke Automation
Rapid Throughput: The HGHP140F utilizes a high-efficiency timing belt drive, allowing your automation systems to achieve high linear velocities and fast cycle times.
Long-Distance Travel: Long ball screws can vibrate or sag over extended distances. The belt-driven HGHP140F eliminates critical speed concerns, making long-span material transfer smooth, reliable, and cost-effective.
Rigid, Integrated Guidance: Combining a heavy-duty extruded aluminum base with precision internal linear rails, this module provides the stability needed for dynamic pick-and-place and gantry operations.
Cost-Effective at Scale: Designed for applications prioritizing speed and reach over brute thrust, offering an optimal price-to-performance ratio for automated packaging, sorting, and transfer lines.

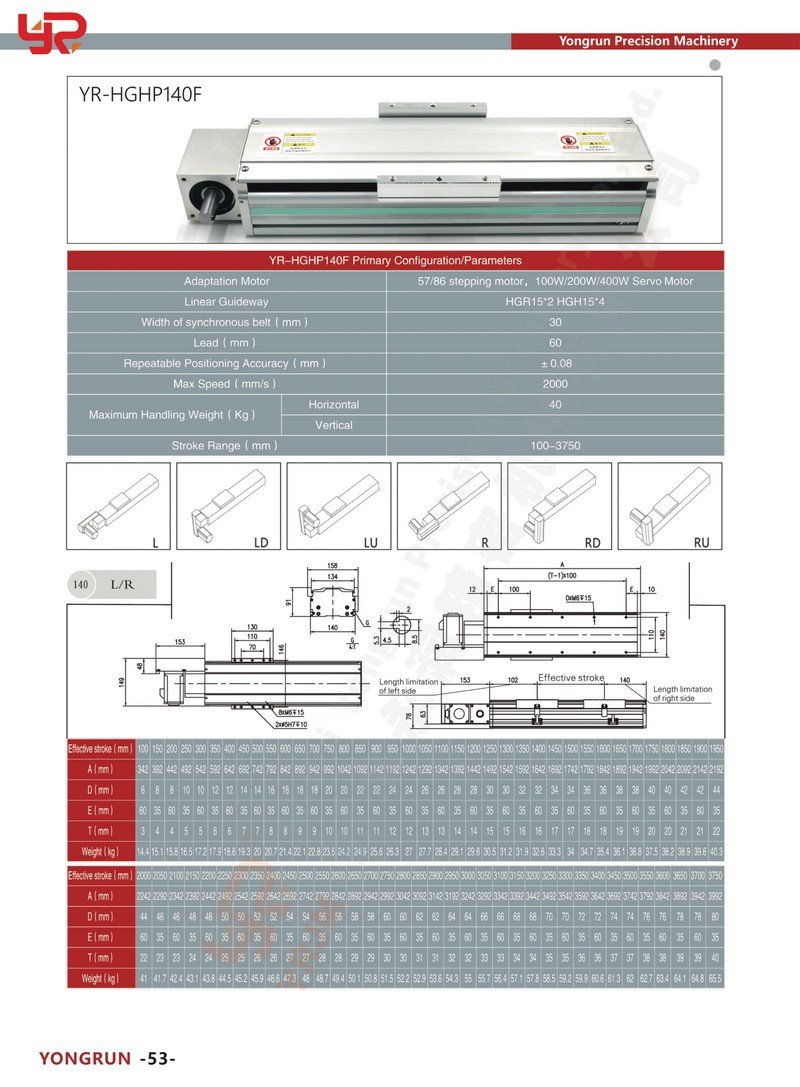

Technical Specifications
| Parameter | Specification |
| Product Model | YR-HGHP140F |
| Module Type | Belt-Driven Linear Module / Actuator |
| Drive Mechanism | 30 mm High-Strength Synchronous Timing Belt |
| Drive Lead | 60 mm (Linear travel per revolution) |
| Effective Stroke Range | 100 mm – 3,750 mm (Customizable) |
| Rated Horizontal Payload | Up to 40 kg |
| Positioning Repeatability | ±0.08 mm |
| Linear Guide Material | Precision-Ground Bearing Steel (GCr15) |
| Structural Base Material | High-Rigidity Aluminum Alloy / Steel |
| Motor Compatibility | Multi-motor interface options (Stepper / Servo ) |
| Customization | Comprehensive OEM / ODM services available |
Why Specify the Yongrun HGHP140F Linear Module?

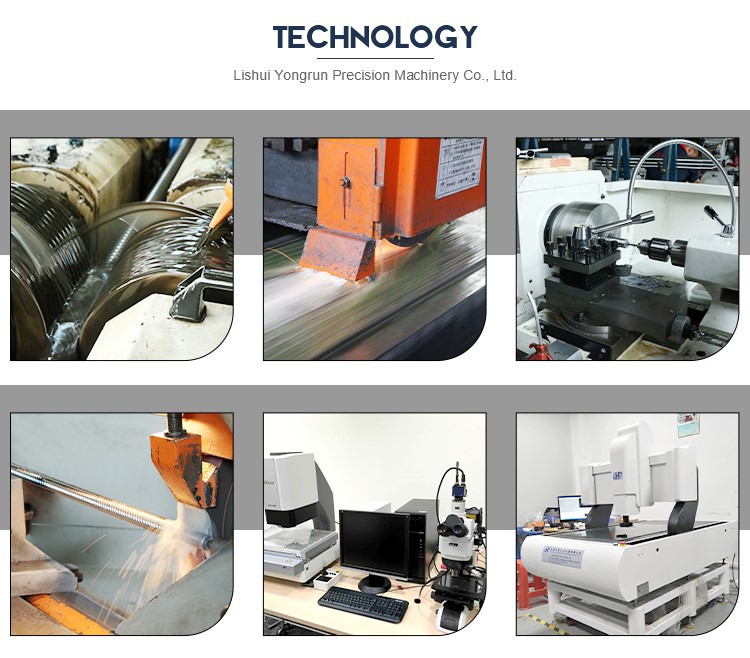

Factory-Direct Sourcing: Manufactured in-house by Lishui City Yongrun Precision Machinery Co., Ltd. in Lishui, Zhejiang Province, China. Direct factory oversight ensures consistent quality control, reliable lead times, and factory-direct value.
Long-Stroke Capability: Engineered for large-format machinery, the HGHP140F supports extended stroke configurations up to 3,750 mm.
OEM / ODM Engineering: We support customized linear motion manufacturing tailored to your 2D/3D CAD drawings, technical samples, and specific equipment requirements.
Versatile Motor Mounting: Pre-engineered to support multiple motor flange configurations, including standard stepper motors and AC/DC servo systems.
Turnkey Branding & Sampling Support: We offer comprehensive value-added services, including bespoke packaging, laser product marking (private labeling), and evaluation samples for engineering verification (shipping costs covered by client).
