MGWS75F Linear Module

MGWS75F Linear Module
Ball Screw Linear Module for High-Speed Automation and Precision Positioning

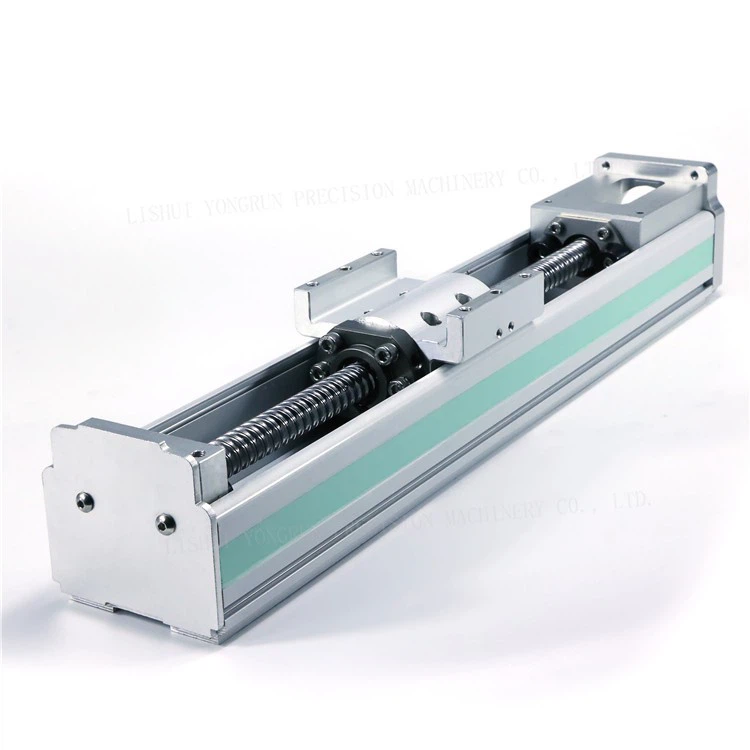

The MGWS75F Linear Module is a compact ball screw driven linear motion unit designed for industrial automation, high-speed positioning, feeding and transfer applications.

The MGWS75F combines a Ø16 C7 ball screw with an MGR12 × 1 and MGW12H × 1 linear guide configuration to provide a compact, integrated motion axis.

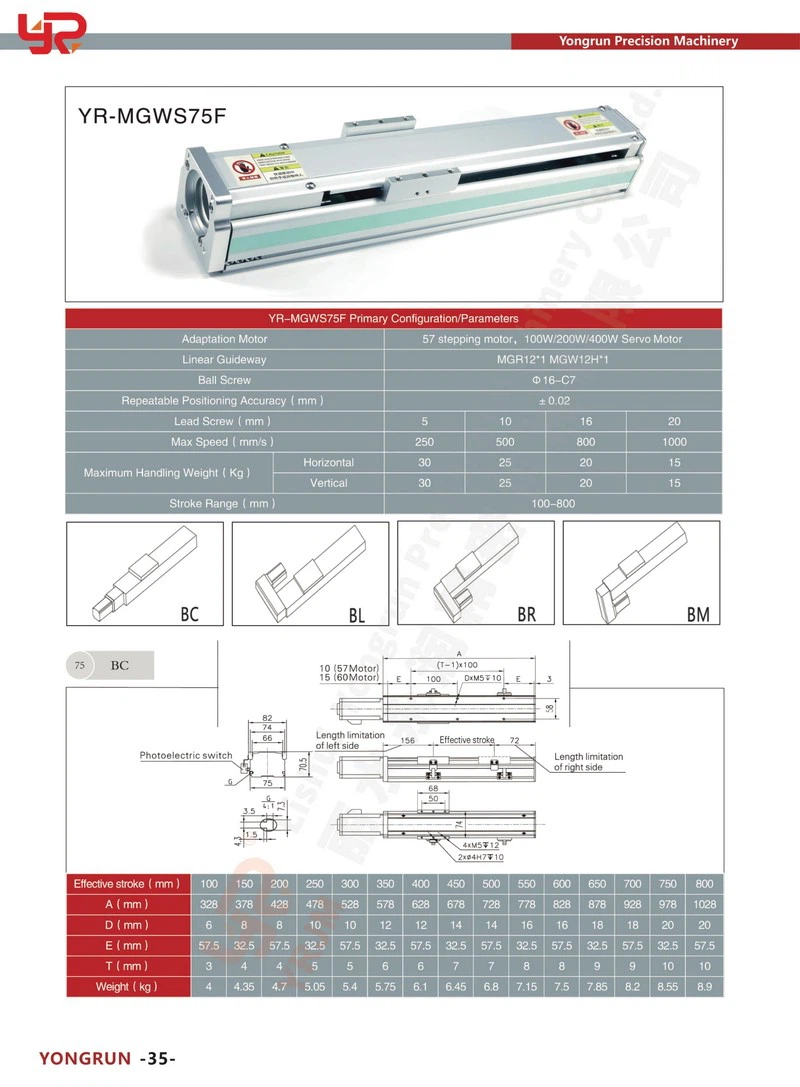

Key Specifications
Ø16 C7 ball screw
MGR12 × 1 + MGW12H × 1 guideway
±0.02 mm repeatable positioning accuracy
100–800 mm stroke range
Up to 1000 mm/s maximum speed
5 / 10 / 16 / 20 mm screw lead
15–30 kg horizontal load
15–30 kg vertical load
57 stepping motor compatible
100 W / 200 W / 400 W servo motor options
OEM / ODM customization available

Need an MGWS75F for your machine?

Send us your required stroke, load, speed, motor type or technical drawing.

Our engineers can review your application and recommend the appropriate configuration.

MGWS75F: Choosing Speed, Lead and Load

One of the most important selection factors for the MGWS75F is the relationship between screw lead, speed and load.

A smaller screw lead provides a different motion profile from a larger lead, so the appropriate configuration should be selected according to the machine requirements.

For example:

5 mm lead: 250 mm/s maximum speed, up to 30 kg published handling weight
10 mm lead: 500 mm/s maximum speed, up to 25 kg
16 mm lead: 800 mm/s maximum speed, up to 20 kg
20 mm lead: 1000 mm/s maximum speed, up to 15 kg
