HGHS140K Linear Stage
HGHS140K Heavy-Duty Ball Screw Linear Stage

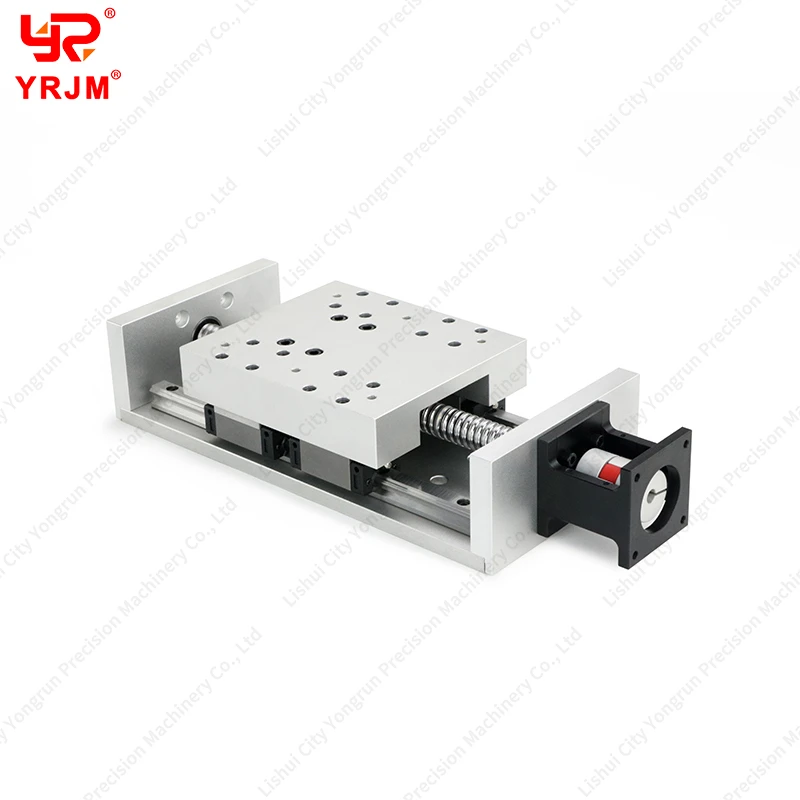

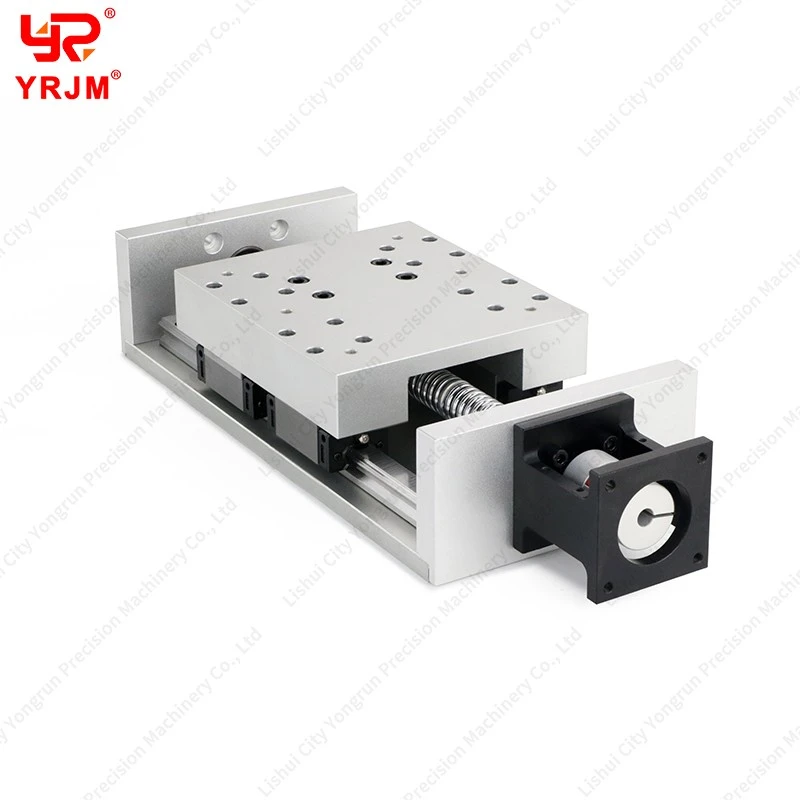

The HGHS140K Linear Stage is a heavy-duty ball screw driven linear motion platform designed for industrial automation, CNC machinery, gantry systems, Cartesian robots and high-load positioning applications.

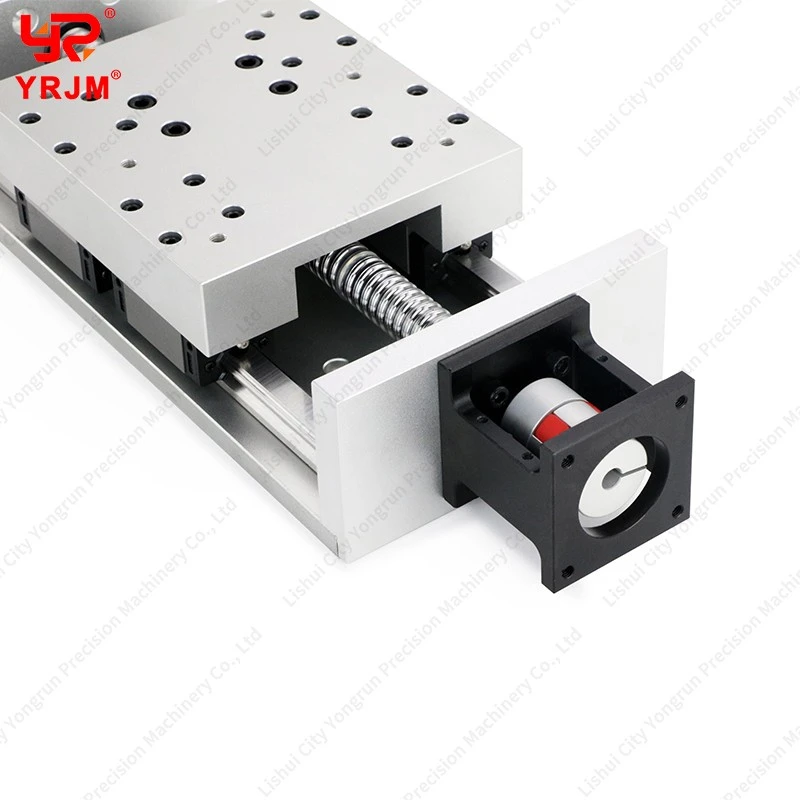

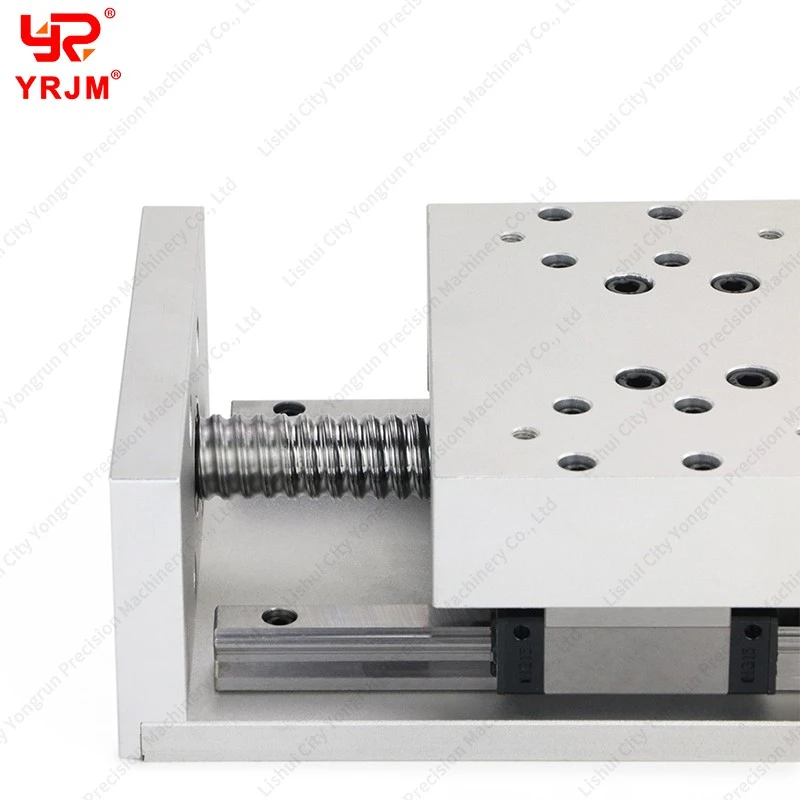

The stage uses a 140 mm wide aluminum chassis, two parallel HGR linear guide rails and four HGH guide blocks to create a rigid supporting structure. A centrally positioned Ø20 mm C7 ball screw provides the drive mechanism for controlled linear movement.
This dual-rail and four-block arrangement is designed to improve structural stability and resistance to pitch, yaw and roll loads, making the HGHS140K suitable for applications where a more rigid linear axis is required than a compact single-rail module.

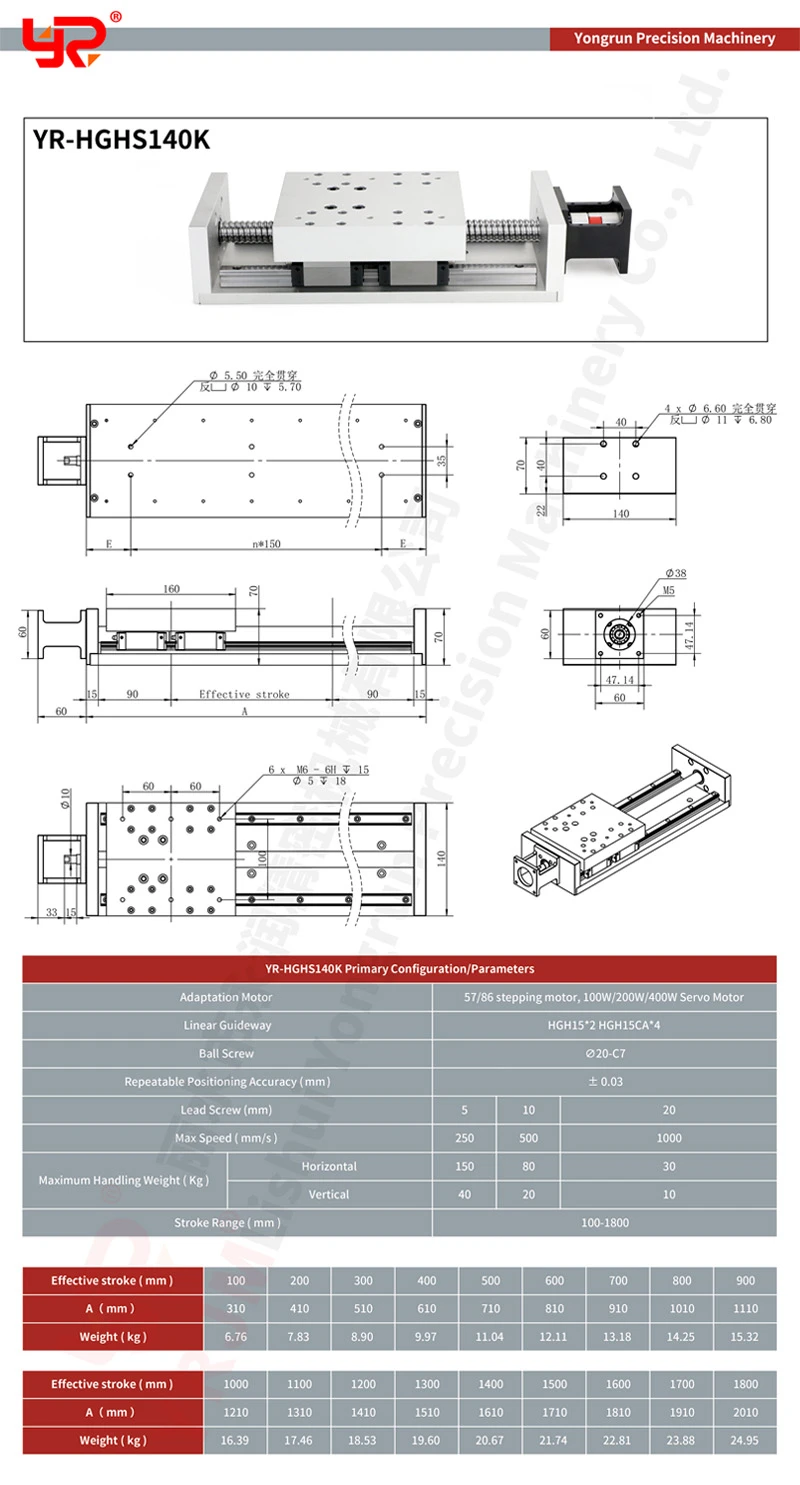

| Product Model | HGHS140K |
| Product Type | Heavy-Duty Linear Stage |
| Drive Type | Ball Screw |
| Chassis Width | 140 mm |
| Ball Screw | Ø20 C7 |
| Screw Lead | 5 / 10 / 20 mm |
| Linear Guide | 2 × HGR Linear Guide Rails |
| Guide Blocks | 4 × HGH Carriages |
| Stroke | 100–1800 mm |
| Repeatable Positioning | ±0.03 mm |
| Motor Interface | NEMA 23 / NEMA 34 |
| Motor Type | Stepper / Servo |
| Structure | Aluminum Chassis |
| Customization | OEM / ODM |
HGHS140K Linear Stage FAQ
Q: Can the HGHS140K be used for gantry systems?
A: Yes. Its wide chassis and dual-guide architecture make it suitable for multi-axis gantry and Cartesian motion systems, subject to actual load and moment requirements.
Q: What motors are compatible with this stage?
A: It is compatible with standard NEMA 23 and NEMA 34 stepper motor flanges, as well as various servo motor configurations. Specific motor sizing and power should be selected based on your operating requirements.
Q: Can the HGHS140K be customized?
A: Yes. Yongrun provides comprehensive OEM and ODM customization based on customer drawings, samples, and equipment requirements.
Q: What information is needed for a quotation?
A: To receive a prompt quotation, please provide the required stroke length, payload, target speed, motor type, mounting orientation, quantity, and application details. Supplying a technical drawing or 3D model is recommended.
Q: Where is the HGHS140K manufactured?
A: The HGHS140K is manufactured by Lishui City Yongrun Precision Machinery Co., Ltd. at our production facility in Lishui, Zhejiang, China.
