KK130 Linear Stage

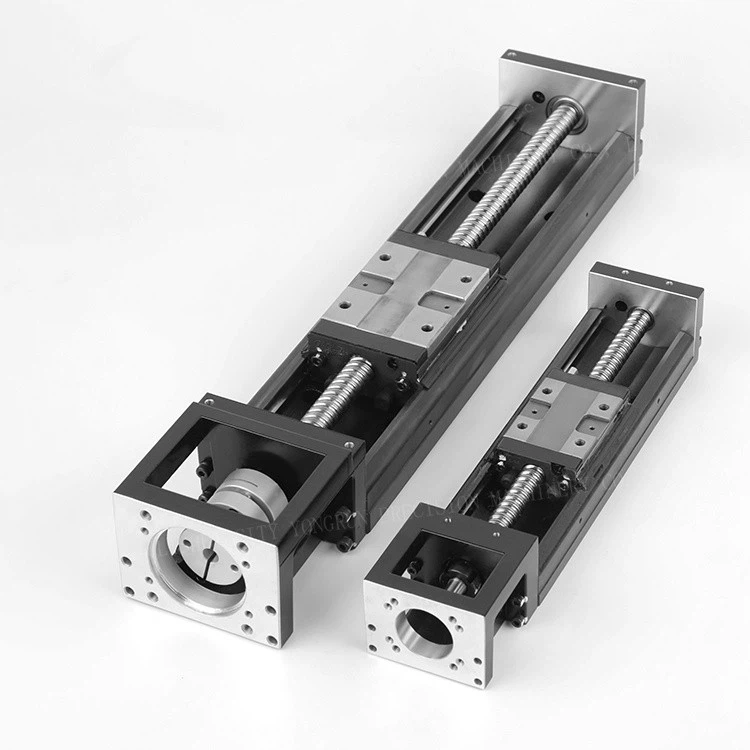

KK130 Linear Stage(Without Protective Cover)

Product Advantage

1.Maximum-Duty 130mm Profile:Provides ultimate stiffness, minimizing deflection over long spans and offering superior vibration damping under extreme loads.

2.Open Body Design:Simplifies installation, allows for immediate visual inspection, eliminates seal friction, and enables rapid manual lubrication of the large components.

3.Maximum Load Drive System:Achieves the highest axial thrust and load capacity, ensuring precise movement even under extreme resistance.

4.Integrated Guidance:Supports the highest possible moment and radial loads, fully utilizing the massive structural rigidity of the 130mm profile.

5.Superior Thermal Performance:Critical for maintaining thermal stability and accuracy during continuous, heavy-duty operating cycles.

Product descriptions

This unit is classified as an Open-Frame, Maximum-Duty Ball Screw Actuator with Integrated Profiled Rail Guidance. It is the definitive choice when structural deflection must be near zero under extreme loads, and where environmental sealing is not required.

Its primary functions include:

Ultimate Load and Rigidity: The massive 130mm profile and integrated heavy-duty guides are engineered to provide the highest possible structural stiffness and load-bearing capacity, minimizing deflection even under tons of static or dynamic force.

High-Precision Heavy Transport: Utilizing a large-diameter precision ball screw, it delivers superior positional accuracy and repeatability while moving massive payloads.

Thermal Management and Accessibility: The open-top design allows for maximum passive heat dissipation from the large drive components and provides immediate access for inspection and maintenance.

The KK130 Stage is deployed in the heaviest precision automation sectors, such as aerospace component assembly, large-format precision machining beds, and as the base axis for heavy-payload gantry robots.
