KK60 Linear Stage Light Load Type (Without Protective Cover)

The KK60 Linear Stage Light Load Type With Protective Cover represents a specialized configuration of a Ball Screw Driven Linear Stage. It offers a premium blend of robust structural size and environmental protection.

This model is categorized as a Sealed/Enclosed Ball Screw Actuator, where the internal drive is protected by a cover. The 60 mm body width provides excellent rigidity. However, the designation "Light Load Type" indicates a system that is specifically optimized for high speed and high dynamic performance rather than maximum load capacity. This optimization is typically achieved through the use of a smaller-diameter ball screw or a lower preload, making it ideal for fast, high-cycle applications.

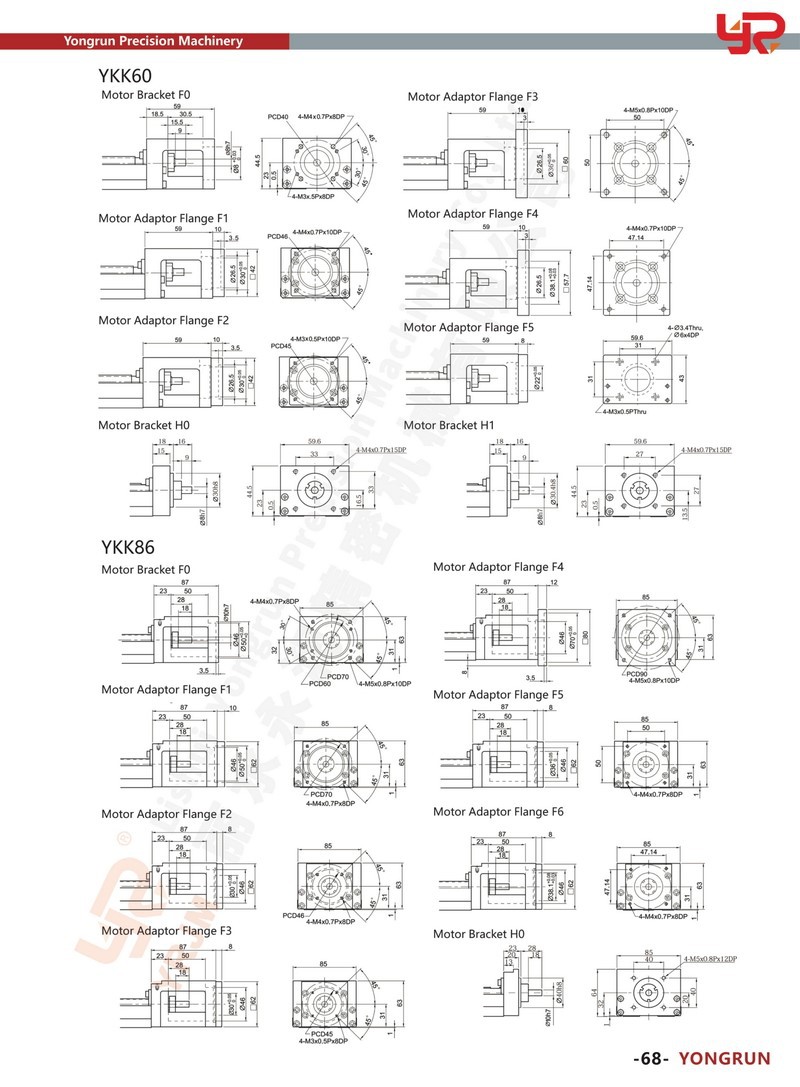

product-800-1087

product description

Speed Optimization (Coarse Lead): Utilizes a coarser pitch ball screw (e.g.,16 mm or 20 mm lead) to achieve higher linear speeds with fewer motor revolutions. This is the primary feature that qualifies it as a "Light Load" type.

Maximized Heat Dissipation: The absence of a protective cover allows for unrestricted airflow directly over the rotating ball screw and guide rails. This is essential for preventing thermal growth and maintaining precision during continuous, high-speed operation.

Easy Maintenance and Inspection: The open design provides immediate, full visual access to the ball screw, ball nut, and linear guides, simplifying lubrication checks, inspection, and maintenance.

Reliable Rigidity: Guided by high-quality profile rails, the 60mm frame maintains good structural stability and rigidity, providing precise, repeatable motion for light-to-moderate payloads.

Cleanroom Suitability: The lack of a wear-prone sealing strip eliminates a potential source of particulate generation, making it suitable for certain cleanroom or laboratory applications.
