DSG Series Nut Housing

DSG Series Nut Housing

Product descriptions

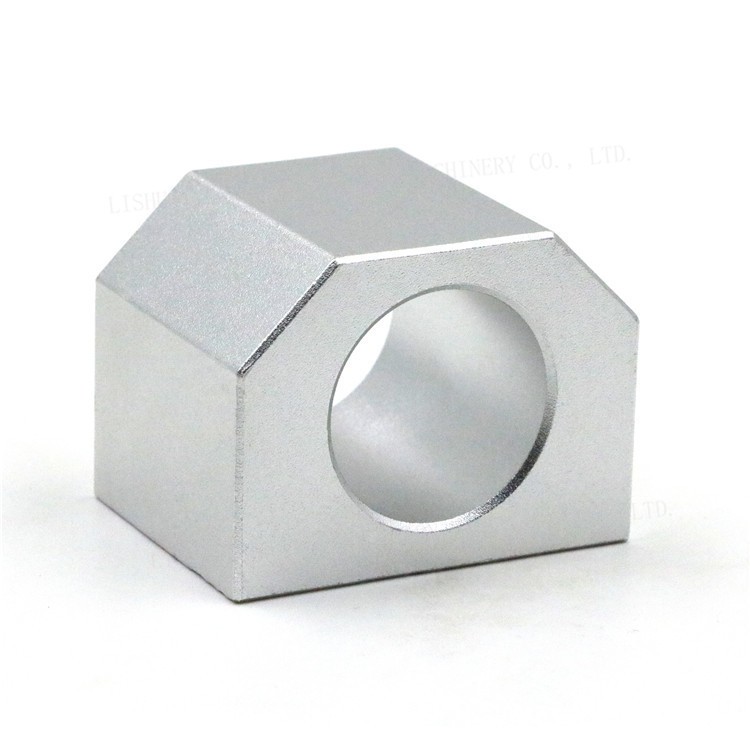

The DSG Series Nut Housing is a precision-machined mounting bracket designed specifically to hold and integrate a flanged ball screw nut into a linear motion system. Acting as a critical interface, this housing adapts the round, flanged profile of a ball screw nut (such as the common SFU and DFU series) to a flat mounting surface on a machine's carriage, gantry plate, or table.

Construction and Function:

Constructed from high-quality aluminum alloy, the DSG nut housing simplifies the design and assembly process. The housing is typically bolted to the moving component (like a gantry), and the ball screw nut is then secured inside. This configuration ensures a rigid, accurate, and reliable connection between the ball screw and the moving machine part.

Key Features and Advantages

The DSG Series Nut Housing is engineered for high accuracy and simplified system integration, offering several key benefits:

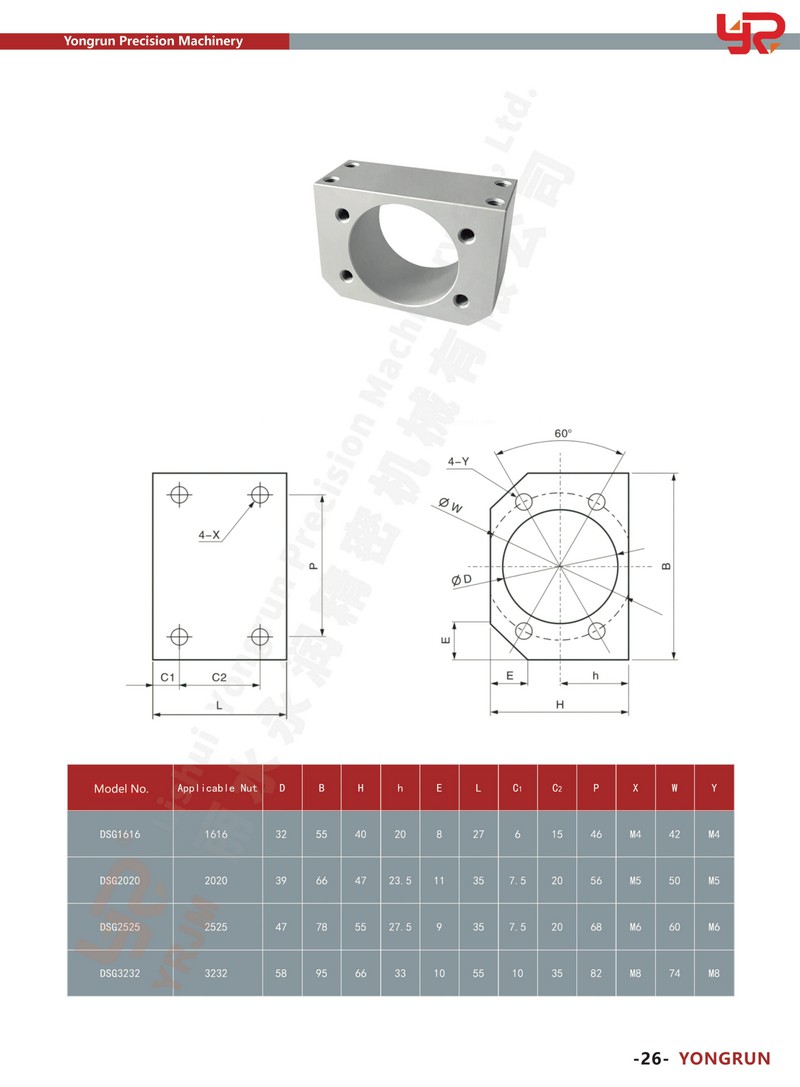

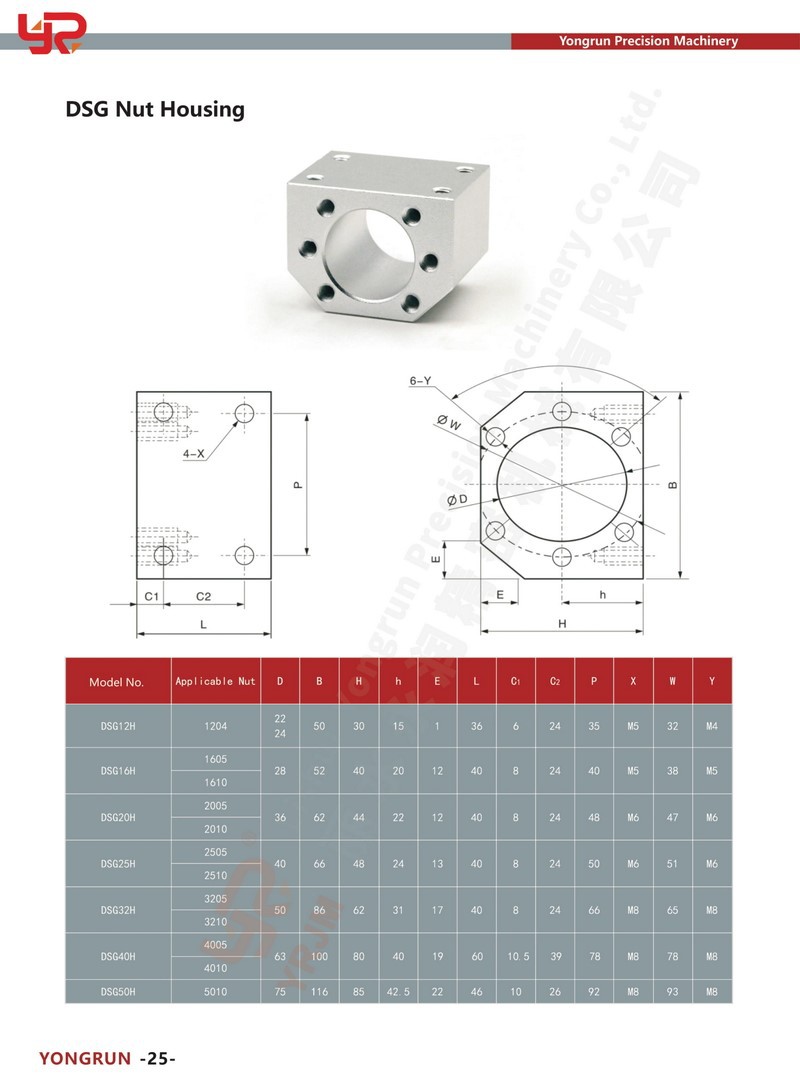

Standardized and Compatible: The DSG series is manufactured to standardized dimensions, ensuring a perfect, reliable fit for corresponding ball screw nut sizes (e.g., DSG16H for an SFU1605/1610 nut). This eliminates guesswork and guarantees seamless component compatibility.

Precision Machining for High Accuracy: The housing is CNC-machined to tight tolerances. The central bore and mounting faces are precisely crafted to ensure the ball screw nut is held perfectly perpendicular to the mounting plate. This critical alignment prevents binding and ensures smooth, efficient motion.

Lightweight and Rigid Construction: Made from a solid block of high-quality aluminum alloy (such as 6061), the DSG housing provides excellent rigidity and stability while remaining lightweight. This helps to reduce the overall mass and inertia of the moving assembly, allowing for faster acceleration and direction changes.

Simplified Assembly and Installation: As a ready-to-use component, the DSG nut housing drastically simplifies the process of mounting a ball screw nut. It provides a flat base with convenient mounting holes, saving the significant time and cost of designing and fabricating a custom bracket.

Enhanced Durability and Corrosion Resistance: The aluminum surface is typically anodized. This electrochemical process creates a hard, durable, and corrosion-resistant oxide layer, protecting the housing from wear and environmental factors.
