DSG1616 Nut Housing

DSG1616 Nut Housing

Product Profile

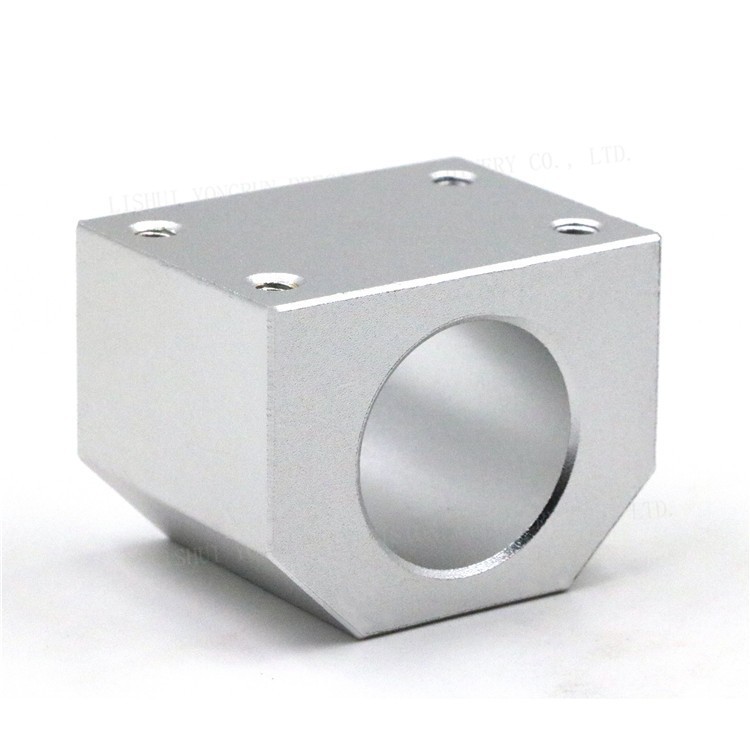

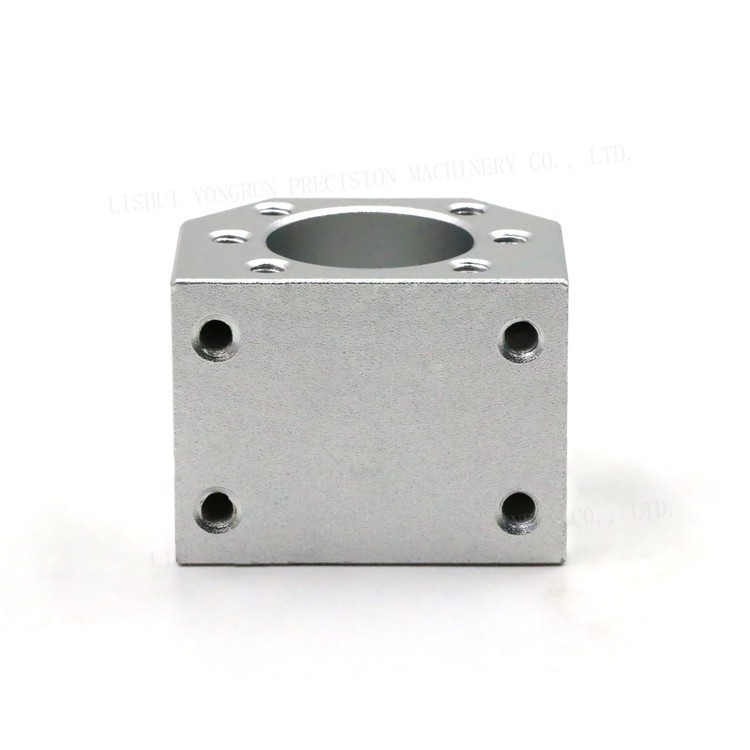

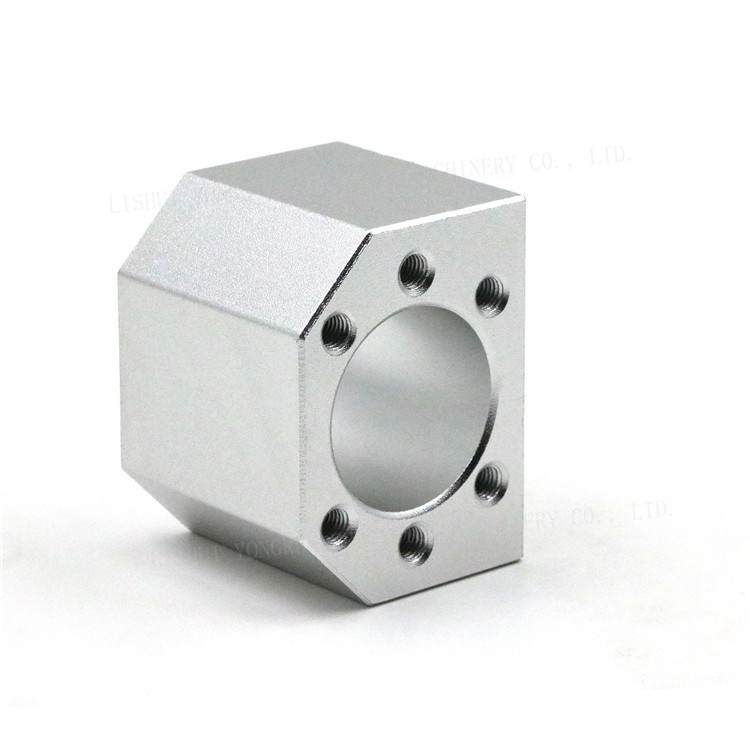

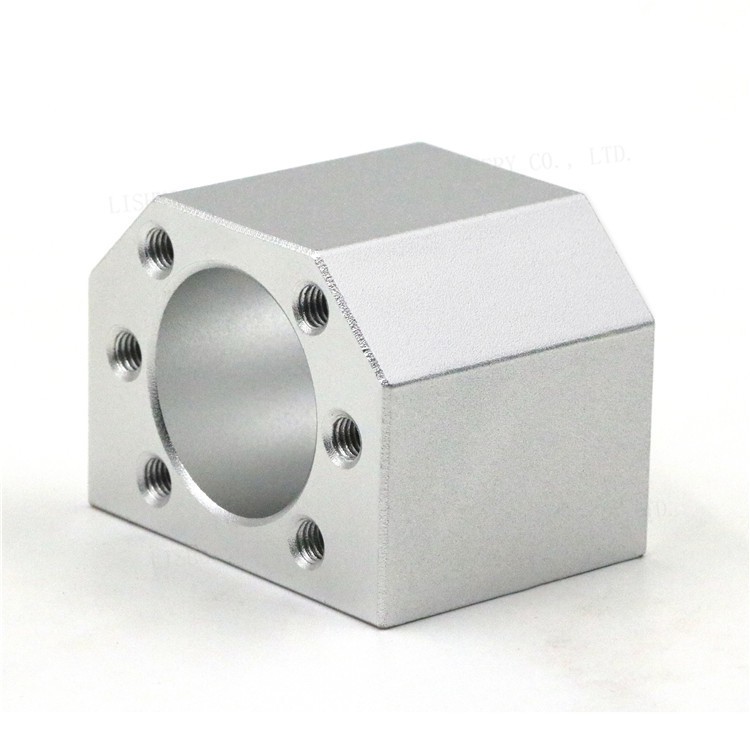

The DSG1616 Nut Housing is a specialized mounting bracket engineered to integrate SFE1616 and SFY1616 high-lead ball screws into industrial motion systems.


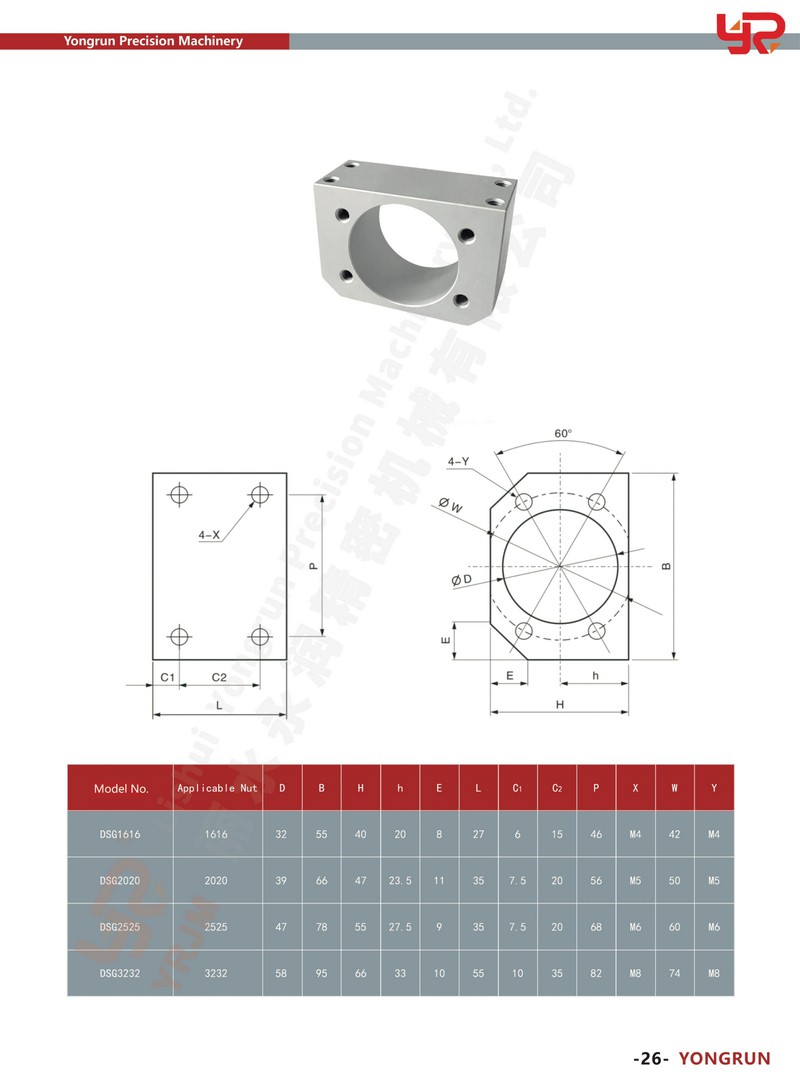

1. Model Designation: DSG1616

• DSG: Industry-standard prefix for Ball Screw Nut Housings.
• 1616: Signifies compatibility with high-lead (16mm diameter / 16mm lead) ball screws.

Note: Unlike the standard 28mm bore used for the SFU16 series, the DSG1616 features a precision-machined 32mm bore, specifically engineered to accommodate the larger nut body required by high-speed ball screws.

Operating Principles: The Mechanical Interface
The DSG1616 serves as the essential high-speed interface between the ball screw nut and the machine's moving carriage. Its design ensures the rigid transmission of high-velocity motion while maintaining strict alignment.


1.Precision Integration: The SFE/SFY1616 high-lead ball screw nut is seated securely into the precision 32mm bore of the DSG1616 housing.
2.Rigid Locking: High-strength bolts anchor the nut within the housing, creating a unified, vibration-resistant carriage block.
3.Direct Mounting: The housing is bolted directly to the machine's carriage or linear guide block, providing a flat, secure mounting surface.
4.High-Speed Force Transmission: As the ball screw rotates, the DSG1616 transfers high-velocity thrust forces (16mm travel per revolution) directly to the machine frame. This rigid linkage ensures that motion is transferred smoothly, accurately, and without lost motion, even during rapid traversing.
