DSG50H Nut Housing

DSG50H Nut Housing

Product descriptions

Compatibility: Precision-engineered for 50mm ball screw nuts (SFU/DFU/SFE/SFY series).
Dimensions: Standard 75 mm inner bore for perfect fitment of SFU50 nut bodies.
Construction: High-tensile structural aluminum alloy with a protective industrial black anodized finish.
Performance: Optimized for maximum load capacity and high-precision industrial linear motion.
Mounting Interface:
Nut Side: DIN-standard flange PCD for secure nut locking.

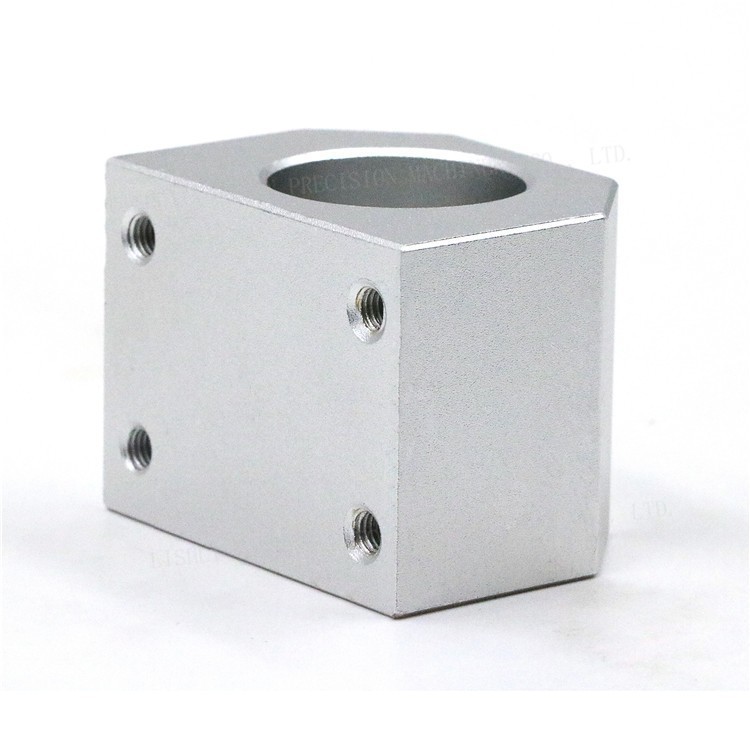

Carriage Side: Heavy-duty 4-bolt pattern on the top surface.
Versatility: Design allows for upright or inverted mounting based on machine clearance needs.

Performance Features
1.Geometric Adaptation: Acts as a rigid adapter, converting complex flanged-nut geometry into a simple, flat, 4-bolt mounting surface for machine gantries.
2.Center Height Precision: Milled to exact tolerances to maintain perfect parallelism with HG45–HG65 guide rails when used with BK40/BF40 supports.
3.Heavy-Duty Rigidity: Engineered for extreme axial thrust (>17,000 kgf). Prevents flexing and lost motion to ensure immediate carriage response.
4.Structural Integrity: High-strength, thick-walled aluminum alloy construction provides the rigidity required for heavy industrial automation and large-scale CNC machinery.
