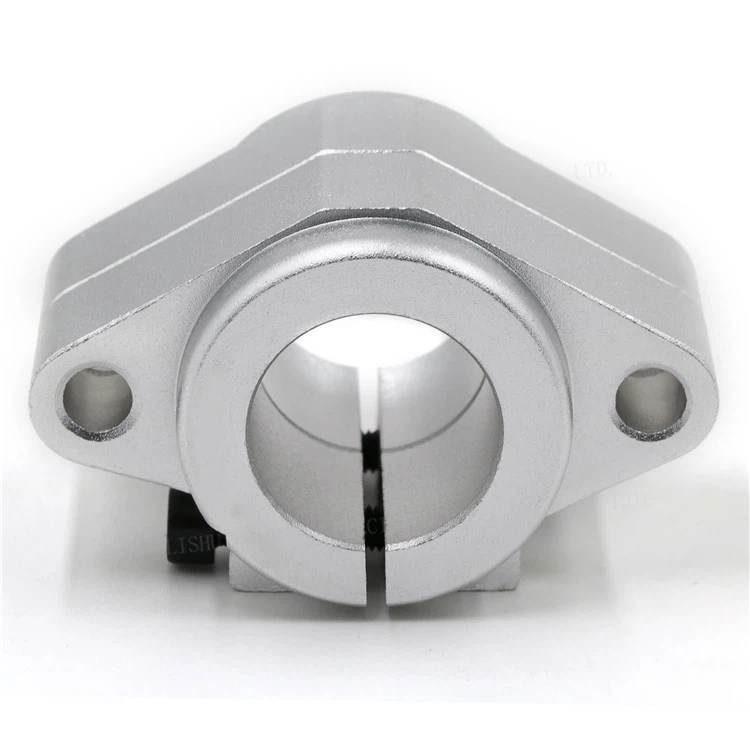

The SHF Series Shaft Support is a precision-engineered component designed to provide stable and reliable end or intermittent support for linear motion shafts. Featuring a flanged, two-bolt oval design, often referred to as a "butterfly" shape, this support block is a fundamental building block for a wide range of automation systems.

Construction and Design:

Constructed from high-quality, lightweight aluminum alloy, the SHF series offers a cost-effective and easy-to-install solution. The flanged shape allows the shaft support to be securely bolted directly to a machine's frame or base plate.

Key Features and Advantages

The SHF Series is engineered to provide essential stability and simplified installation for linear shafts, offering several key benefits for system designers:

Robust and Stable Support: The primary function is to securely anchor the linear shaft, preventing deflection, vibration, and bending. This is crucial for ensuring the shaft maintains a true, straight path for precise linear motion.

Lightweight and Compact Design: Constructed from cast aluminum, the SHF support provides excellent rigidity while remaining lightweight. Its compact, flanged shape allows for secure, low-profile mounting without occupying excessive space.

Simplified, Non-Destructive Installation: The support utilizes a slit and a clamping screw to securely grip the linear shaft. This design eliminates the need for complex machining (e.g., threading, keyways) on the shaft ends, significantly reducing assembly time and cost.

High-Quality and Durable Construction: Precision engineering ensures minimal friction and wear on the shaft, contributing to smooth and accurate linear motion. The aluminum construction also provides natural resistance to corrosion, making it suitable for various industrial environments.

Broad Versatility: The SHF series is available in a wide range of sizes to accommodate standard metric shaft diameters, typically from 3mm up to 60mm, ensuring adaptability across countless applications.
