SK Series Shaft Support

SK Series Shaft Support

Product descriptions

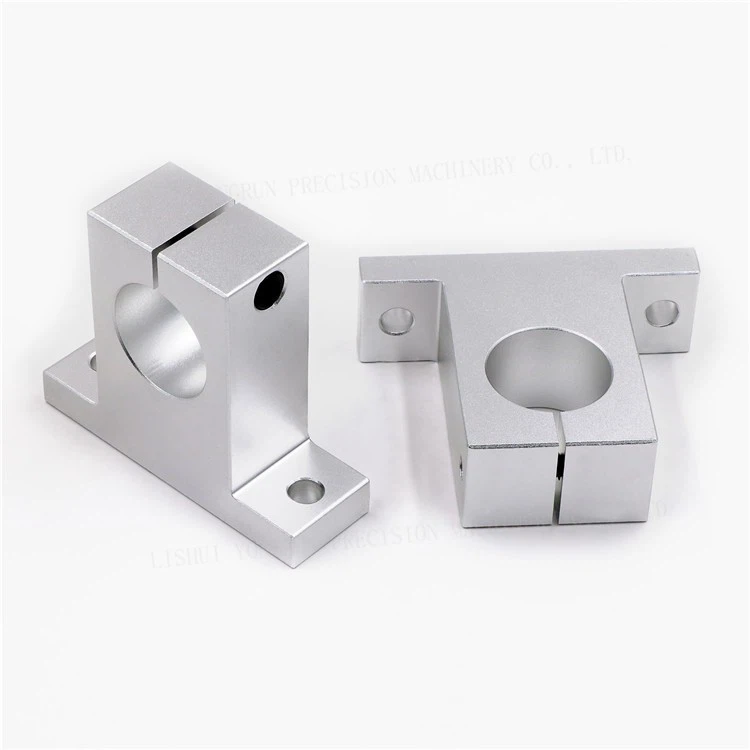

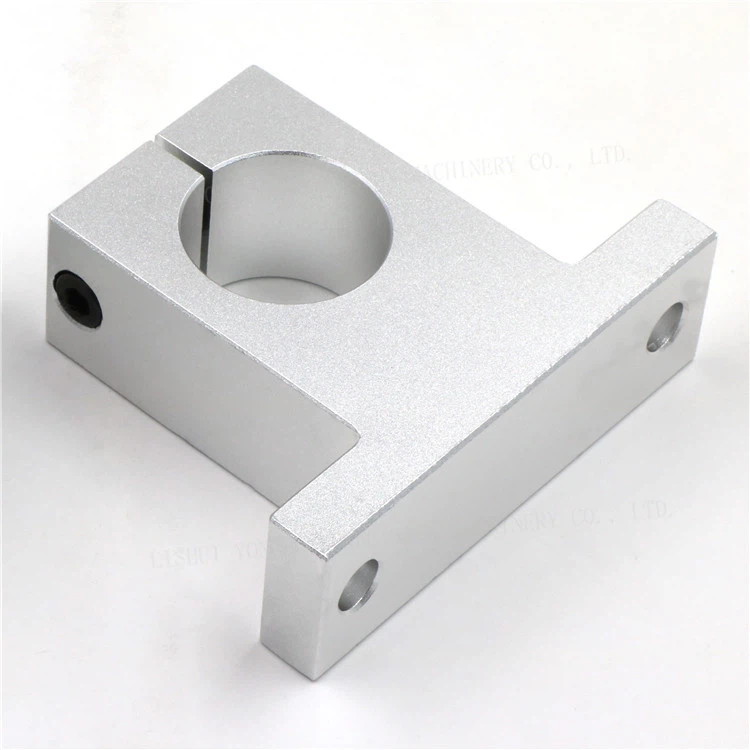

The SK Series Shaft Support is a robust, block-style end support designed to provide rigid and precise mounting for linear motion shafts. Constructed from a solid block of high-quality aluminum alloy, this support provides a stable and non-rotating foundation for guide rails in a wide array of machinery.

Design and Function:

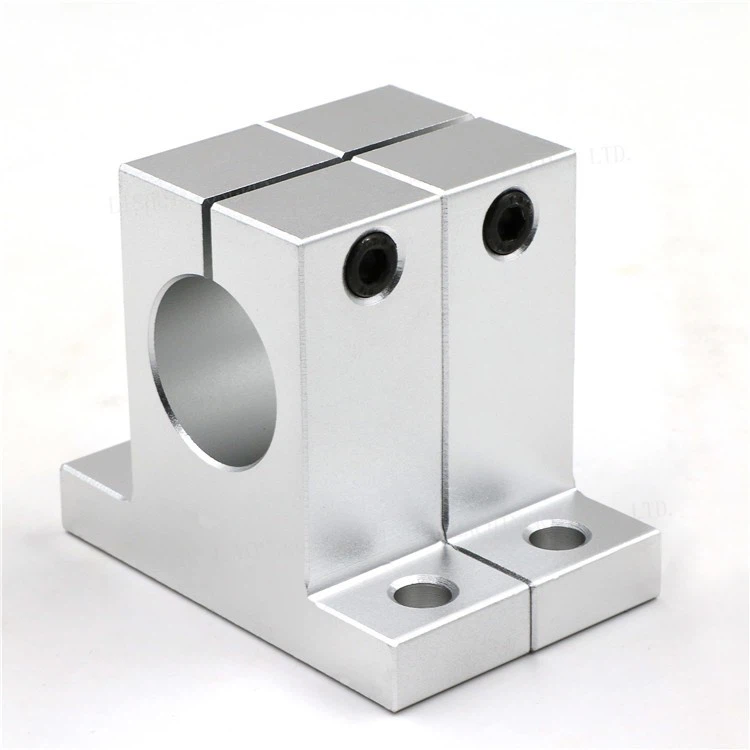

The support is characterized by its cube or block shape, which allows for extremely secure, multi-bolt mounting to a machine's frame or base plate. As an essential component for building reliable linear axes, the SK series is a staple in CNC machines, 3D printers, robotics, and various custom automation systems where accuracy and durability are paramount.

Manufacturing Processes and Procedures

The manufacturing of the SK Series Shaft Support is a precision-focused process designed to ensure high reliability and dimensional accuracy:

Material Selection: The process begins with selecting high-quality aluminum alloy. This material is chosen for its superior combination of excellent machinability, high strength, and lightweight properties.

Precision Machining: The support is manufactured through precision-machining from a solid block of aluminum. Key machining operations include:

Milling: Achieving the precise outer dimensions and the characteristic block shape.

Bore Preparation: The central bore is precisely drilled and honed to an exact inner diameter with a tight tolerance. This is critical for ensuring a perfect, non-binding fit with the linear shaft.

Mounting Holes: Drilling and counter-boring the mounting holes for secure, flush installation.

Clamping Mechanism: Carefully cutting the clamping slit and tapping the corresponding hole for the locking screw.

Finishing: The support undergoes a finishing process, often anodizing. Anodizing is used to enhance the surface hardness, increase wear resistance, and provide excellent, long-lasting corrosion resistance.

Quality Control: Each support block undergoes a rigorous final inspection. Critical dimensions, particularly the bore diameter and the precise positioning of the mounting holes, are verified to ensure the support meets all strict quality and accuracy standards before being packaged.
