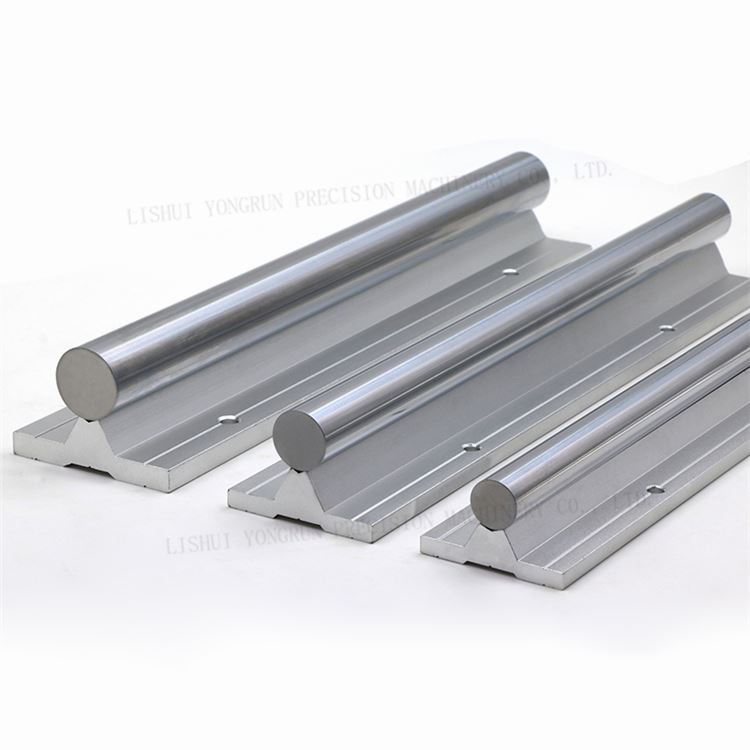

TBR30 Linear Rail

TBR25 Linear Rail

Company Advantage

As a direct manufacturer, we provide goods directly from the source, eliminating intermediaries. This streamlined approach allows us to offer more competitive pricing without compromising on quality, ensuring you receive the best possible value.

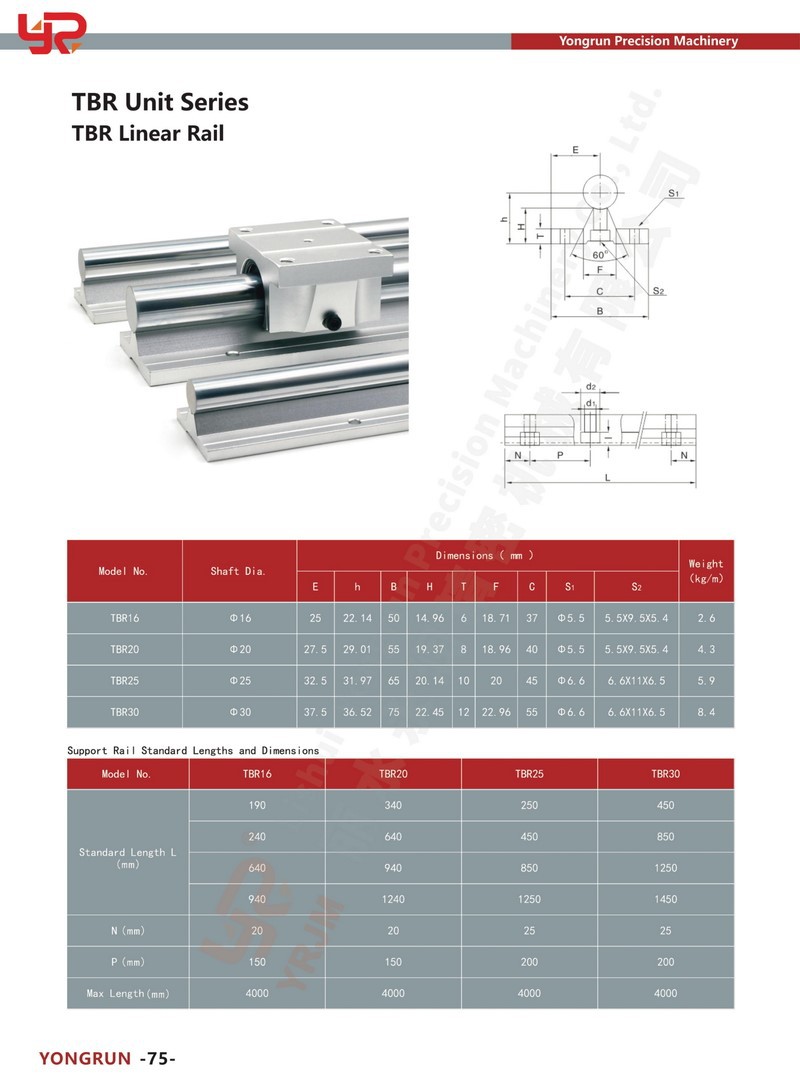

Performance Characteristics of TBR Linear Rails

TBR linear rails are engineered to provide enhanced performance, particularly in applications demanding high strength and stability. Their key characteristics include:

Higher Load Capacity: TBR rails offer a significantly higher load-bearing capability. This is a direct result of their robust construction, which includes a solid aluminum base and strong flanged blocks.

Flanged Blocks: The slider blocks are designed with an integrated flange. This feature provides a larger mounting surface area, which in turn increases the overall rigidity and stability of the assembly.

Solid Base: Unlike many SBR rails, the base of a TBR rail is a solid aluminum support. This contributes directly to its increased strength and stability, making it less prone to deflection under load.

Enhanced Rigidity: The cumulative effect of the solid base, flanged slider, and overall robust construction gives TBR rails greater rigidity. This makes them an ideal choice for more demanding applications where precision under load is critical.

Versatile Mounting Options: The design of TBR blocks can offer more versatile installation possibilities. For example, some may feature additional slots that allow for clamp-on adjustments, in addition to their standard top-down or bottom-up mounting, providing greater flexibility during setup.
