TBR25 Linear Rail

TBR25 Linear Rail

Features

1. Model: TBR25 linear rail, shaft diameter25mm
2. Type: Flange type
3. Application: Ideal as a replacement part for 3D printers and other machinery.
4. Delivery: Please allow 5-7 business days for delivery.
5. Packaging: a.Plastic bag with box case or wooden case.

b. According to our customer's request.

Product Details

While TBR and SBR linear rails are both designed for smooth, cost-effective linear motion, they have distinct differences that make them suitable for different applications.

1. Slider Shape and Size

The most noticeable difference is the design of the slider block:
SBR: Features a quadrilateral, or square-shaped, slider.

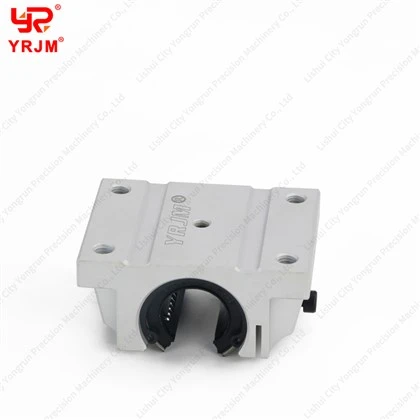

TBR: Employs a flange-type slider.This flange is a flat extension that increases the mounting stability and strength.The mounting threaded holes on a TBR slider are also "through" holes, passing completely through the flange.

2. Combined Height and Interchangeability

The overall height of the rail and slider combination differs between the two types:

Different Center Heights: The center height of the SBR rail and slider is different from that of the TBR combination.

Interchangeability: Despite the height difference, the sliders and the guide rails of both systems are generally considered interchangeable.This provides a degree of flexibility in system design and maintenance.

3. Cost

There is a price difference between the two series:

TBR is typically more expensive than SBR.This is often attributed to the more complex design of the flanged slider and potentially higher quality materials.The TBR's solid aluminum base, compared to the SBR's often hollow base, also contributes to the cost.

4. Mechanical Properties and Applications

While their core function is similar, their design differences lead to distinct application advantages:

Force Performance: There is essentially no significant difference in their fundamental force performance or load capacities when comparing equivalent sizes.Both are suitable for low to medium loads.

Mounting Flexibility (Key Difference): The slider design directly impacts how they can be installed.

TBR: The flanged block with through-holes allows for versatile mounting, including from the top-down or from the bottom-up.

SBR: Its quadrilateral design generally restricts installation to top-down mounting only.
