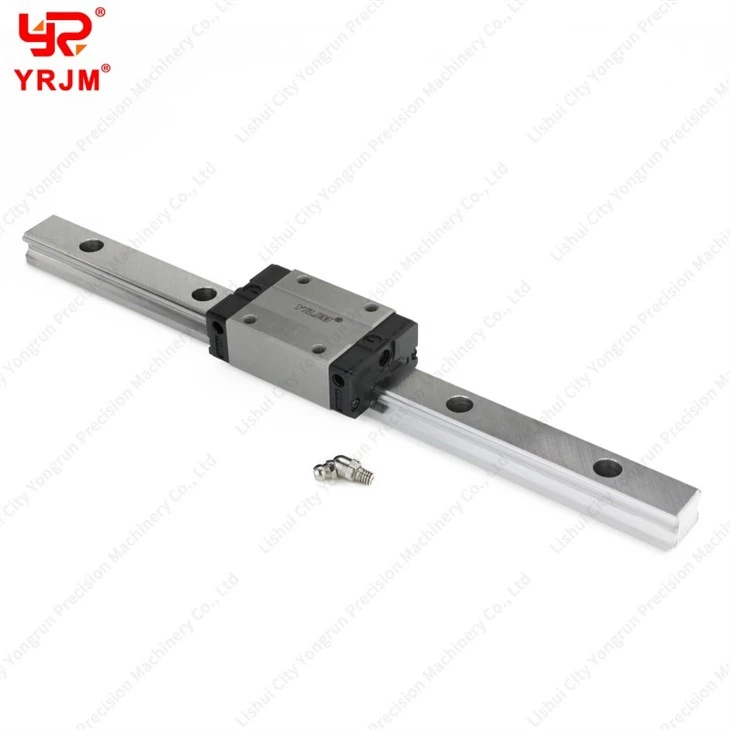

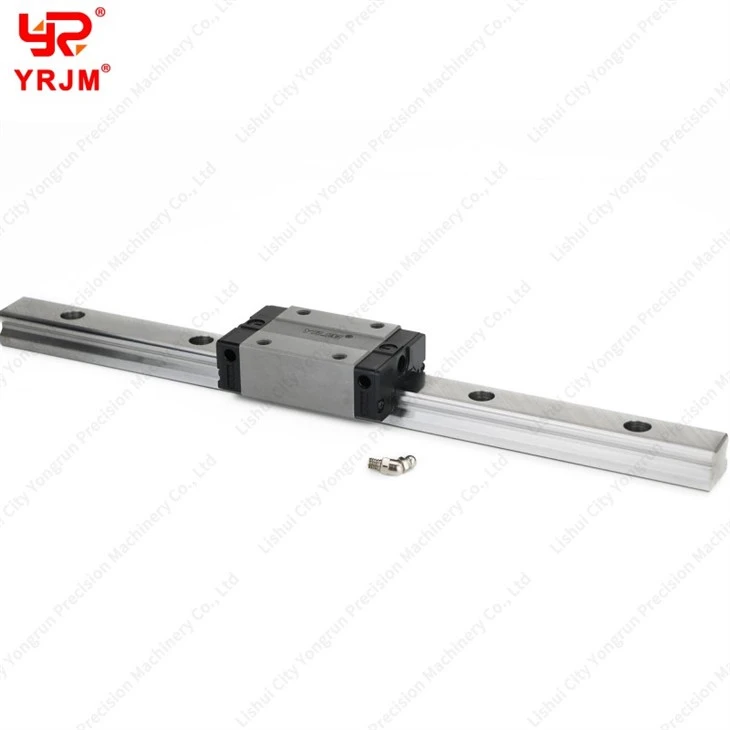

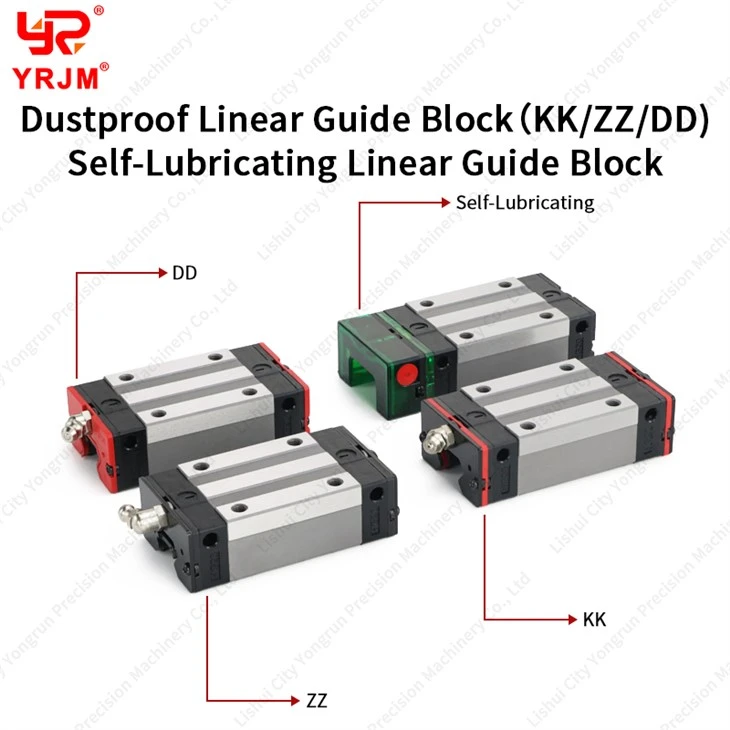

EGH15CA Linear Guide

EGH15CA Linear Guide

Product Description

The EGH15CA is a precision-engineered, low-profile linear guide block belonging to the EG Series (Low-Profile Ball Type). Engineered for space-constrained, high-speed automated systems, the EG Series features a lower assembly height and more compact overall dimensions compared to standard-height linear guides.

Enhanced Stability & Standard Long-Body Geometry
The "CA" (Heavy Load) designation identifies this as the standard long-body model within the 15mm class. By elongating the body length to 56.8 mm, this block accommodates a greater volume of recirculating balls than the shortened "SA" version. It incorporates four threaded mounting holes arranged in a square pattern, providing excellent moment-load stability. This carriage is commonly deployed in semiconductor handling, automated testing machinery, and precision medical axes.

Product Features & Engineering Advantages
1. Low-Profile Compact Design: Features a streamlined total assembly height of 24 mm, enabling installation in space-restricted machinery and compact automation enclosures.
2. 4-Hole Square Mounting Footprint: The 56.8 mm block length provides a stable mounting surface equipped with four top-down threaded holes spaced in a standard 26 mm x 26 mm pattern.
3. Four-Way Equal Load Rating: Utilizes four rows of recirculating steel balls configured at a 45-degree contact angle. This geometry provides equal load-carrying capacity across radial, reverse-radial, and lateral orientations.

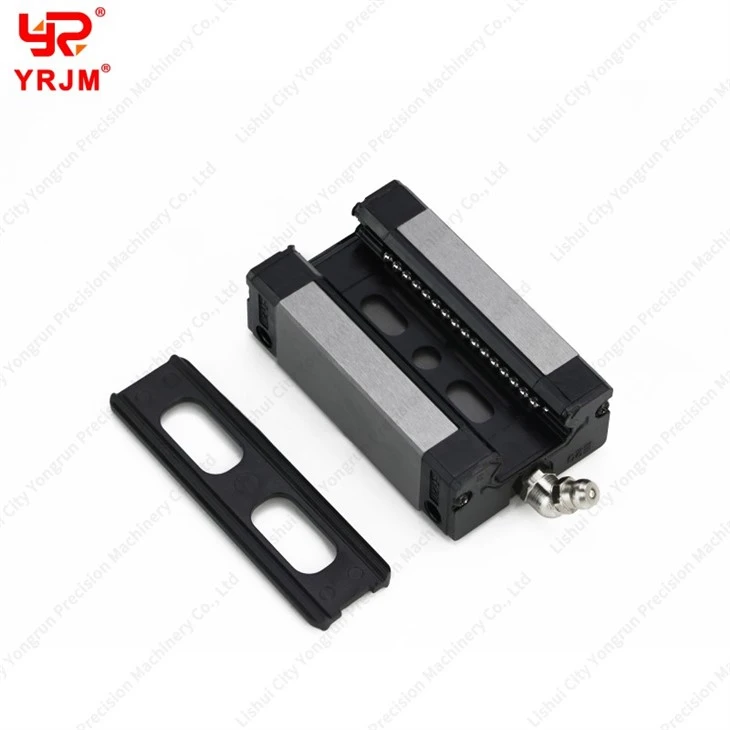

4. Integrated Ball Retainers: Built-in metal wire retainers keep the steel balls securely inside the block body, preventing ball loss when the carriage is removed from the linear rail.
5. Standardized Load Ratings: Rated to manage a basic dynamic load capacity (C) of 7.83 kN (7,830 N) and a basic static load capacity (C0) of 16.19 kN (16,190 N).
