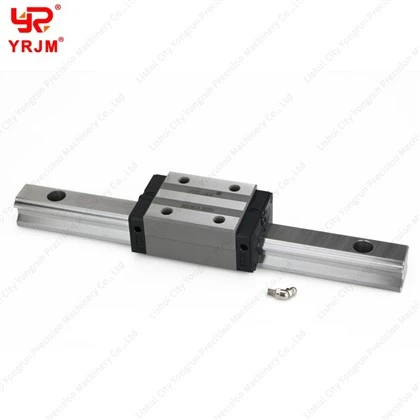

The EGW20CA is a low-profile flanged linear guide carriage from the EG Series (Low-Profile Ball Type). Engineered for space-constrained, high-speed automated systems, the EG Series features a lower assembly height and more compact overall dimensions compared to standard-height linear guides.

Standard Heavy-Load Geometry & Stability
As the standard heavy-load model in the 20mm class, the carriage features a total body length of 69.1 mm. This elongated profile accommodates four rows of recirculating steel balls across an extended contact zone, providing enhanced load-bearing capacity and moment stability compared to shortened "SA" models. Its wide flanged profile measures 59 mm in width, delivering a broad structural footprint designed to support medium-to-heavy industrial payloads with minimal deflection.


Model Designation Breakdown
EG: Low-Profile Ball-Type Series.
W: Wide Flange Type (features lateral wings extending from the block body).
20: 20 mm nominal rail width (designed for EGR20 rails).
C: Heavy Load / Standard Length carriage body.
A: Top-Down Mounting via counterbored holes on the flanges.


Mounting Interface
The flanged body incorporates four counterbored mounting holes arranged in a standardized 49 mm × 32 mm pattern, facilitating secure, straightforward top-down fastening directly into the carriage plate.

Where Low-Profile Stability Makes the Difference
1.Compact High-Speed Robotics: The low 28 mm assembly height lowers your system's center of gravity, allowing your pick-and-place arms to move faster with reduced inertial tipping.
2.Vibration-Free 3D Printing: The wide flanged footprint acts as a solid base for printheads, eliminating carriage shake to produce cleaner, more consistent surface layers.
3.Clean, Smooth Lab Automation: Engineered for delicate movements, the low-friction ball tracks deliver smooth, non-pulsating travel for automated pipetting and medical scanning.
4.High-Throughput Electronics Assembly: Keep your SMT lines running efficiently with a guide block built to withstand continuous, high-frequency cycling without losing positioning accuracy.
