ZZ Dustproof Linear Guide Block

ZZ Dustproof Linear Guide Block

Product Description

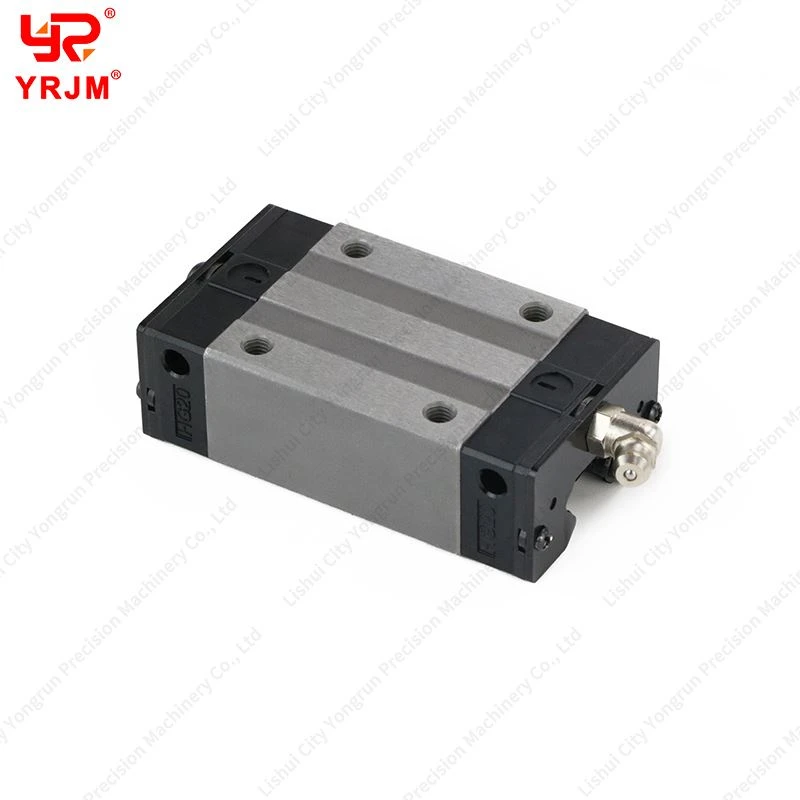

The ZZ-Specification Linear Guide Block is a linear motion carriage engineered with an integrated, multi-tier contamination protection system. In industrial linear guide nomenclature, the "ZZ" designation specifies a carriage equipped with outer metallic scraper plates and end seals at both ends, along with internal bottom seals.

Multi-Tier Environmental Defense
Designed for harsh, debris-heavy production environments, the ZZ configuration creates an armored barrier. By positioning rigid metal scrapers directly ahead of the elastomeric end seals, the assembly deflects hot metal chips, coarse swarf, wood shavings, and weld spatter before they can contact or compromise the softer end seals. This preserves the primary sealing lips, protects internal recirculating rolling elements from abrasive contamination, minimizes lubricant washout, and supports consistent tracking accuracy across extended maintenance intervals.

Cross-Series Compatibility
Fully compatible with standard HG (ball-type), EG (low-profile), and RG (roller-type) series profile rails.

Operating Principles: Three-Stage Sequential Sealing Architecture
The ZZ-specification linear guide block utilizes a three-stage sequential defense mechanism to maintain bearing integrity during carriage travel:

• Stage 1 (External Metallic Scraper): As the carriage translates along the rail, the exterior metal scraper plate physically deflects coarse debris-such as hot metal chips, wood fibers, and weld spatter-before it can contact the softer elastomer seals.
• Stage 2 (Elastomeric End Seal): Positioned directly behind the metallic scraper, the flexible rubber wiper conforms closely to the rail profile to clear residual fine dust, coolant film, and airborne micro-particulates from the raceway surfaces.
• Stage 3 (Bottom & Internal Seals): Full-length longitudinal bottom seals and internal lips block particulate ingress from beneath the carriage and around the rail mounting bolt holes, protecting the recirculating rolling element tracks from contamination.
