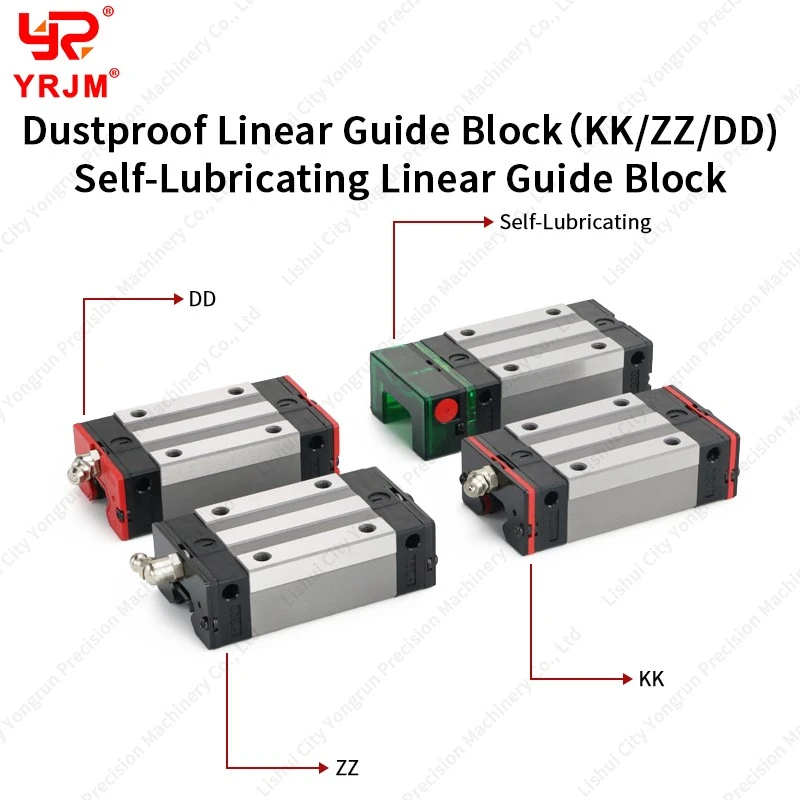

The defining characteristic of the ZZ configuration is its two-tier defense mechanism, integrating a rigid metal scraper plate in front of an inner elastomeric end seal.
The Hardware: The metal scraper is a precision-stamped plate manufactured from stainless steel (typically SUS304 or SUS430). It is contoured to closely match the cross-sectional profile and raceways of the linear rail with minimal clearance.
The Scraping Action: Positioned as the outermost component on both ends of the carriage block, the scraper serves as a physical deflector. As the carriage traverses the rail, the metal plate deflects coarse metal turnings, hot chips, and stubborn particulates before they reach the inner seals.
The Engineering Result: The underlying end seal is protected from direct impact, puncture, and thermal degradation. This allows the elastomeric seal to reliably perform its primary functions-retaining lubricating grease and wiping away liquid coolant-without premature wear.
