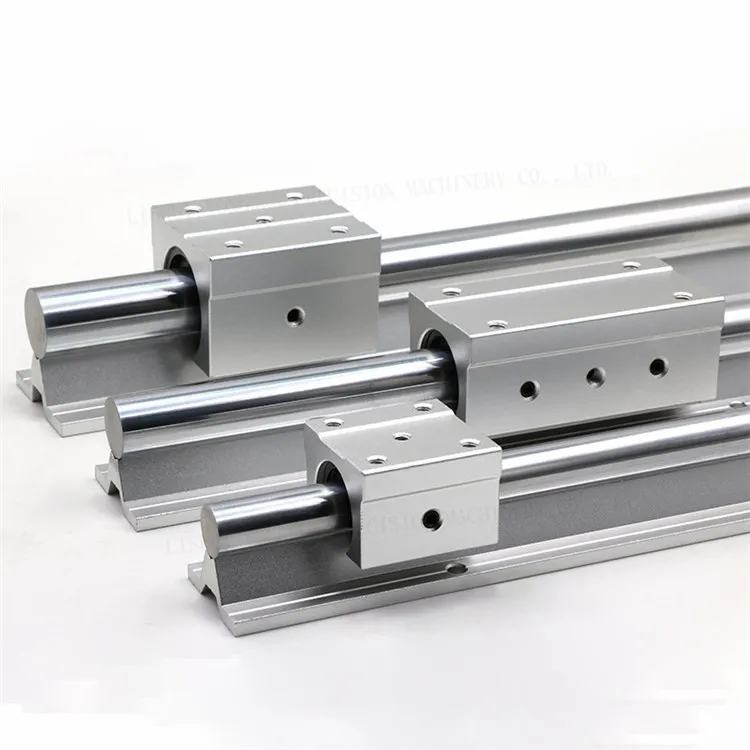

SBR series guide rails, which feature an aluminum-supported round shaft and open-type ball bushing blocks (SBR/TBR), are common in entry-level automation, woodworking, and moderate-load applications. Their maintenance focuses heavily on keeping the round shaft clean and the ball bushings well-lubricated.
I. Daily / Per-Shift Maintenance (The Basics)
These quick checks prevent immediate damage and excessive wear.
Clean the Shafts:
- Wipe down the exposed, chrome-plated shaft and the aluminum support rail using a clean, lint-free cloth.
- Ensure all dust, wood shavings, and cutting debris are removed, as the open ball bushings are highly susceptible to contamination.
Inspect for Damage:
- Look for any scoring, rust, or deep scratches on the chrome-plated shaft surface. Damage here will quickly degrade the ball bushings.
Check the Lubricant Film:
- Verify that the shaft has a light, consistent film of oil. If the shaft appears dry or has patchy lubrication, it requires immediate attention.
II. Weekly / Periodic Maintenance (The Deep Clean & Lube)
This routine focuses on the integrity of the motion block and re-lubrication.
Thorough Cleaning:
- Move the carriage blocks to one end of the rail.
- Clean the newly exposed shaft sections.
Wiper/Seal Check:
- Inspect the rubber wipers at the ends of the SBR block. Ensure they are seated correctly and are not cracked or worn, as they are the only barrier against contaminants.
Re-Lubrication (Crucial Step):
- Method: These guides typically use light-to-medium viscosity machine oil or a specified lithium grease. Consult your manual.
- Application: Apply a few drops of oil or a small amount of grease directly onto the shaft in front of the carriage blocks.
- Distribution: Run the carriage back and forth across the full stroke several times to distribute the lubricant evenly and work it into the ball bushing circulations.
Fastener Check:
- Check all mounting bolts and any screws securing the end blocks and motor/coupling to ensure they are at the correct torque.
III. Annual / Major Maintenance (System Check)
This check verifies the system's structural integrity.
Shaft Alignment Check:
- If the machine's accuracy has dropped, check the straightness and parallelism of the support rail to the base. SBR rails can flex if the mounting base is not rigid.
Bushings Inspection (Play/Slop Check):
- Lock the rail at a specific point. Try to gently rock the carriage block up and down or side-to-side.
- Result: Some minimal clearance is inherent to SBR systems, but excessive, noticeable "slop" indicates the ball bushings are worn out and require replacement.
Component Replacement:
- If the chrome shaft is severely pitted, or if the bushings show excessive play, the individual SBR block or the entire rail assembly must be replaced to restore full precision.
Note on Lubrication: SBR linear bearings are open-style and rely heavily on a constant, thin film of lubricant. Operating them dry for even a short time can cause immediate and irreversible damage to the recirculating balls and shaft. Always prioritize lubrication for SBR rails.
