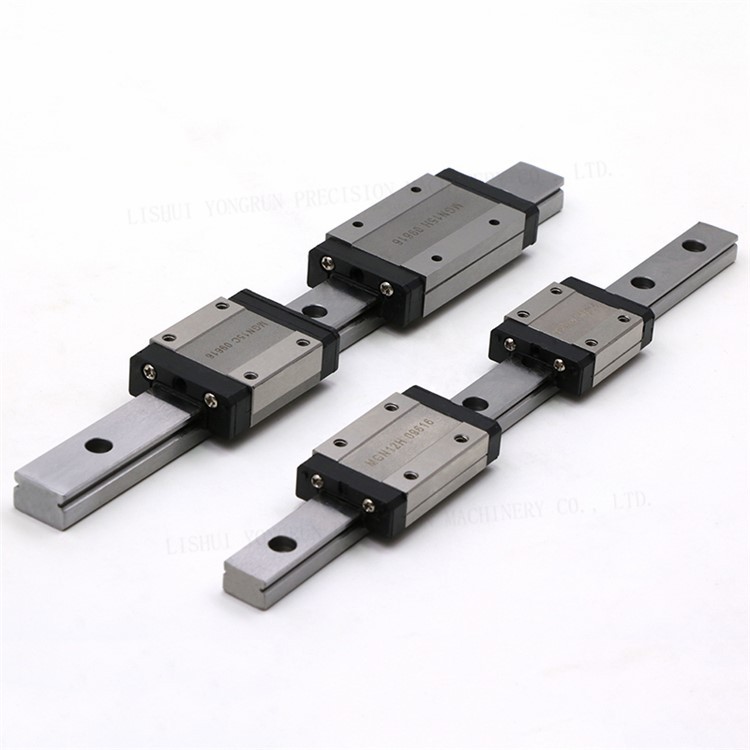

The choice between the MGN and MGW series of miniature linear guide rails comes down to a fundamental trade-off between compactness/low profile and load capacity/rigidity. Both series are miniature guides (typically size 5 to 15) and use recirculating balls, but their differing geometries suit them for distinct applications.
Here is a breakdown of the key differences to help you select the right one.
| Feature | MGN Series ("Normal" Width) | MGW Series ("Wide" Width) |
| Block & Rail Width | Narrow profile | Wide profile (W stands for "Wide") |
| Rigidity & Moments | Good, but limited by width | Significantly Higher Moment Load Capacity |
| Load Capacity | Standard load capacity for miniature rails | Higher overall load capacity |
| Mounting | Low profile, often requires mounting from the bottom. | Wider mounting surface, better stability. |
| Space Suitability | Ideal for extremely limited space and minimal height. | Used where space is constrained but rigidity is paramount. |
| Typical Use | 3D printers, CNC lasers, pick-and-place, electronic assembly, instrumentation. | Medical equipment, robotics, measuring equipment, applications requiring more stability. |
When to Choose the MGN Series
The MGN series is the choice for applications where the primary constraint is the physical space envelope.
You need the lowest possible profile: The MGN's narrow block and rail allow it to fit into highly compact designs or when a low center of gravity is required.
Moment loads are minimal: If the weight of the moving stage is low and well-centered over the rail, the MGN's reduced moment capacity is acceptable.
High speed is a priority: MGN guides are known for low displacement resistance and are well-suited for applications with high travel speeds and lightweight loads, such as in 3D printers or laser systems.
When to Choose the MGW Series
The MGW series is designed to handle greater forces and provide higher system rigidity, leveraging its wider base.
Moment loads are significant: The "W" (wide) design gives the block a much larger base, which dramatically increases its ability to absorb Pitch (tipping along the rail) and Roll (tipping across the rail) moments.
You need high rigidity and stability: The wider profile provides higher overall rigidity, which is essential for precision processes that involve external forces or high inertia (e.g., medical devices that must remain stable).
Load capacity needs to be maximized: The MGW offers a higher load capacity for the same size class compared to the MGN, making it suitable for applications that move slightly heavier components.
