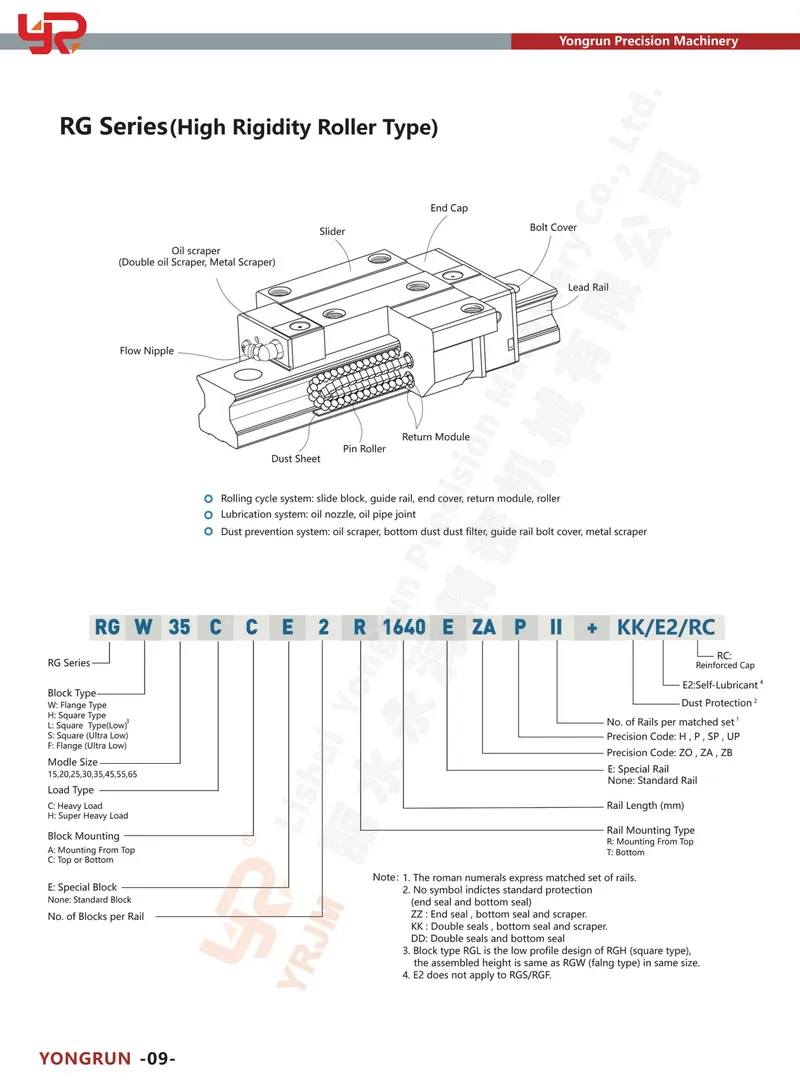

How the RG Series Roller Guide Operates?
1. The Core Principle: Line Contact
The key to the RG series' operation is the geometry of the rolling element's contact with the raceway:
- Standard Ball Guides: Utilize spherical balls that make point contact (which deforms to elliptical contact under load).
- RG Roller Guides: Utilize precision-ground cylindrical rollers that make line contact with the flat raceway surface on the rail.
Functional Result: By distributing the load across a straight line rather than a small point/ellipse, the roller guide achieves the following:
- Significantly Higher Load Capacity: The stress is spread over a much larger area, allowing the system to bear much heavier static and dynamic loads.
- Superior Rigidity (Stiffness): The line contact provides much greater resistance to elastic deformation under load, making the connection between the block and the rail extremely stiff-a non-negotiable requirement for high-precision machine tools.
2. Recirculation for Unlimited Stroke
Like all modern linear guides, the RG series uses a recirculation mechanism:
- Load Bearing: As the block moves along the rail, the rollers in the load zone (the lower contact side) rotate, carrying the load and moving the carriage.
- Off-Load Return: Once a roller reaches the end of the load-bearing path, internal end caps guide it out of the raceway and into a non-load-bearing return channel within the block.
- Continuous Cycle: The roller moves freely through the return channel and is re-introduced to the load zone at the front of the block, enabling smooth, continuous, and unlimited linear travel.
3. Preload and Multi-Directional Load
- Preload: The RG block and rail are precisely manufactured to be oversized relative to each other. When the block is installed, the rollers are held under a slight, internal compressive force (Preload). This eliminates all internal clearance (backlash), which is the source of the system's exceptional rigidity and accuracy.
- Multi-Directional Load: The raceway profile and roller arrangement are designed to carry loads in all four directions (up, down, and side-to-side) as well as resist all three types of moment loads (Pitch, Roll, and Yaw), making the guide highly versatile.
In essence, the RG series operates by replacing point-contact balls with line-contact rollers, fundamentally maximizing the system's ability to resist high forces and maintain dimensional stability.
