Product Description

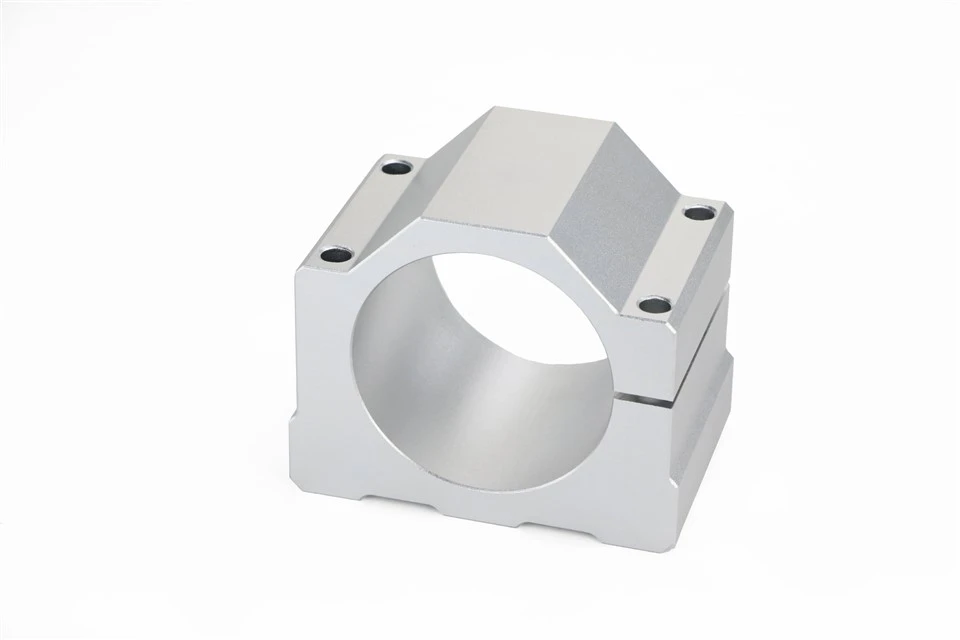

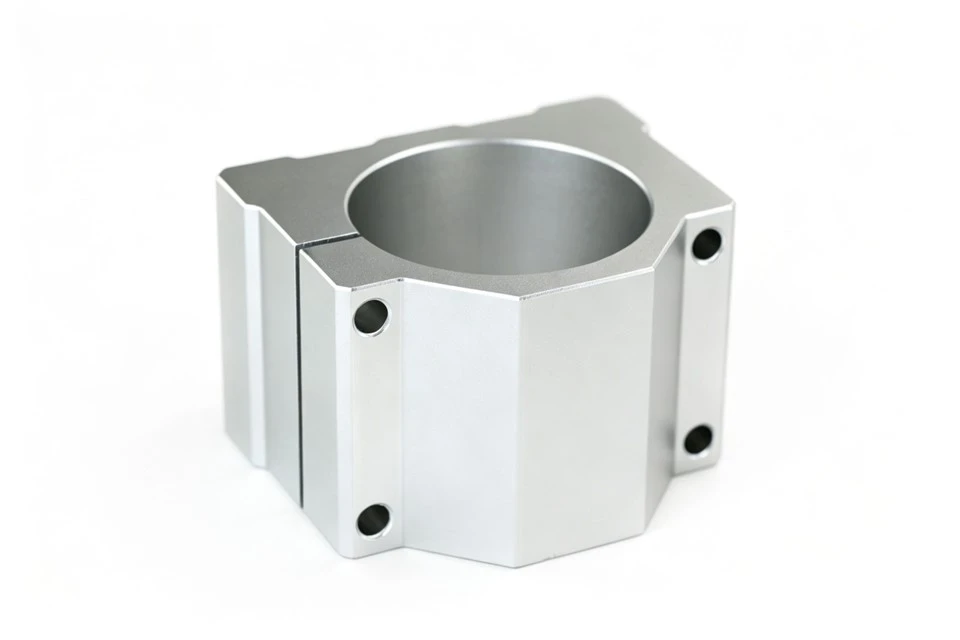

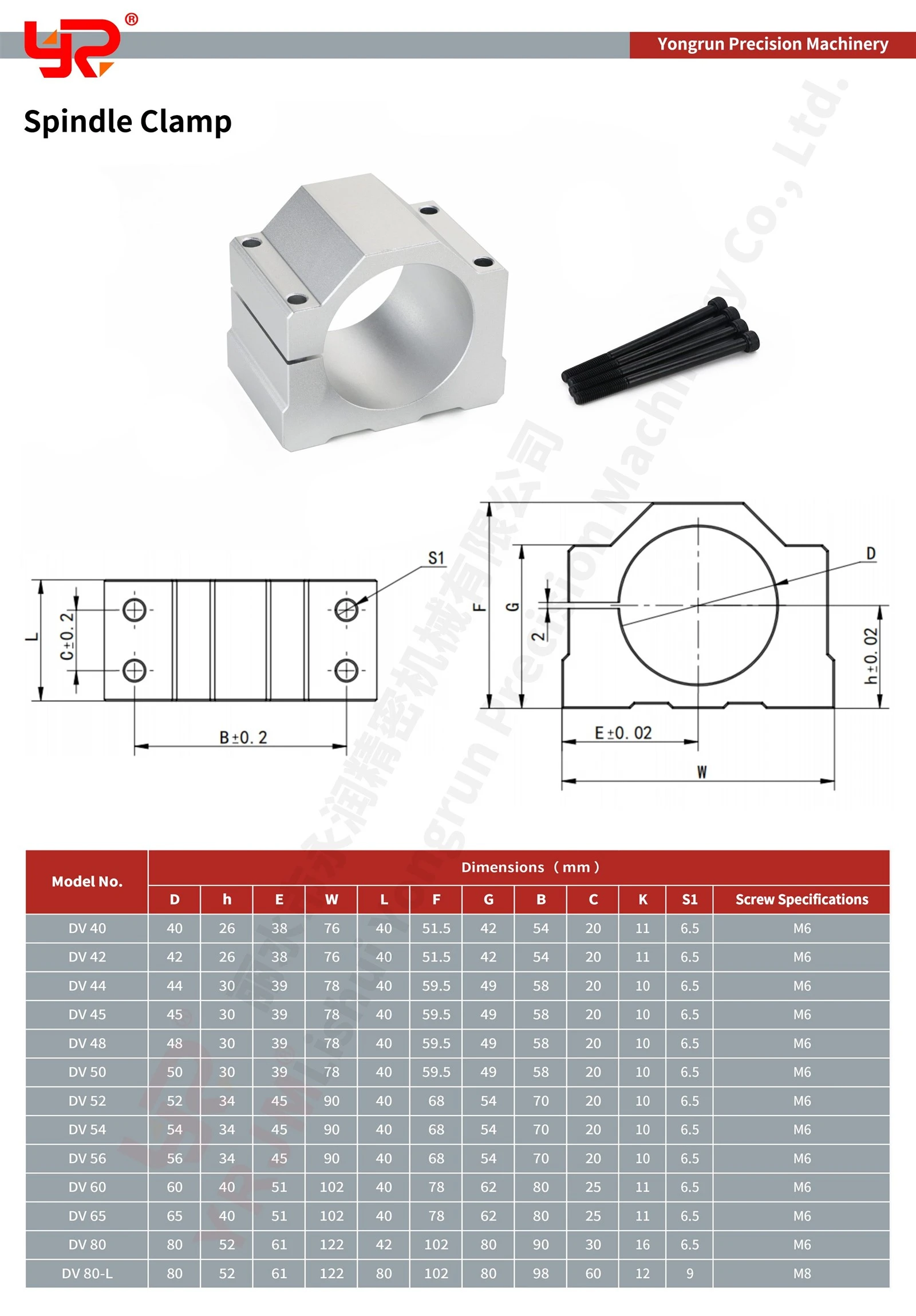

This high-precision, heavy-duty mounting bracket is engineered to securely mount CNC spindle motors to the Z-axis carriage. It features a premium cast or extruded aluminum housing that provides highly effective vibration damping and rapid thermal dissipation. Equipped with a split-ring clamp design, it provides a secure, slip-resistant, and uniform circumferential grip that protects the spindle's outer casing from distortion. The bracket is compatible with standard 56mm, 60mm, 65mm, and 80mm spindle diameters.

Product Features & Engineering Advantages
1.Precision-Bored Diameters: Machined to tight tolerances conforming to standard ISO H7 fits to support a secure, uniform fit around standard round spindle motor barrels.
2.High-Strength Aluminum Construction: Fabricated from cast aluminum or premium extruded aluminum alloy, providing an advantageous strength-to-weight ratio and acting as an auxiliary heat sink to assist with motor cooling.
3.Optimized Clamping Surface: Features an extended vertical clamping height to maximize surface area contact and minimize the risk of axial slippage during heavy plunging cuts.
4.Flat Machined Reference Backing: Engineered with a ground or milled flat mounting face on the back, incorporating standard pre-drilled and tapped bolt hole patterns for secure mounting directly to Z-axis slide plates.
5.Corrosion-Resistant Surface Finish: Available with a fine sandblasted finish or a hard-anodized protective layer to resist wear, oxidation, and exposure to industrial cutting fluids.
