1. Monolithic Coaxial Alignment (Concentricity)
The core engineering advantage of the DB Series lies in its single-setup manufacturing process, which guarantees exceptional geometric accuracy.
Integrated Machining: The motor pilot register, the coupling chamber, and the precision bearing support bore are all machined within a single, continuous CNC setup.
The Result: Highly precise coaxial alignment. This process ensures that the motor shaft, the coupling, the preloaded bearings, and the ball screw are held strictly on a single axis. Because the housing is machined from a single solid block, this alignment is mechanically fixed, minimizing the risk of shifting or vibrating loose during high-dynamic operations.
2. High Rigidity & Structural Integrity

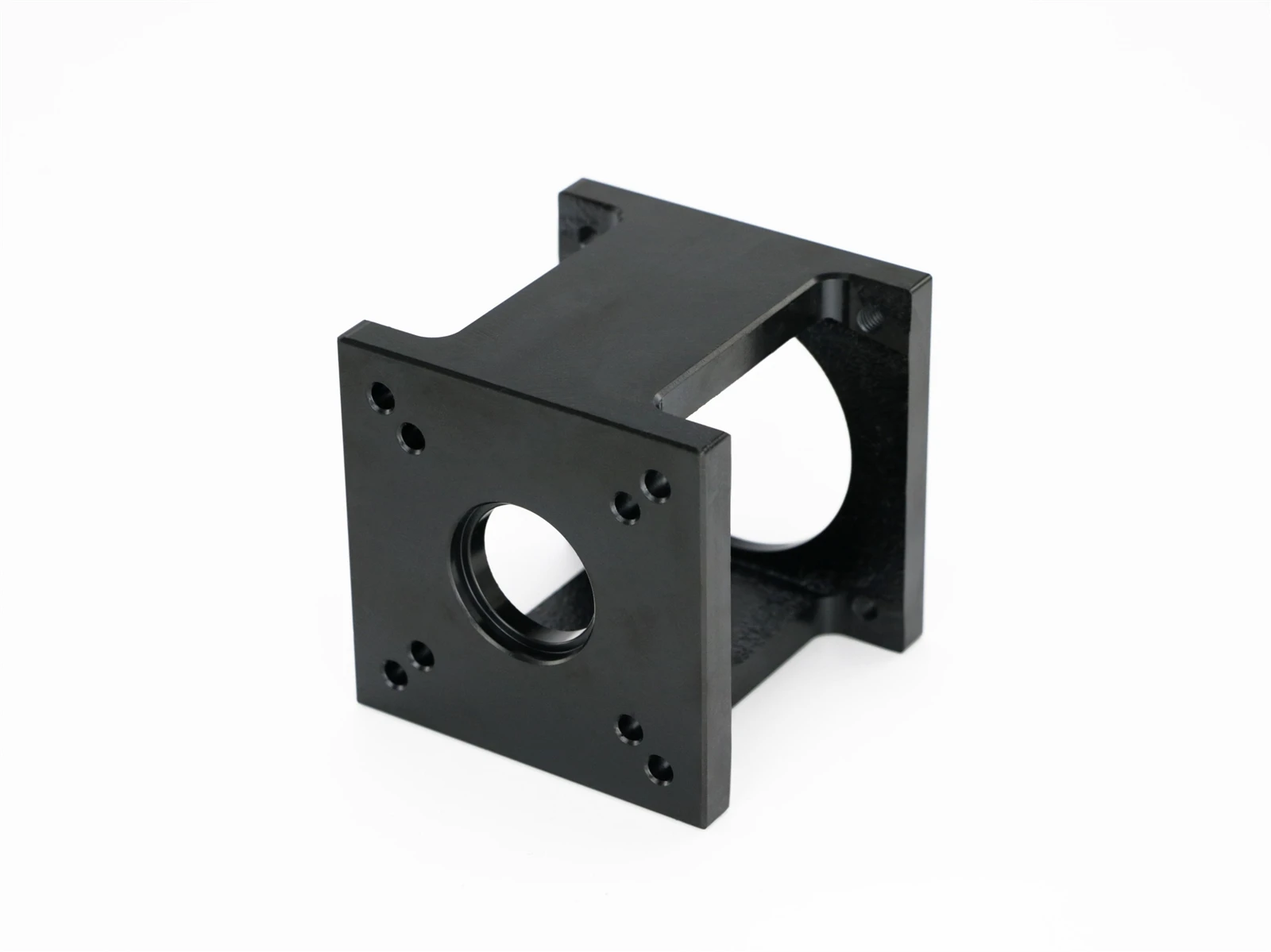

By eliminating the bolted joints of traditional multi-piece assemblies, the monolithic DB bracket offers outstanding structural integrity.
Monolithic Construction: Machined from a single solid block of high-grade S45C carbon steel or aluminum alloy.
The Benefit: Bolted joints can flex or undergo minor slippage under high axial acceleration or sudden emergency stops. The monolithic DB bracket transmits the motor's torque and the thrust of the screw with minimal structural deflection, ensuring a highly responsive positioning and excellent torsional stiffness.
3. Compact, Low-Profile Footprint
Consolidating the bearing seat and the motor flange into a single housing allows for a highly optimized, compact design.
The Benefit: The overall envelope length of the actuator assembly is significantly reduced. This space-saving design minimizes the non-travel zone of the linear stage, which is crucial for compact medical devices, semiconductor handlers, and small-format CNC machines.
